NMB 15038PB-B3L-EP-00 AC Axial Fan – 230V, 35W
Xylem Article 31690 | Legacy P/N 5915PC-23T-B30-A00
Manufacturer: NMB Technologies Corporation
- 230 V AC operation
- 35 W input power
- 150 × 172 × 38 mm frame
- Ball bearing
- Thermal protection
- 50 / 60 Hz operation
- 2700 RPM at 50 Hz
- 3200 RPM at 60 Hz
- 800 g mass
- AC axial fan design
Price
Enquire About Price
Priced on application · freight quoted with order
Talk to an engineer
Send us the part number from your existing fan or your equipment details and we will help confirm the right replacement.
Product description

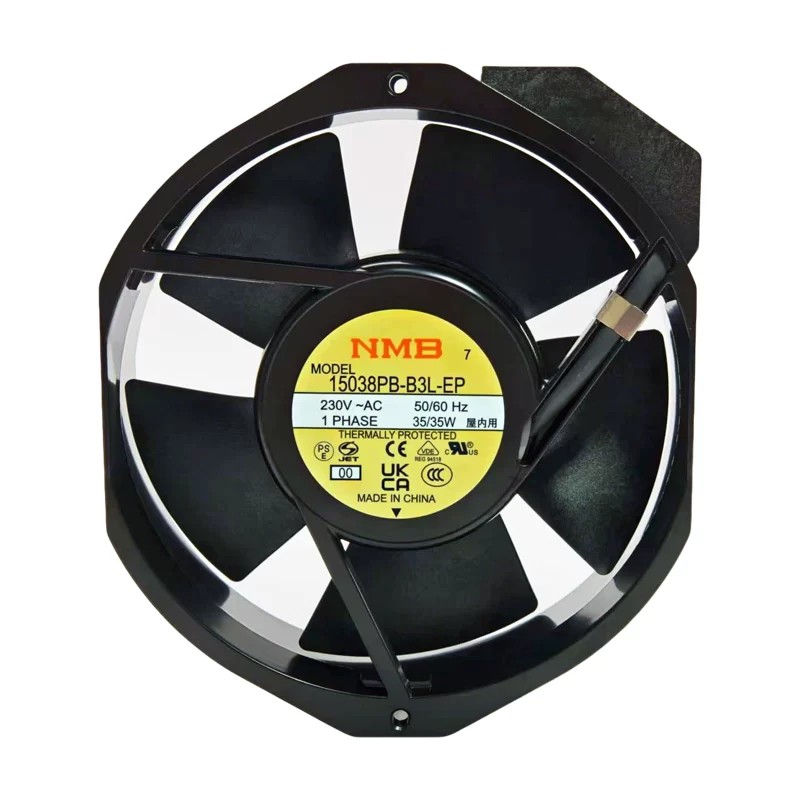

NMB 15038PB-B3L-EP-00 AC Axial Fan
The NMB 15038PB-B3L-EP-00 is an AC axial fan designed for equipment cooling and airflow applications. The fan has a 150 × 172 × 38 mm frame size, 230 V AC nominal voltage, 35 W input power and ball bearing construction.
The product is identified by NMB part number 15038PB-B3L-EP-00 and is the replacement/current part number for legacy NMB part number 5915PC-23T-B30-A00. This unit is also identified by Xylem as Article No. 31690.
The 50 Hz and 60 Hz operating variants have different current, airflow, fan speed and noise values. These are listed separately in the technical specifications below.
Technical data
Technical Specifications
| Product type | AC Axial Fan |
|---|---|
| Manufacturer | NMB Technologies Corporation |
| Current NMB Part Number | 15038PB-B3L-EP-00 |
| Legacy NMB Part Number | 5915PC-23T-B30-A00 |
| Xylem Article No. | 31690 |
| Xylem Prefix | 760000031690 |
| Nominal voltage | 230 V AC |
| Input power | 35 W |
| Frame width | 150 mm |
| Frame height | 172 mm |
| Frame depth | 38 mm |
| Bearing type | Ball Bearing |
| Starting voltage | 145 V |
| Mass | 800 g |
50 Hz and 60 Hz Performance
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Current | 0.18 A | 0.19 A |
| Fan speed | 2700 RPM | 3200 RPM |
| Maximum air flow | 176.5 CFM · 5 m³/min | 212 CFM · 6 m³/min |
| Maximum static pressure | 156.8 Pa · 0.629 in H₂O | 215.6 Pa · 0.865 in H₂O |
| Noise | 52 dB | 56 dB |
References
Product Identification
NMB
15038PB-B3L-EP-00
Legacy NMB
5915PC-23T-B30-A00
Xylem Article
31690
Xylem Prefix
760000031690
Applications
- AC axial fan for equipment cooling and ventilation.
- Suitable for applications requiring forced airflow within industrial equipment.
Compatibility
To confirm this replacement fan suits your equipment, send us the part number on your existing fan (15038PB-B3L-EP-00 or 5915PC-23T-B30-A00), the Xylem article number or your equipment details.
