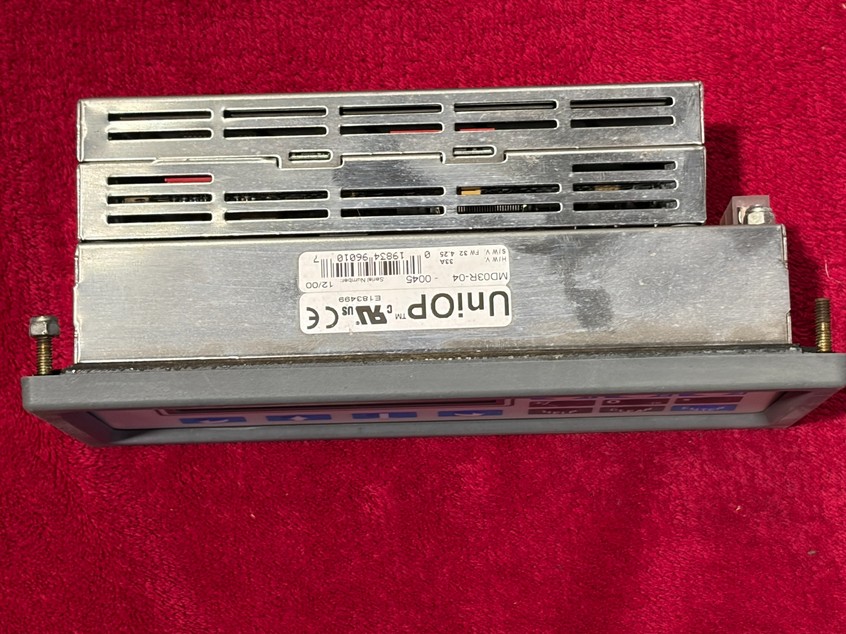

UniOP HMI rear and side view. Label indicates model MD03R-04, 24 VDC.

Operator interface / HMISingle unit

UniOP operator interface / HMI, MD03R-04, 24 VDC

Key details

Manufacturer: UniOP (fitted to Trailigaz MZC 2008 generator)
Reference number: MD03R-04
Quantity available: 1
Product type: Operator interface / HMI
Model / type: MD03R-04
Availability: Single unit

Price

Price on Application

Request a Quote

Description

UniOP operator interface panel, model MD03R-04, 24 VDC, removed from a Trailigaz OZO CONCEPT MZC 2008 ozone generator. Front and rear views are shown so the panel cut-out, keypad layout and rear label can be compared with the installed terminal. Panels of this generation are no longer manufactured and are a common cause of extended downtime on older ozone plant.

Condition

Used OEM component removed from a complete Trailigaz ozone generator or CELES OTIS 100 inverter assembly. The item shown in the photographs is the actual type of component available. Cosmetic marks consistent with prior industrial service may be present.

Compatibility

Compatibility must be checked against the customer's existing part number, equipment model, electrical rating and connector arrangement before purchase. Customers should provide photographs of the existing part and the generator or converter nameplate.

Technical specifications

Recorded from the component and its source equipment during dismantling. Where a value was not recorded it is shown as "Not stated" rather than estimated.

Source manufacturer: Trailigaz, France
Source equipment: OZO CONCEPT ozone generator, type MZC 2008
Generator serial number: 00-0169
Converter: CELES OTIS 100, 100 kW
Converter output: 500 V, 314 A, 5 to 10 kHz
Part reference: MD03R-04
Description: UniOP operator interface / HMI
Supply voltage: 24 VDC
Quantity available: 1

Price on Application

Request a quote for this part

Send your details and we will confirm current availability, condition and price, and check compatibility against your installed equipment. Replies come directly from Jonathan Andry, Founder & Principal Engineer.
