WEDECO · AQUACULTURE AND SALTWATER UV DISINFECTION
WEDECO Acton PE
WEDECO Acton PE is a non-corrosive HD-PE UV disinfection reactor for aquaculture, aquaria, saltwater pools and well boats, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

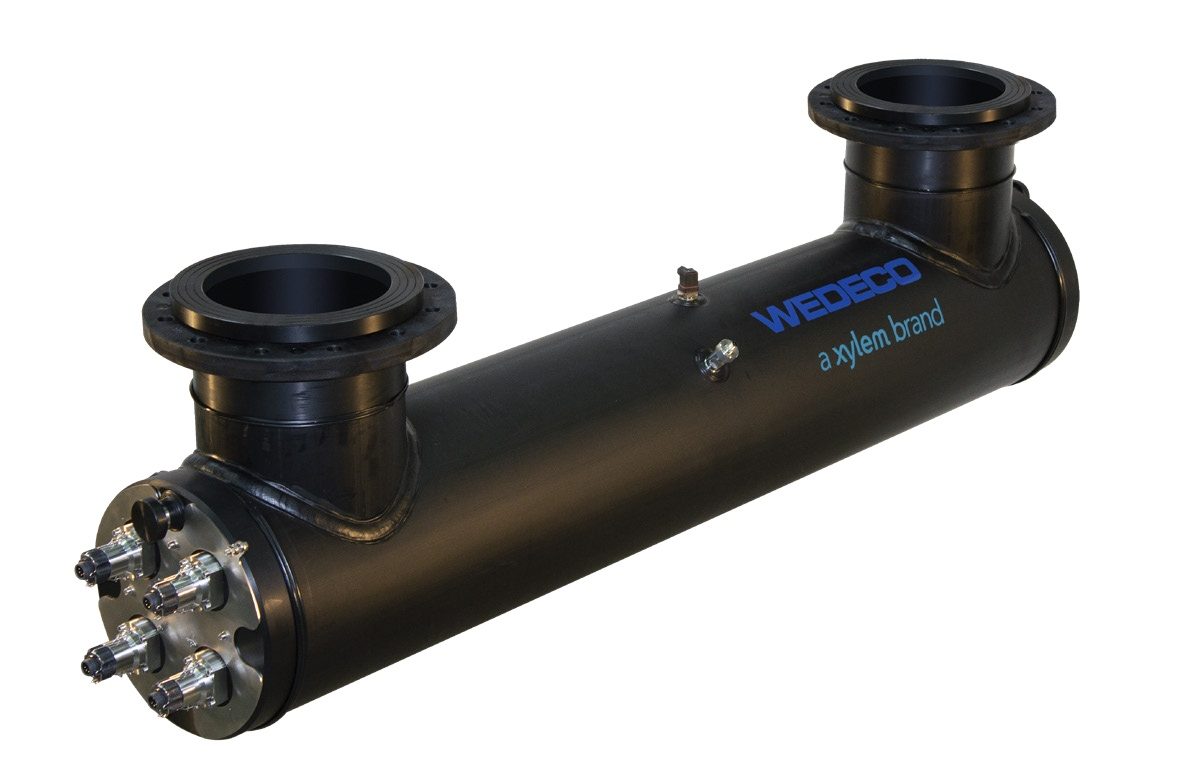

WEDECO Acton PE is a closed UV reactor built from high-density polyethylene (HD-PE, PE100) for saltwater and other water that would attack a metal vessel. On fish farms it treats intake, outflow and recirculation water to keep pathogenic bacteria and viruses under control; it is also used in aquaria, zoos, saltwater thermal pools and well boats. A single reactor handles up to 829 m³/h.
Ozone UV Solutions supplies Acton PE systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Flows up to 829 m³/h in a single reactor, with standardised installation options and flange positions
- Non-corrosive HD-PE (PE100) reactor; design including lamps and quartz sleeves tested for rough conditions and vibration
- Ecoray lamps, 600 W (350 W on Acton 27e PE), with a rated lamp life of 14,000 hours
- OptiDose sensor-driven dose pacing and ÖNORM-compliant UV intensity monitoring
- Tool-free lamp replacement; high power per lamp keeps the lamp count and maintenance low
- EcoTouch controller with graphic touch panel; [bus interface to SCADA] or [PLC]
Typical applications
- Intake, outflow and recirculation water on land-based fish farms
- Well boats
- Public aquaria and zoos
- Saltwater thermal pools, swimming pools and other saltwater applications
Models and specifications
Models: Acton 27e PE, Acton 160e PE, Acton 260e PE, Acton 460e PE, Acton 660e PE
Acton PE models

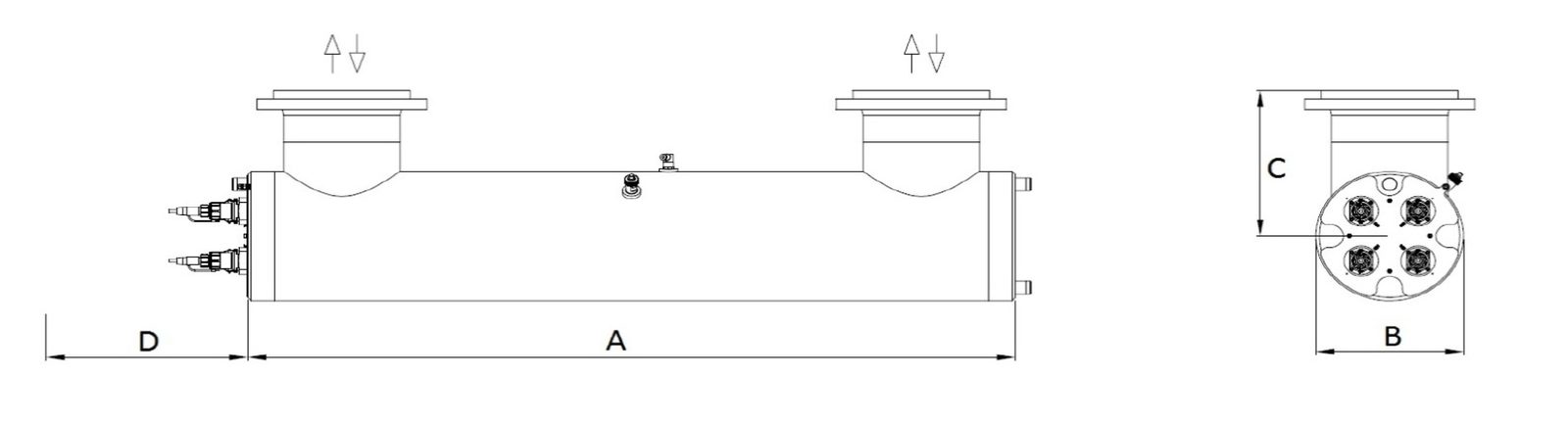

| Model | Max. flow (m³/h)* | UV lamps | Power per lamp | Flange | Dimensions A / B / C / D (mm)** | Power consumption (approx.) |
|---|---|---|---|---|---|---|
| Acton 27e PE | 80 | 1 | 350 W | DN100 | 890 / 355 / 290 / 910 | 0.46 kW |
| Acton 160e PE | 169 | 1 | 600 W | DN150 | 1,580 / 355 / 308 / 1,600 | 0.71 kW |
| Acton 260e PE | 399 | 2 | 600 W | DN250 | 1,580 / 355 / 328 / 1,600 | 1.38 kW |
| Acton 460e PE | 653 | 4 | 600 W | DN300 | 2,078 / 400 / 450 / 2,100 | 2.62 kW |
| Acton 660e PE | 829 | 6 | 600 W | DN350 | 2,100 / 500 / 450 / 2,100 | 3.90 kW |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO Acton PE used for?
Acton PE treats intake, outflow and recirculation water on fish farms, and is also used in aquaria, zoos, saltwater thermal pools and well boats. Its HD-PE (PE100) reactor does not corrode in seawater or fresh water, and a single reactor handles up to 829 m³/h.
Can you supply lamps and spare parts for WEDECO Acton PE systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for Acton PE systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply Acton PE systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service an Acton PE system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
Replaces WEDECO A/B-PE – we also service and supply parts for existing A/B-PE systems
