WEDECO · UV DISINFECTION FOR HIGH-PURITY AND ULTRAPURE WATER
WEDECO PureTube
WEDECO PureTube is an in-line glass-reactor UV disinfection system for high-purity and ultrapure water in pharmaceutical, cosmetic and semiconductor production, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

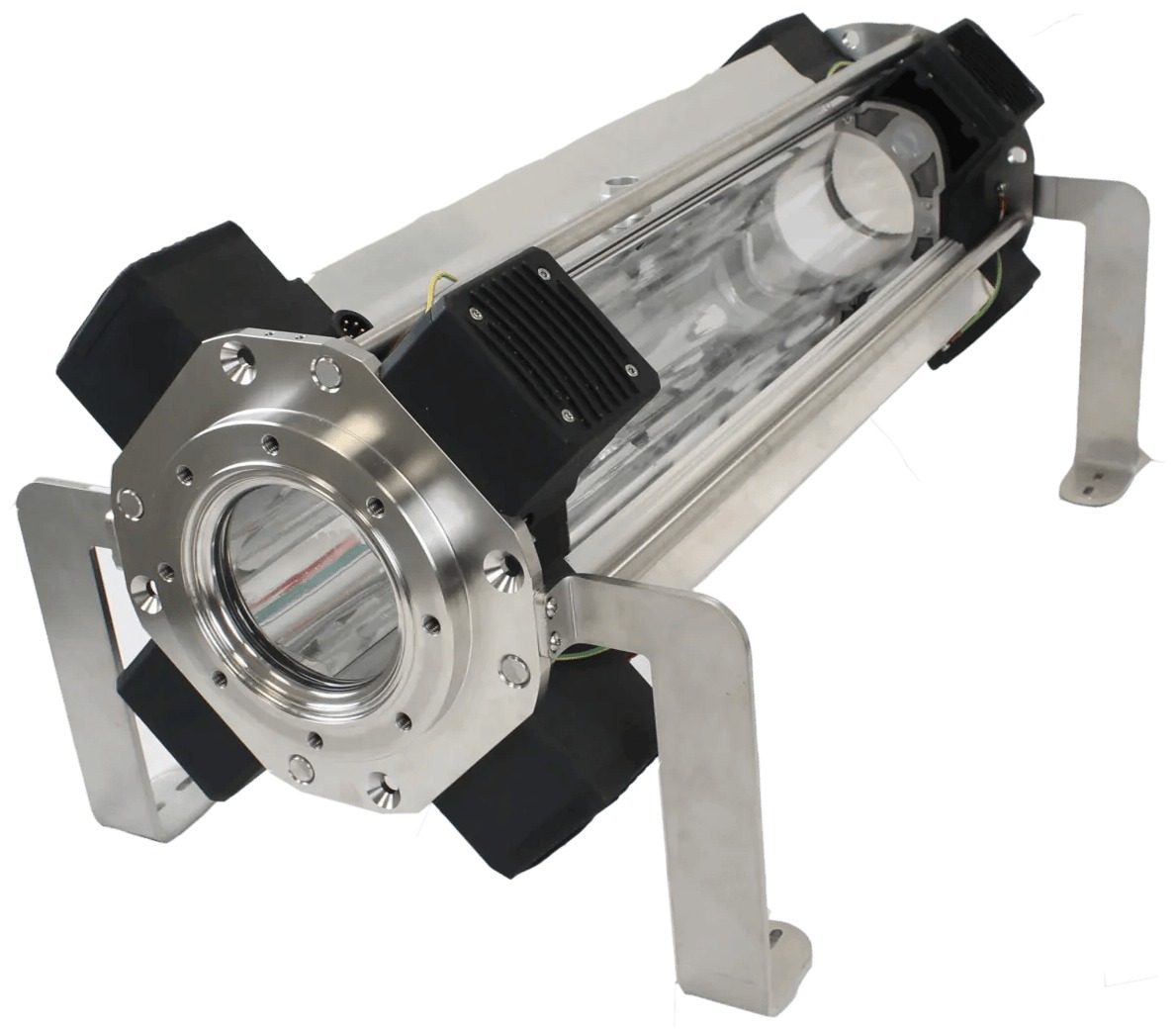

WEDECO PureTube is an in-line UV system for high-purity and ultrapure water in pharmaceutical, cosmetic, semiconductor and similar production. Water flows straight through a quartz-glass reactor with no inserts or dead zones, while the UV lamps sit outside it, around the central quartz tube. The high-dose design inactivates resistant pathogens such as adenovirus and also destroys residual ozone without by-products. Lamps and sensors are thermally isolated from the water, so the system can be sanitised at up to 144 °C. PureTube replaces the WEDECO ME series and can be fitted into existing ME installations.
Ozone UV Solutions supplies PureTube systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Third-party validated to the US EPA UVDGM (2006); removes resistant pathogens including adenovirus
- High-dose design for by-product-free destruction of residual ozone
- Straight-through quartz-glass reactor: no inserts, no dead zones, full drainage, lowest possible head loss
- Lamps and sensors thermally isolated from water and steam; sanitisable up to 144 °C
- Ecoray LPHO lamps, dimmable, rated lamp life 14,000 hours; OptiDose sensor-based dose control
- DIN 11864-2 hygienic connections [Tri-Clamp]; [pipe extensions to match WEDECO ME units] for retrofit
Typical applications
- Purified and ultrapure water in pharmaceutical production
- Cosmetic production water
- Semiconductor and microelectronics ultrapure water
- Destruction of residual ozone after ozone sanitisation
Models and specifications
Models: PureTube 60, PureTube 80, PureTube 100
PureTube models
| Model | Max. flow (m³/h) | UV lamps | Power per lamp | UV sensors | Reactor length (mm)* | Reactor weight | Power consumption |
|---|---|---|---|---|---|---|---|
| PureTube 60 | 25 | 2 | 220 W | 1 or 2 | 837 | 33 kg | 0.55 kW |
| PureTube 80 | 49 | 4 | 220 W | 1 or 4 | 837 | 34 kg | 1.01 kW |
| PureTube 100 | 106 | 4 | 350 W | 1 or 4 | 1,107 | 38 kg | 1.40 kW |
Genuine WEDECO lamps & spare parts
- UV sensor SO20206 — UV sensor type to DIN 19294, all PureTube models
Frequently asked questions
What is the WEDECO PureTube used for?
PureTube disinfects high-purity and ultrapure water in pharmaceutical, cosmetic and semiconductor production and destroys residual ozone. It is validated to the US EPA UVDGM, can be sanitised at up to 144 °C and replaces the WEDECO ME series.
Can you supply lamps and spare parts for WEDECO PureTube systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, sensors, spare parts and consumables for PureTube systems as an authorised WEDECO reseller. The UV sensor type is SO20206 (DIN 19294); for other parts, send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply PureTube systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a PureTube system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
Replaces WEDECO ME – we also service and supply parts for existing ME systems
