Components
Rittal Roof-Mounted Fan for WEDECO Ozone Generators
Xylem / WEDECO 76-502783 (OPN 76-6104919) · Rittal SK 3139.100
Available on Request
Enclosure roof ventilation
Roof-mounted fan for the electrical control cabinet of WEDECO GSO 50 and GSO 18-50 ozone generators. Supplied complete with pleated filter.
- Xylem / WEDECO reference
- 76-502783 (OPN 76-6104919)
- Manufacturer
- Rittal
- Rittal model
- SK 3139.100
- Suitable for
- WEDECO GSO 50 and GSO 18-50 ozone generators
- Condition
- New
- Product type
- Component
Price on Application
Request a quote
Technical data
Rittal SK 3139.100
| Electrical supply | 220–240 V AC, single phase, 50/60 Hz |
|---|---|
| Power consumption | 51 W at 50 Hz; 62 W at 60 Hz |
| Airflow with pleated filter | 474 m³/h at 50 Hz; 514 m³/h at 60 Hz |
| Standard supply | Complete fan with pleated filter |
| Protection class | IP54 with pleated filter installed |
| Dimensions (W × H × D) | 400 × 133 × 400 mm |

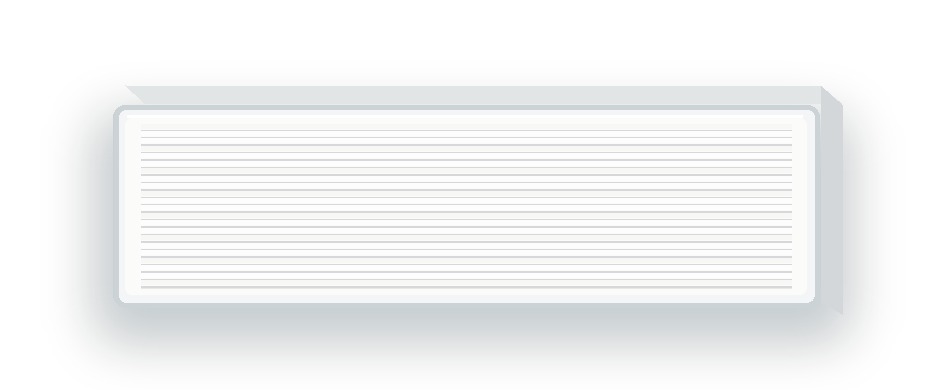

Replacement filter
| Rittal part number | SK 3174.120 |
|---|---|
| Type | Pleated filter, IP54 |
| Filter size | 265 × 100 × 18 mm |
| Filter class | M5 / ISO ePM10 50% |
| Rittal packs | 12 filters per pack |
Inspect regularly; replace by 2,000 operating hours (about 3 months at 24/7 duty), or sooner if dirty. Switch off and isolate the fan before filter work.
Replacement filters available on request.
