POOLRAY™ Series
Compact, cost-optimised medium-pressure UV systems for disinfection and combined chlorine removal in pools and spas.
Pricing on request.
Overview

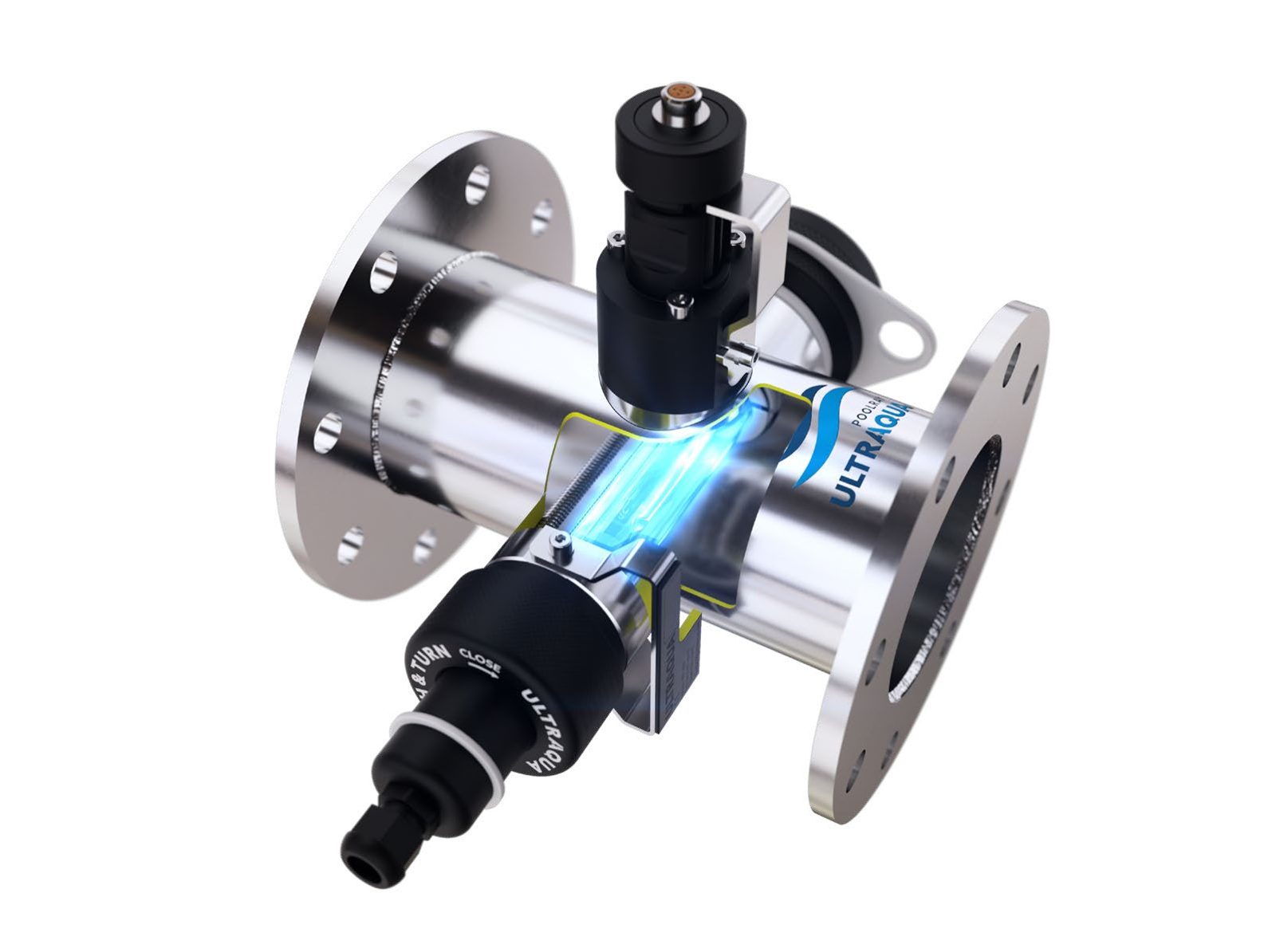

The POOLRAY™ series is a simple, professional UV system for smaller pools and spas, designed for the lowest possible investment cost. Its medium-pressure lamp disinfects the water and removes combined chlorine, while the compact in-line reactor takes up little installation space.

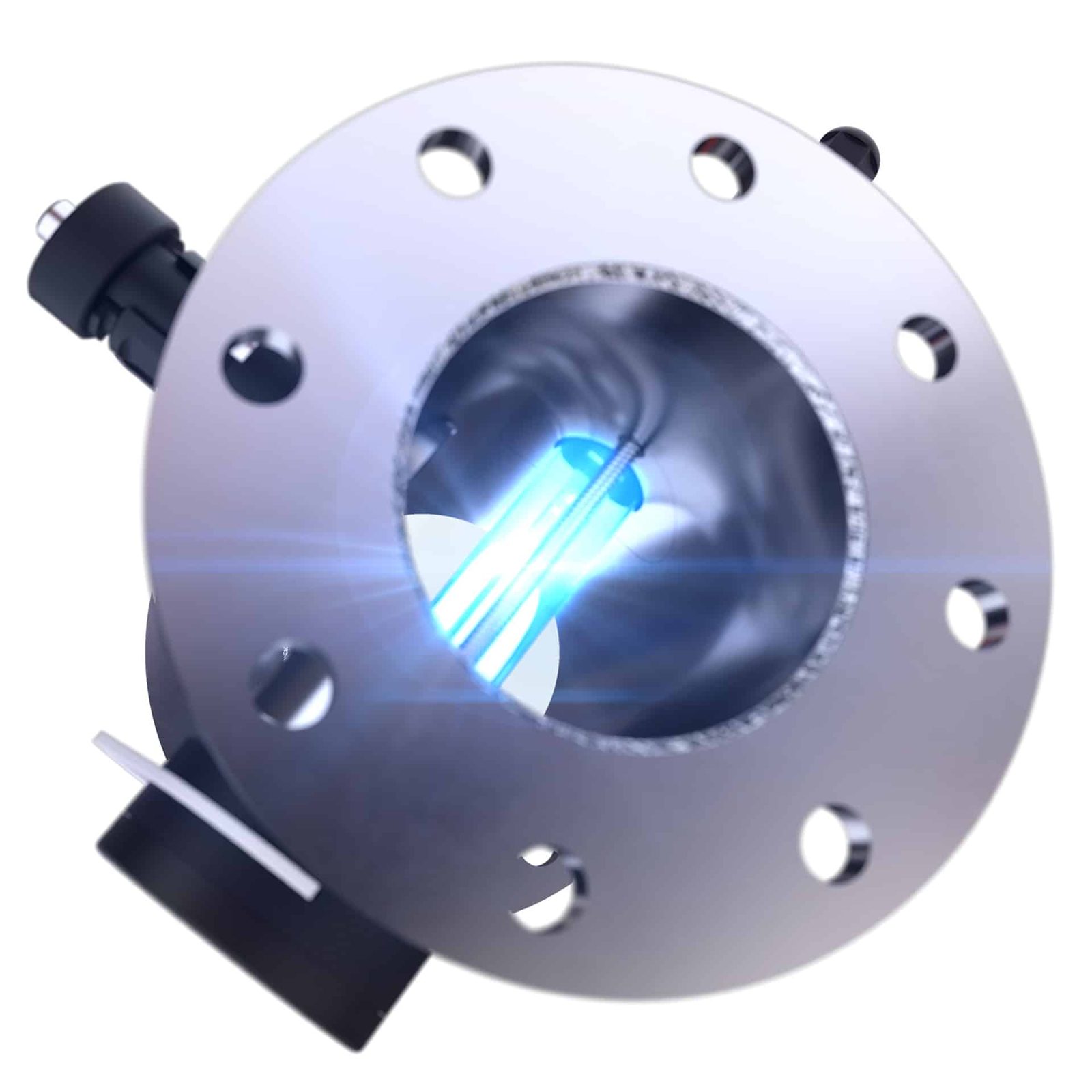

Large flanged connections keep head loss very low even at high flow rates. Maintenance needs are small, and disassembly and cleaning are straightforward.
Ozone UV Solutions supplies POOLRAY™ systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Compact and cost-optimised for pools and spas, with streamlined installation and service
- Medium-pressure 600 W lamp with a rated life of 9,000 hours
- Electropolished SS316L reactor with excellent resistance to chlorides
- SMARTWIPER manual sleeve wiping for clean quartz sleeves
- Manual lamp power adjustment from 60% to 100%
- Three sizes: POOLRAY NANO, MP1-600SS and MP2-600SS
Typical applications
- Swimming pools and spas: disinfection and combined chlorine removal
Models and specifications
POOLRAY™ models
| Model | UV lamps (600 W) | Connection | Reactor weight | Reactor volume | Power | Cabinet (H×W×D mm) | Controller |
|---|---|---|---|---|---|---|---|
| POOLRAY NANO | 1 | 2½" BSPT | 5 kg | 1 L | 0.67 kW | 400×300×210 | Digital display |
| POOLRAY MP1-600SS | 1 | DN100 (ANSI 4) / D110 | 8.5 kg | 3 L | 0.69 kW | 400×300×210 | Siemens PLC |
| POOLRAY MP2-600SS | 2 | DN100 (ANSI 4) / D110 | 12 kg | 4.5 L | 1.37 kW | 500×400×210 | Siemens PLC |
Flow capacity by model
| Model | Max. flow at 3 m/s | Flow at 60 mJ/cm², 95% UVT | Flow at 60 mJ/cm², 98% UVT |
|---|---|---|---|
| POOLRAY NANO | 30 m³/h | 15 m³/h | 18 m³/h |
| POOLRAY MP1-600SS | 80 m³/h | 29 m³/h | 37 m³/h |
| POOLRAY MP2-600SS | 80 m³/h | 59 m³/h | 74 m³/h |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | Medium-pressure lamp, 600 W, electronic ballast |
| Rated lamp life | 9,000 hours |
| UV monitoring | POOLRAY NANO: none · MP models: [pool-specialised UV intensity sensor] |
| Power control | Manual adjustment, 60–100% |
| Approvals | CE [UL] |
| UV CHAMBER | |
| Chamber material | SS316L / 1.4404, electropolished inside and out |
| Connections | POOLRAY NANO: 2½" BSPT · MP models: DN100 (ANSI 4) / D110, EN 1092 Type 01A PN10 (ANSI Class 150) |
| Design pressure | 10 bar |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | SMARTWIPER manual sleeve wiping |
| Installation | In-line, horizontal or vertical · single-sided access |
| Other | Temperature probe · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |

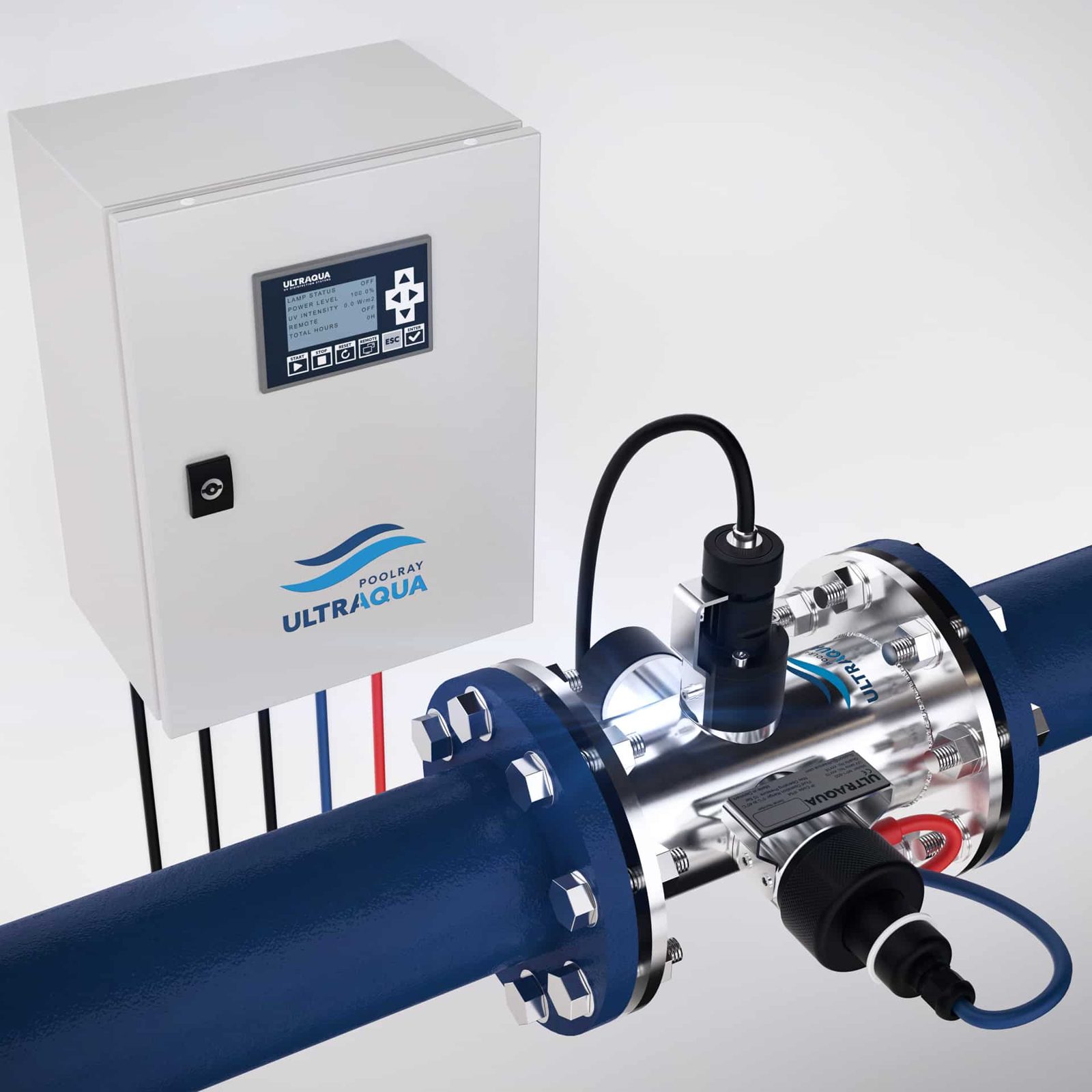

| Control / display | POOLRAY NANO: 5-line digital display · MP models: Siemens PLC with screen, remote control |
| Cabinet | Powder-painted steel [plastic] · wall-mounted, ambient 0–40 °C, non-condensing · IP54 [IP65] · fan cooled |
| Power supply | 1 × 230 VAC ±10% +N+PE 50/60 Hz · MP models [3 × 400 VAC] |
| Cable length | 4 m standard [up to 30 m] |
