ULTRAAQUA · SWIMMING POOL UV DISINFECTION
ULTRABLUE Series
NSF-50 certified medium-pressure UV systems for disinfection and combined chlorine removal in swimming pools.
Pricing on request.
Overview
Most of the combined chlorine measured in pool water consists of organic chloramines, which affect water and air quality for swimmers. The ULTRABLUE series breaks these compounds down continuously by photolysis, using pool-optimised medium-pressure lamps, and at the same time disinfects the water and provides a barrier against Cryptosporidium and Giardia.
Large flanged connections and a CFD-optimised reactor keep head loss very low even at high flow rates. The PLC can dim the lamps according to the measured combined chlorine level, timers, flow or the UV sensor, and can hold a minimum UV dose during opening hours.
Ozone UV Solutions supplies ULTRABLUE systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- NSF-50 certified UV system for pool disinfection and chloramine control
- Designed for 99.9% (3-log) Cryptosporidium reduction in a single pass
- ULTRATHERM medium-pressure high-intensity lamps, 600 W to 4,000 W, with a rated life of 9,000 hours

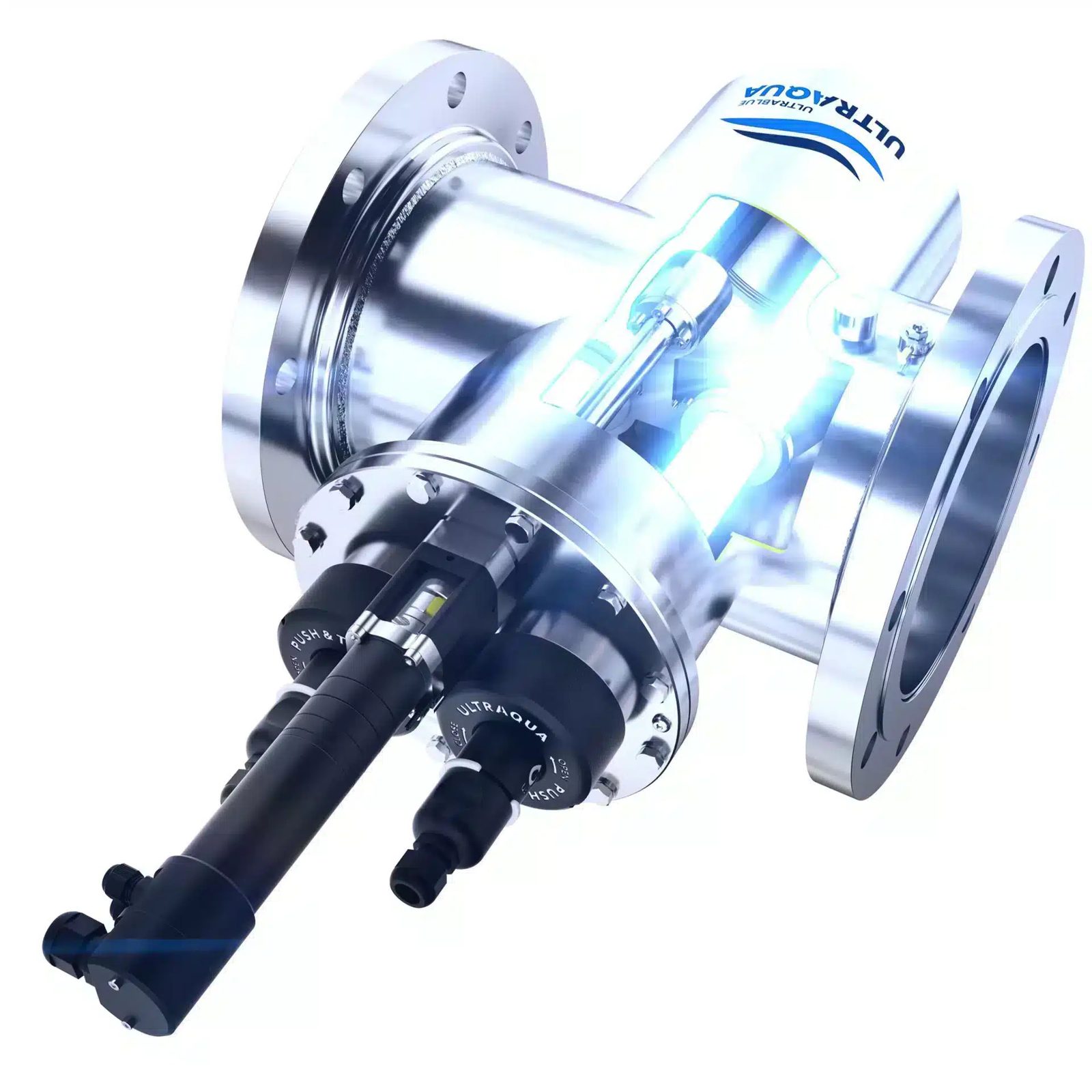

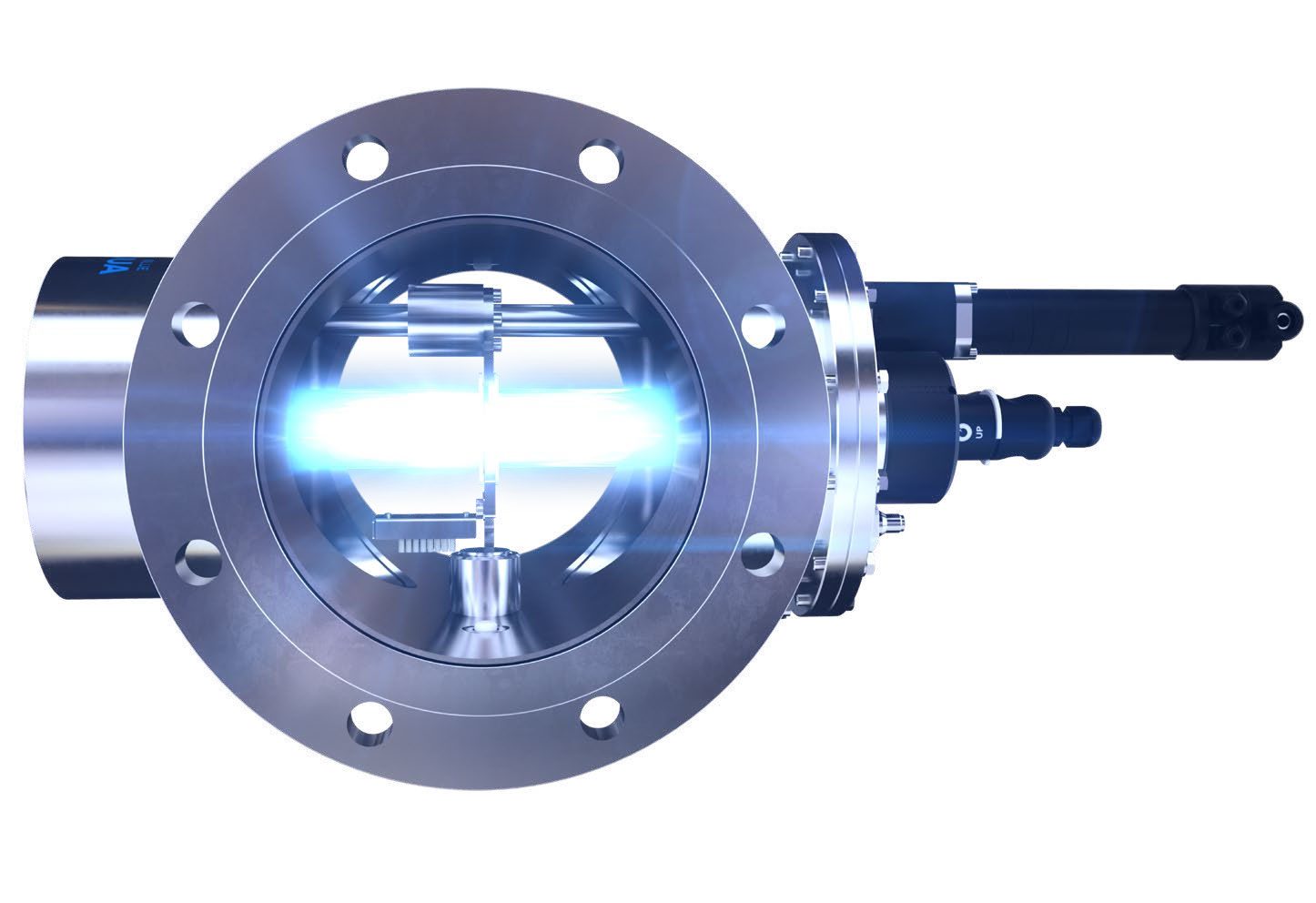

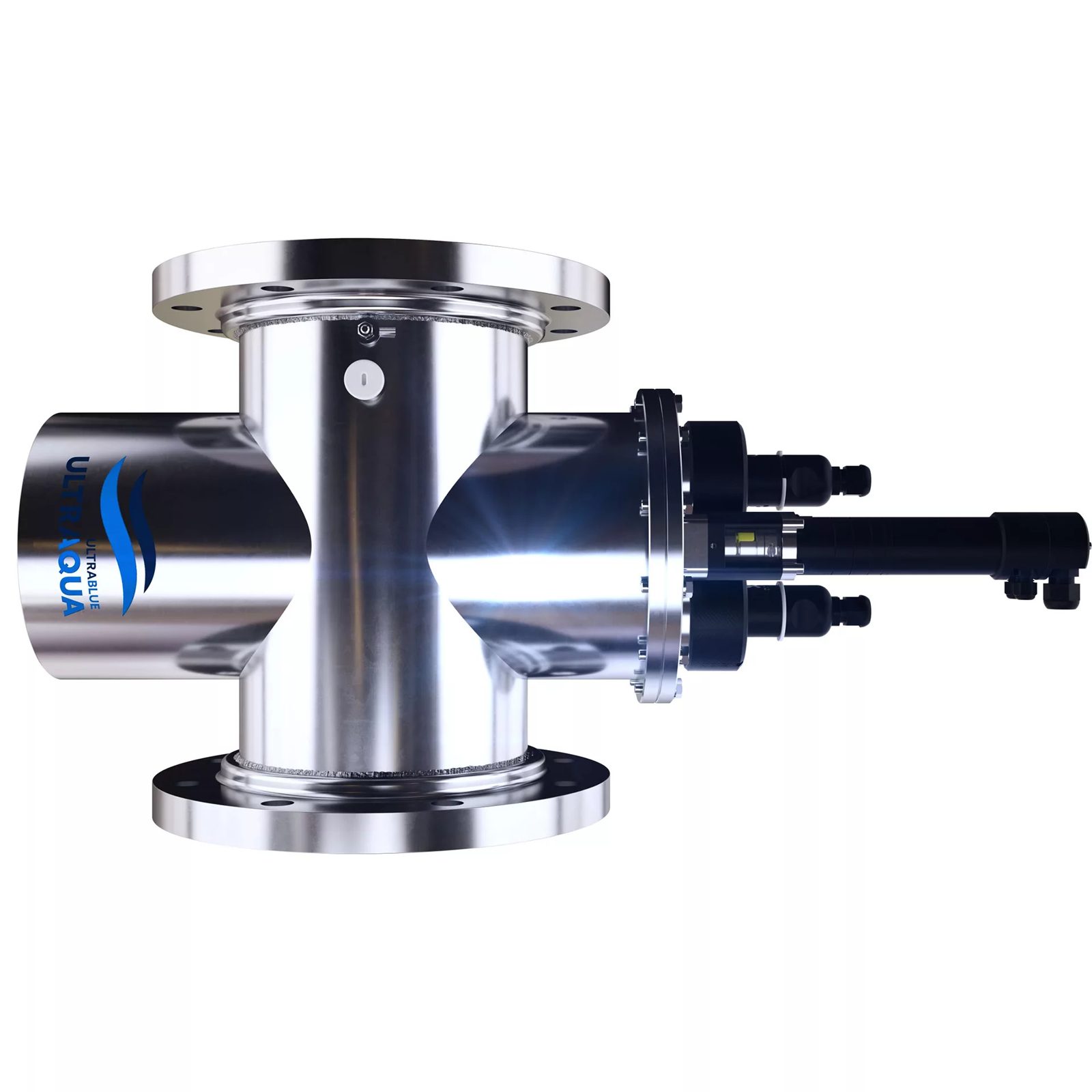

- Compact in-line reactor in electropolished SS316L with excellent resistance to chlorides
- Lamp power controlled by combined chlorine input, ULTRADOSE pacing down to 30%
- ÖNORM M 5873-1 certified pool sensor, serviceable during operation; automatic ULTRAWIPER™
Typical applications
- Swimming pools: disinfection and combined chlorine (chloramine) reduction
- Protection of pool water against Cryptosporidium and Giardia
Models and specifications
ULTRABLUE models
| Model | UV lamps | Lamp power | Connection | Dry weight | Wet weight | Current draw | Power supply |
|---|---|---|---|---|---|---|---|
| ULTRABLUE 1-600SS | 1 | 600 W | DN80 (ANSI 3) | 19 kg | 24 kg | 3 A | 1 × 208/230 VAC |
| ULTRABLUE 2-600SS | 2 | 600 W | DN100 (ANSI 4) | 26 kg | 35 kg | 6 A | 1 × 208/230 VAC |
| ULTRABLUE 1-2500SS | 1 | 2,500 W | DN150 (ANSI 6) | 31 kg | 42 kg | 14 A | 1 × 208/230 VAC |
| ULTRABLUE 2-2500SS | 2 | 2,500 W | DN200 (ANSI 8) | 46 kg | 70 kg | 28 A | 1 × 208/230 VAC |
| ULTRABLUE 2-4000SS | 2 | 4,000 W | DN250 (ANSI 10) | 53 kg | 87 kg | 12 A | 3 × 400 VAC |
| ULTRABLUE 3-4000SS | 3 | 4,000 W | DN300 (ANSI 12) | 81 kg | 134 kg | 24 A | 3 × 400 VAC |
Control cabinet by model
| Models | Cabinet size (H×W×D mm) | Cabinet weight | Cable length |
|---|---|---|---|
| ULTRABLUE 1-600SS, 2-600SS | 800×600×260 | 50 kg | 8 m |
| ULTRABLUE 1-2500SS, 2-2500SS | 800×800×300 | 60 kg | 10 m [up to 30 m] |
| ULTRABLUE 2-4000SS, 3-4000SS | 1000×800×400 | 75 kg | 10 m [up to 30 m] |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM medium-pressure high-intensity (MPHI), electronic ballast with lamp function alarm |
| Rated lamp life | 9,000 hours |
| UV monitoring | UV intensity sensor, ÖNORM M5873 certified, SS316L |
| Power control | ULTRADOSE automatic pacing 50–100% (600 W models) · 30–100% (2,500 W and 4,000 W models) · power mode based on combined chlorine input, user-selectable |
| Single lamp control | ULTRASWITCH setting on models with two or more lamps |
| Approvals | NSF-50, CE [UL] |
| UV CHAMBER | |
| Chamber material | SS316L, electropolished inside and out |
| Connection type | PN10 (ANSI Class 150) flanges [other flanges on request] |
| Design pressure | 10 bar |
| Quartz sleeves | High-purity fused quartz |
| Cleaning | ULTRAWIPERâ„¢ automatic mechanical wiper, PTFE, 24 V DC electric motor |
| Installation | Free-standing · horizontal or vertical (lamps must be horizontal) · single-ended lamp and wiper access · lamp change safety |
| Other | 2 × PT100 temperature probes with thermal cut-out at 50 °C · ½" BSP plugged vent, drain and air ports · IP65 · minor wetted parts PTFE, PVDF, FKM |
| CONTROL CABINET | |
| Control logic / HMI | PLC · 7" ULTRATOUCH touchscreen |
| Communication | Modbus TCP/IP [PROFINET, Profibus] |
| Analogue I/O (4–20 mA) | UV dose, UV intensity or power output · flow input · combined chlorine input |
| Logging | Event log (power ON/OFF, lamps ON/OFF, alarms) · data log (UV dose, UV intensity, flow, combined chlorine) |
| External wiring | Remote ON/OFF, safety ON/OFF, system status, alarm |
| Cabinet | Powder-painted steel [SS304, SS316L] · wall-mounted, ambient 0–45 °C, non-condensing · IP54 (NEMA 13) · fan cooled · 90° two-position rotary interlock switch |
Pricing on request.
