SSV Drinking Water Series
Validated UV disinfection for drinking water, with electropolished stainless-steel reactors and SWIRLFLOW hydraulics.
Pricing on request.

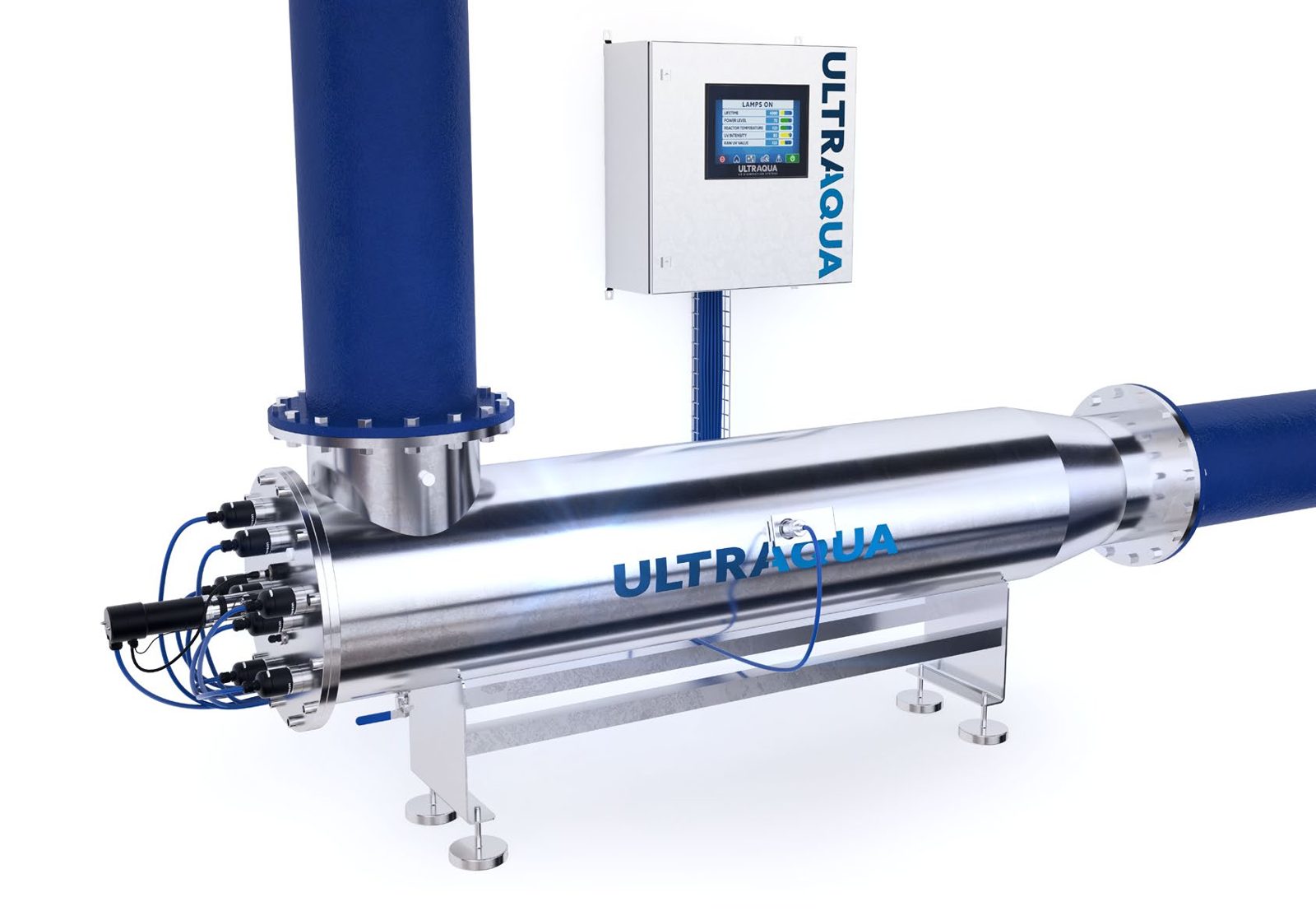

Overview
The SSV series is designed for municipal and other drinking water supplies, where a UV system has to prove its performance. The series has been validated by biodosimetry testing to the Austrian standard ÖNORM M 5873-1 and is designed for a microbial reduction of more than 4-log.

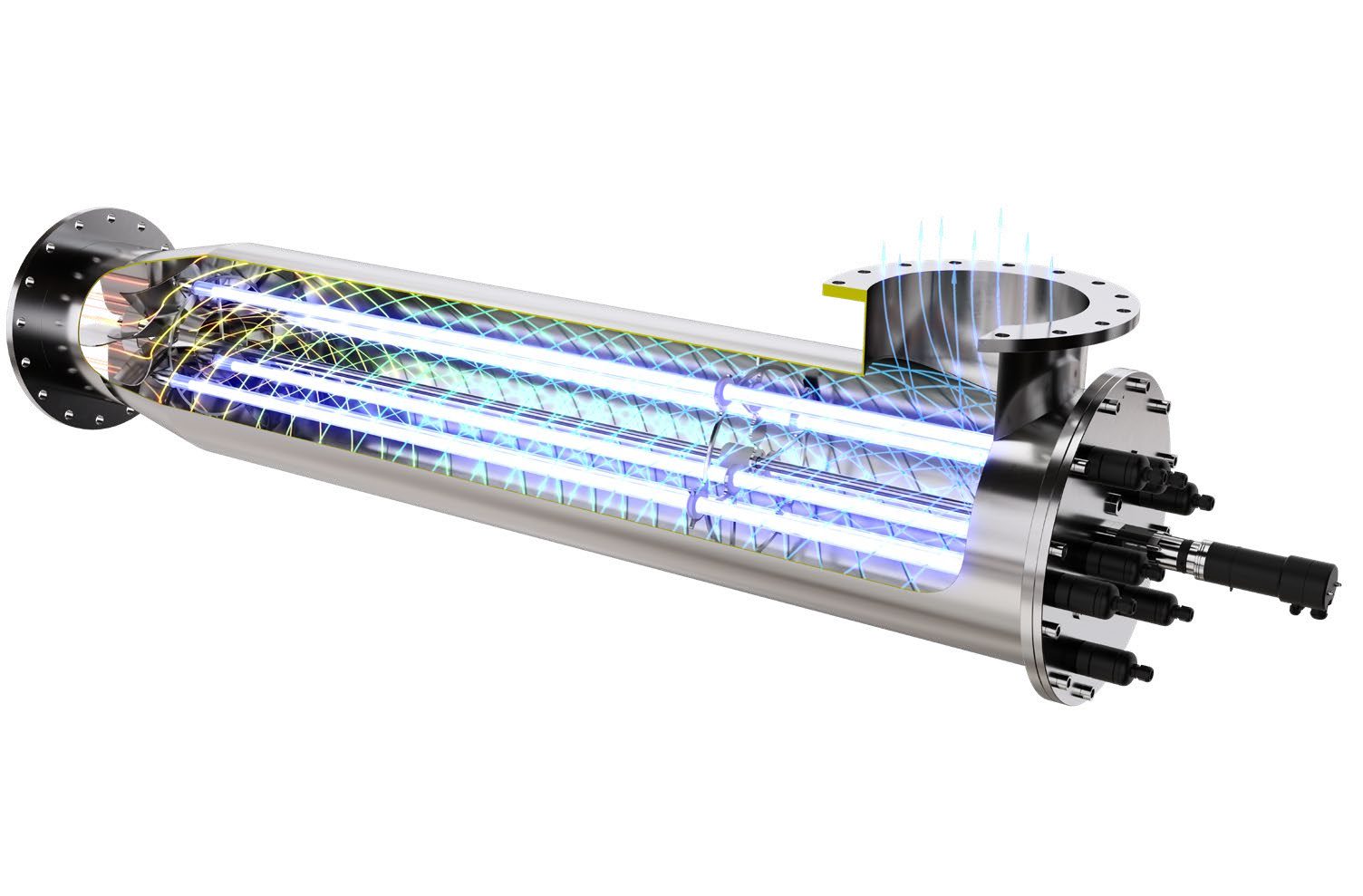

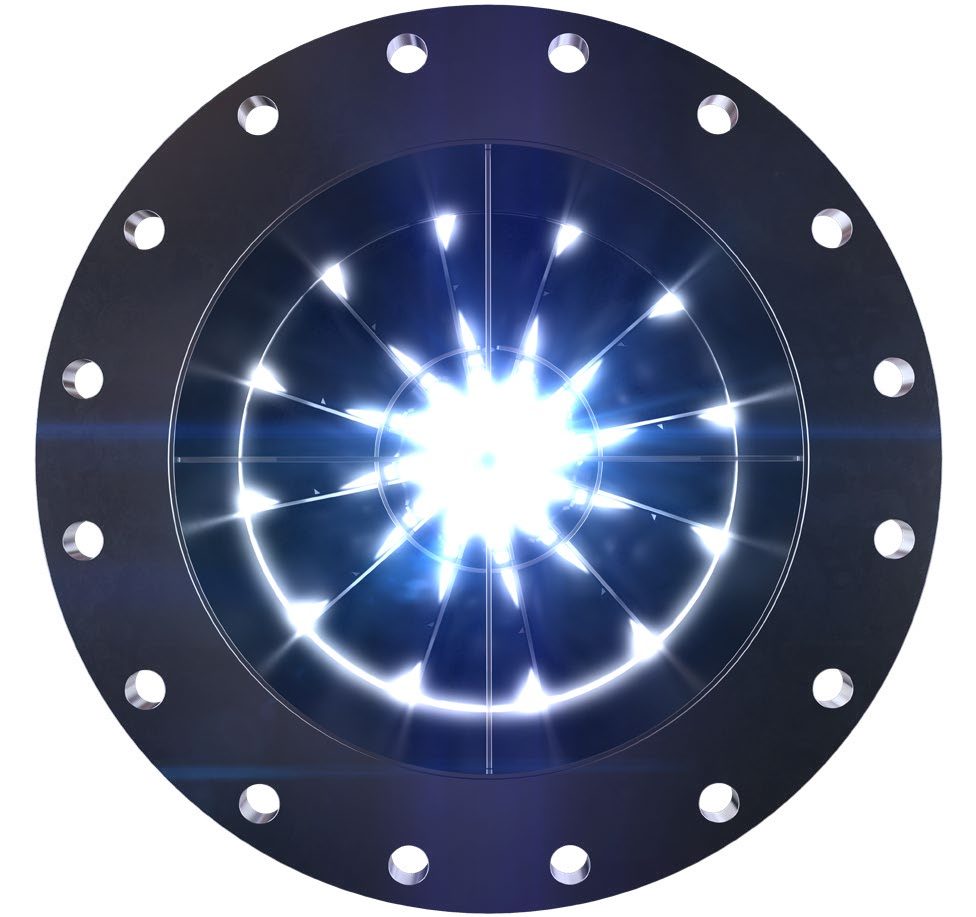

Its patented SWIRLFLOW design guides the water through the reactor so that pathogens receive an even UV exposure, giving a hydraulic efficiency of 90% at all water qualities.
Ozone UV Solutions supplies SSV systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Validated by biodosimetry to ÖNORM M 5873-1 for drinking water disinfection
- Designed for more than 4-log microbial reduction
- Patented SWIRLFLOW hydraulics with 90% hydraulic efficiency
- Electropolished SS316L reactor, design pressure 10 bar [16 bar]
- ULTRATHERM 220 W or 350 W amalgam lamps with a rated life of 16,000 hours and ULTRADOSE dose pacing (50–100%)
- Automatic ULTRAWIPERâ„¢ cleaning and Siemens PLC with 7" ULTRATOUCH touchscreen on MR3-220 SSV and larger
Typical applications

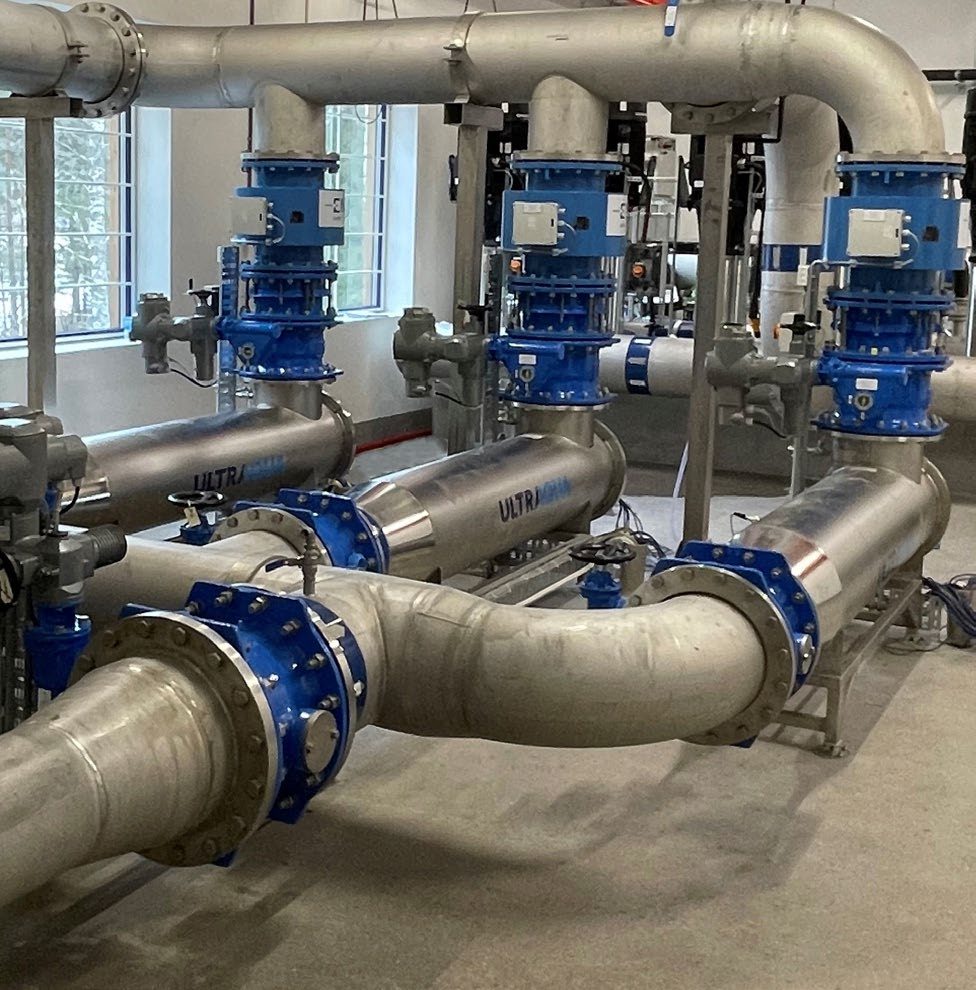

- Municipal drinking water treatment
- Other drinking water supplies that require a UV system validated to ÖNORM M 5873-1
Models and specifications
SSV models
| Model | UV lamps | Lamp power | Connection | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|---|
| MR1-220 SSV | 1 | 220 W | DN100 (ANSI 4) | 0.2 kW | 31 kg | 40 L | Microprocessor, LCD |
| MR3-220 SSV | 3 | 220 W | DN100 (ANSI 4) | 0.7 kW | 50 kg | 77 L | Siemens PLC, 7" HMI |
| MR4-220 SSV | 4 | 220 W | DN150 (ANSI 6) | 1.0 kW | 69 kg | 114 L | Siemens PLC, 7" HMI |
| MR6-220 SSV | 6 | 220 W | DN250 (ANSI 10) | 1.4 kW | 102 kg | 165 L | Siemens PLC, 7" HMI |
| MR6-350 SSV | 6 | 350 W | DN300 (ANSI 12) | 2.3 kW | 160 kg | 290 L | Siemens PLC, 7" HMI |
| MR8-350 SSV | 8 | 350 W | DN350 (ANSI 14) | 3.0 kW | 200 kg | 368 L | Siemens PLC, 7" HMI |
| MR12-350 SSV | 12 | 350 W | DN400 (ANSI 16) | 4.5 kW | 259 kg | 460 L | Siemens PLC, 7" HMI |
Control cabinet by model
| Model | Cabinet size (H×W×D) | Cabinet weight | Cabinet material | Power supply |
|---|---|---|---|---|
| MR1-220 SSV | 600×400×210 mm | 10 kg | GFRP [SS304 / SS316] | 1 × 230 VAC |
| MR3-220 SSV | 800×800×300 mm | 46 kg | SS304 [SS316, painted steel, GFRP] | 1 × 230 VAC |
| MR4-220 SSV | 800×800×300 mm | 46 kg | SS304 [SS316, painted steel, GFRP] | 1 × 230 VAC |
| MR6-220 SSV | 800×800×300 mm | 49 kg | SS304 [SS316, painted steel, GFRP] | 1 × 230 VAC |
| MR6-350 SSV | 800×800×300 mm | 52 kg | SS304 [SS316, painted steel, GFRP] | 1 × 230 VAC |
| MR8-350 SSV | 1000×800×300 mm | 70 kg | SS304 [SS316, painted steel, GFRP] | 3 × 400 VAC |
| MR12-350 SSV | 1000×800×300 mm | 76 kg | SS304 [SS316, painted steel, GFRP] | 3 × 400 VAC |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 220 W or 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | UV intensity sensor, ÖNORM M5873 certified, SS316L |
| Power control | ULTRADOSE dose pacing, 50–100% |
| Approvals | ÖNORM M 5873-1, CE [UL] |
| UV CHAMBER | |
| Chamber material | SS316L / 1.4404 [Super Duplex], electropolished inside, glass-blasted outside |
| Design pressure | 10 bar [16 bar] |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | ULTRAWIPER™ automatic mechanical wiper with PTFE/fibre rings (electric drive) – not fitted on MR1-220 SSV |
| Access / installation | Single-ended lamp and wiper access · horizontal or vertical installation · free-standing [horizontal SS316 stand] |
| Other | PT100 temperature probe · 1" vent and drain ports, ¼" sampling ports · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | MR1-220 SSV: microprocessor with 4-line LCD · other models: Siemens PLC [Allen-Bradley] with 7" ULTRATOUCH touchscreen |
| Communication | MR1-220 SSV: Modbus RTU · other models: Modbus TCP/IP, PROFINET |
| Analogue I/O (4–20 mA) | MR1-220 SSV: flow input, UV irradiance output · other models: flow input, UV dose output, UV intensity output [UVT input] |
| Logging | MR1-220 SSV: alarms · other models: alarms, events and data (UV dose, UV intensity, flow) |
| Installation & cooling | Wall-mounted, ambient 0–40 °C, non-condensing · MR1-220 SSV: IP65, passive cooling [AC / heat exchanger] · other models: IP54 [IP65], fan with filter [AC / heat exchanger] |
| Power supply | 1 × 230 VAC ±10% +N+PE 50/60 Hz (up to MR6-350 SSV) · 3 × 400 VAC ±10% +N+PE 50/60 Hz (MR8-350 and MR12-350 SSV) |
| Cable length | 4 m standard [up to 30 m] |
