ULTRAAQUA · GENERAL WATER UV DISINFECTION
MONORAY™ Series
Stainless-steel UV systems for general disinfection of industrial and municipal water, from single-lamp units to 20-lamp reactors.
Pricing on request.
Overview

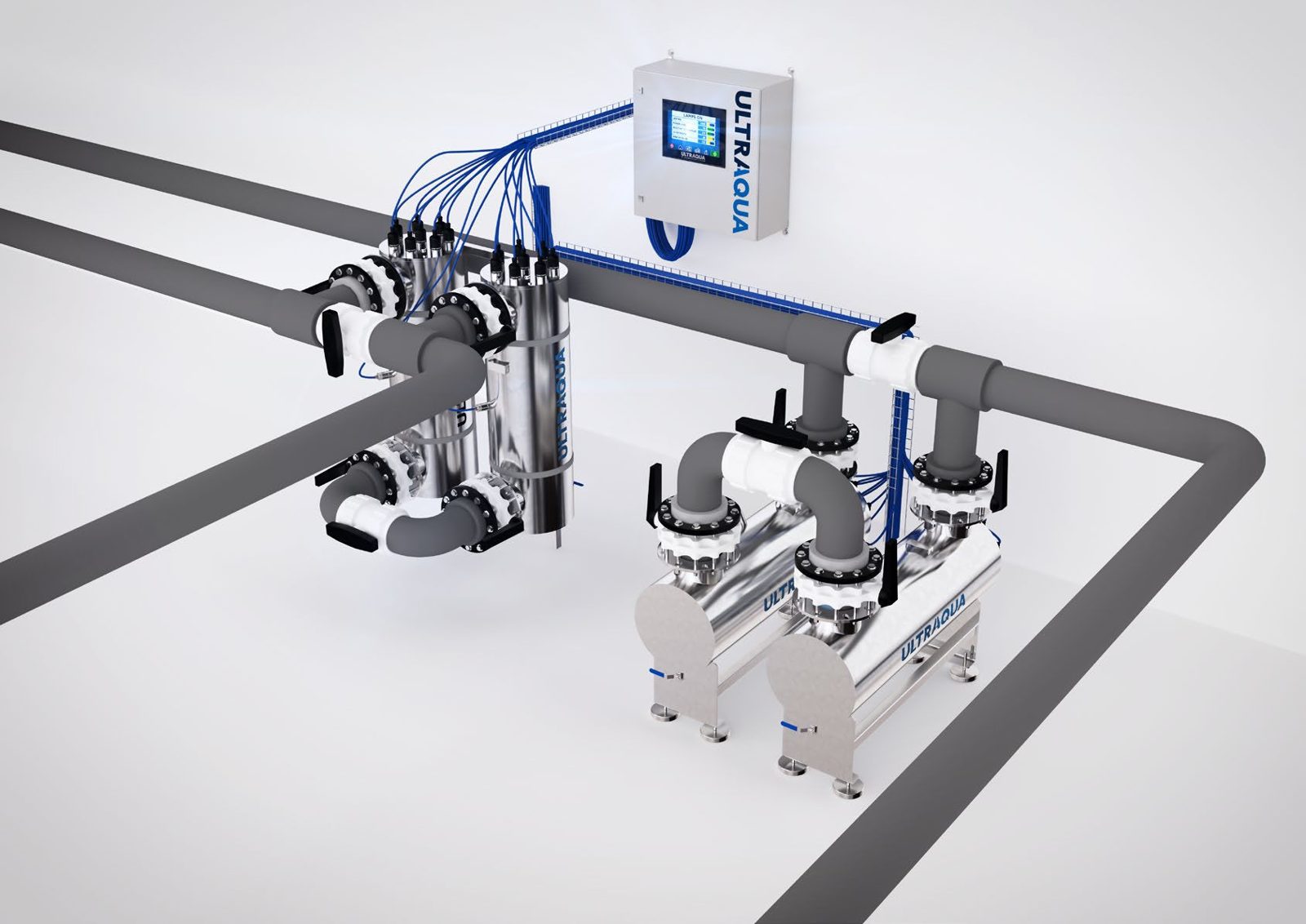

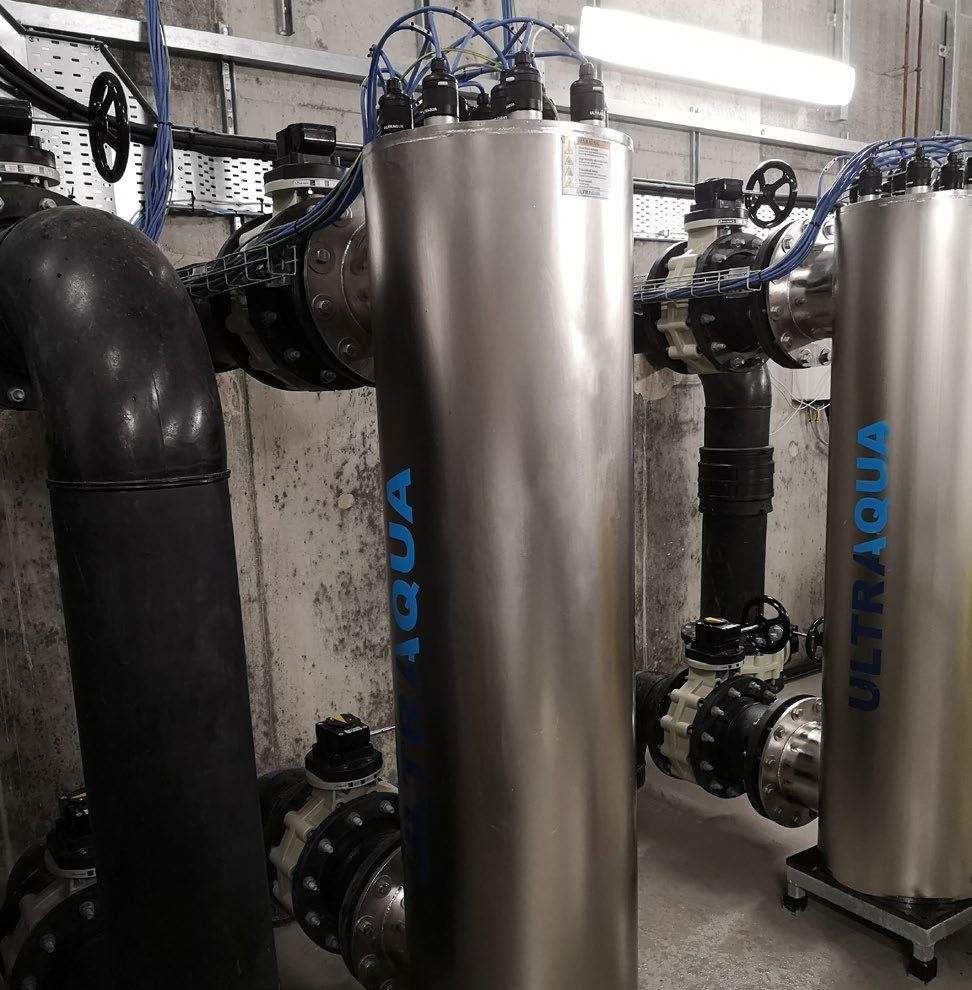

The MONORAY™ series is the general-purpose range of closed-vessel UV systems, designed for industrial and municipal water wherever chemical-free disinfection is required. Reactors and control cabinets come in several configurations, so a system can be matched to the flow, the water quality and the space available.

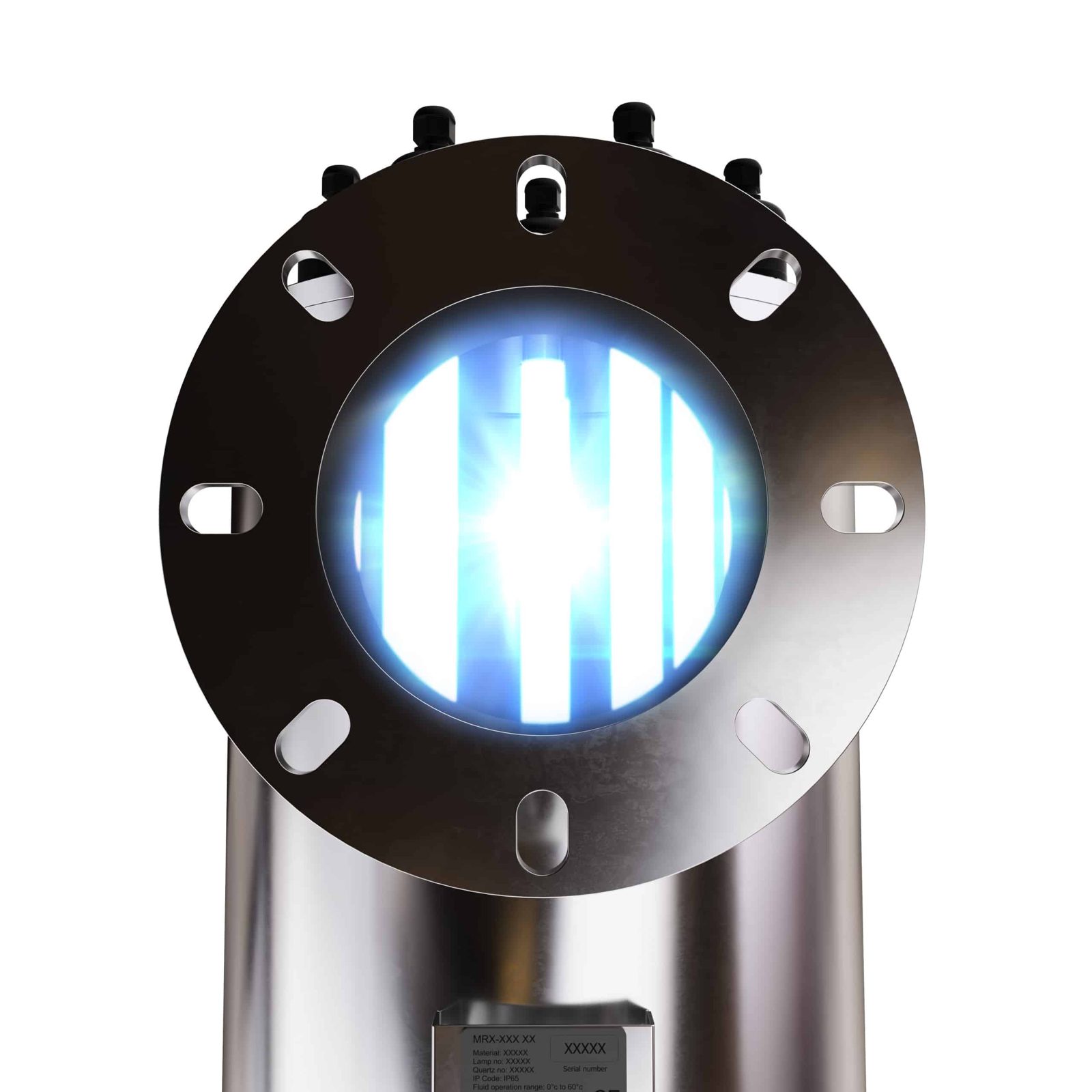

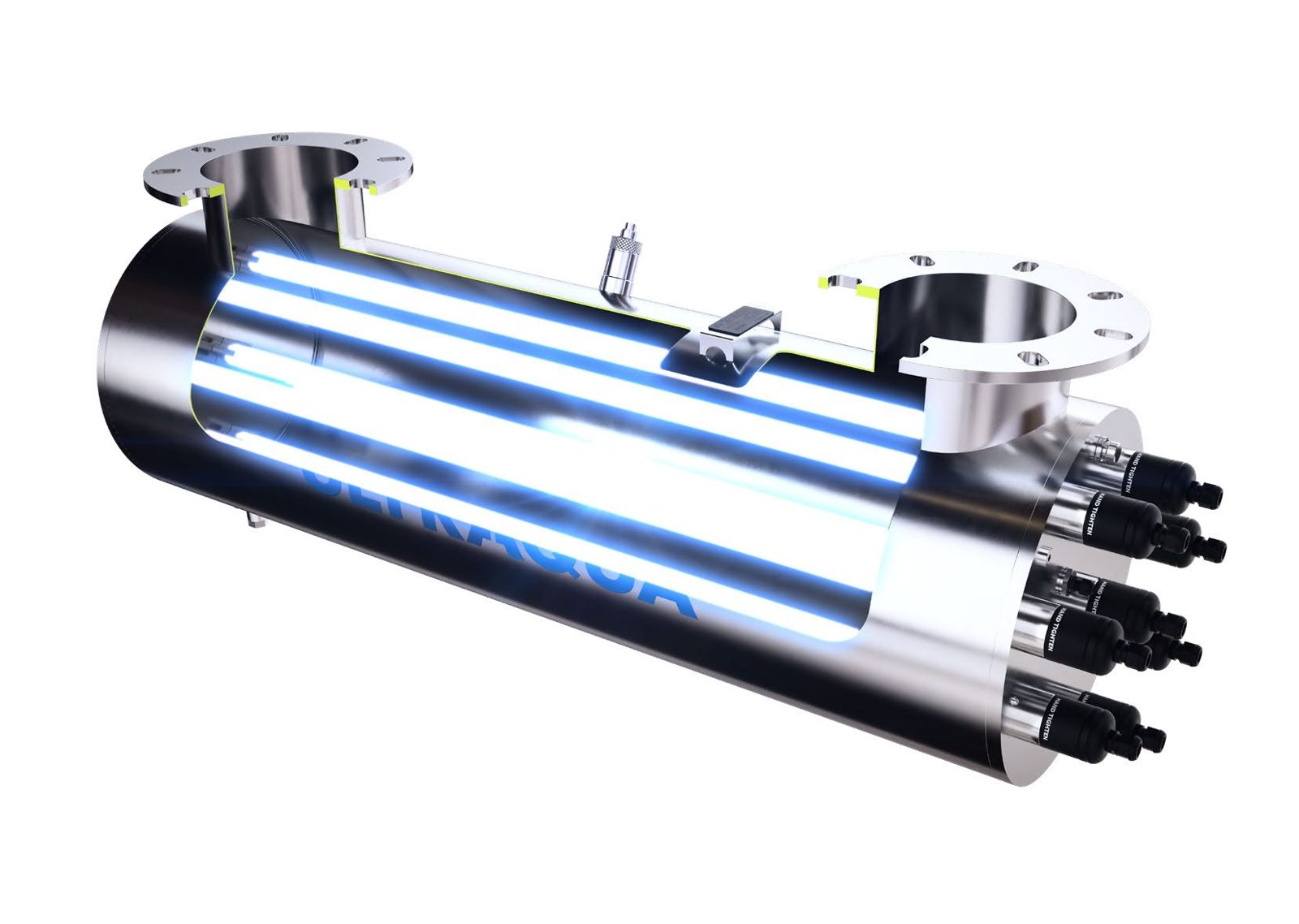

The electropolished stainless-steel reactor reflects UV light back into the water, which improves efficiency by up to 30% in water of high UV transmittance.
Ozone UV Solutions supplies MONORAY™ systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Electropolished SS316L reactor [Super Duplex], design pressure 10 bar
- ULTRATHERM low-pressure high-output amalgam lamps: 75 W with a rated life of 9,000 hours, or 220 W and 350 W with a rated life of 16,000 hours
- Sizes from 1 to 20 lamps with 1½" BSP or flanged DN80 to DN300 connections
- UV intensity monitoring and 50–100% variable lamp power on all models except single-lamp STD units
- Optional automatic ULTRAWIPER™ quartz sleeve cleaning on 220 W and 350 W models
- PLC with ULTRATOUCH touchscreen and Modbus TCP/IP or PROFINET on models with three or more lamps
Typical applications
- Drinking water and general municipal disinfection
- Food and beverage, and pharmaceutical process water
- Recirculating aquaculture systems (RAS), aquariums and zoos
- Stormwater overflow (CSO) treatment
Models and specifications
75 W lamp model
| Model | UV lamps | Connection | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|
| MR1-75SS STD | 1 | 1½" BSP | 0.08 kW | 7 kg | 6 L | STD – status LEDs |
| MR1-75SS ADV | 1 | 1½" BSP | 0.08 kW | 7 kg | 6 L | ADV – microprocessor, LCD |
220 W lamp models
| Model | UV lamps | Connection | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|
| MR1-220SS STD | 1 | DN80 (ANSI 3) | 0.2 kW | 23 kg | 22 L | STD – status LEDs |
| MR1-220SS ADV | 1 | DN80 (ANSI 3) | 0.2 kW | 23 kg | 22 L | ADV – microprocessor, LCD |
| MR3-220SS | 3 | DN150 (ANSI 6) | 0.7 kW | 38 kg | 42 L | PLC – ULTRATOUCH |
| MR4-220SS | 4 | DN150 (ANSI 6) | 1.0 kW | 45 kg | 64 L | PLC – ULTRATOUCH |
| MR6-220SS | 6 | DN200 (ANSI 8) | 1.4 kW | 61 kg | 93 L | PLC – ULTRATOUCH |
| MR8-220SS | 8 | DN200 (ANSI 8) | 1.9 kW | 78 kg | 163 L | PLC – ULTRATOUCH |
350 W lamp models
| Model | UV lamps | Connection | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|
| MR1-350SS STD | 1 | DN100 (ANSI 4) | 0.4 kW | 28 kg | 32 L | STD – status LEDs |
| MR1-350SS ADV | 1 | DN100 (ANSI 4) | 0.4 kW | 28 kg | 32 L | ADV – microprocessor, LCD |
| MR3-350SS | 3 | DN150 (ANSI 6) | 1.1 kW | 45 kg | 58 L | PLC – ULTRATOUCH |
| MR4-350SS | 4 | DN150 (ANSI 6) | 1.5 kW | 53 kg | 89 L | PLC – ULTRATOUCH |
| MR6-350SS | 6 | DN200 (ANSI 8) | 2.3 kW | 70 kg | 128 L | PLC – ULTRATOUCH |
| MR8-350SS | 8 | DN250 (ANSI 10) | 3.0 kW | 112 kg | 230 L | PLC – ULTRATOUCH |
| MR12-350SS | 12 | DN250 (ANSI 10) | 4.5 kW | 143 kg | 296 L | PLC – ULTRATOUCH |
| MR16-350SS | 16 | DN300 (ANSI 12) | 6.0 kW | 179 kg | 356 L | PLC – ULTRATOUCH |
| MR18-350SS | 18 | DN300 (ANSI 12) | 6.8 kW | 181 kg | 356 L | PLC – ULTRATOUCH |
| MR20-350SS | 20 | DN300 (ANSI 12) | 7.5 kW | 183 kg | 356 L | PLC – ULTRATOUCH |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 75 W, 220 W or 350 W |
| Rated lamp life | 9,000 hours (75 W) · 16,000 hours (220 W and 350 W) |
| UV monitoring | UV intensity sensor, SS316L (all models except single-lamp STD); ÖNORM M5873 certified on 220 W and 350 W models |
| Power control | ADV: variable power 50–100% · PLC models: ULTRADOSE automatic dose pacing 50–100% |
| Approvals | CE [UL / cUL] |
| UV CHAMBER | |
| Chamber material | SS316L / 1.4404 [Super Duplex], electropolished inside, glass-blasted outside |
| Connections | 75 W: 1½" BSP, PN10 (ANSI Class 150) · 220 W and 350 W: EN 1092 Type 01A PN10 (ANSI Class 150) [PN16 (ANSI Class 300)] |
| Design pressure | 10 bar · 220 W and 350 W models [16 bar] |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | [ULTRAWIPER™ automatic mechanical wiper with PTFE/fibre rings (electric drive)] on 220 W and 350 W models, except single-lamp STD units; not available on 75 W models |
| Access / installation | Single-ended lamp and wiper access · horizontal or vertical installation · free-standing [horizontal stand: Duplex for 220 W, SS316 for 350 W models] |
| Vent & drain ports | None on 75 W models · ½" (220 W models and 350 W models up to MR8) · 1" (MR12-350SS and above) |
| Other | PT100 temperature probe · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | STD: status LED indicators and hour counter · ADV: microprocessor with 4-line LCD · PLC models: PLC with 4" or 7" ULTRATOUCH touchscreen |
| Communication | ADV: Modbus RTU · PLC models: Modbus TCP/IP, PROFINET [I-Device] |
| Analogue I/O (4–20 mA) | ADV: flow input, UV irradiance output · PLC models: flow input, UV dose output, UV intensity output [UVT input] |
| Logging and alarms | ADV: alarm log, UV intensity pre-alarm and alarm · PLC models: alarm, event and data log (UV dose, UV intensity, flow), actual and target UV dose on HMI, UV dose pre-alarm and alarm |
| External wiring | PLC models: remote ON/OFF, safety ON/OFF, system status, alarm |
| Cabinet | GFRP [SS304 / SS316] · wall-mounted, ambient 0–40 °C · single-lamp models: IP65, passive cooling [fan / AC / heat exchanger] · PLC models: IP54 [IP65], fan with filter [AC / heat exchanger] |
| Power supply | 1 × 230 VAC ±10% +N+PE 50/60 Hz · MR8-350SS and above: 3 × 400 VAC ±10% +N+PE 50/60 Hz |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
