ULTRAAQUA · HIGH-FLOW MEDIUM-PRESSURE UV DISINFECTION
ULTRATRON™ Series
Compact medium-pressure UV systems for high flows where space is tight and high lamp power density is needed.
Pricing on request.
Overview

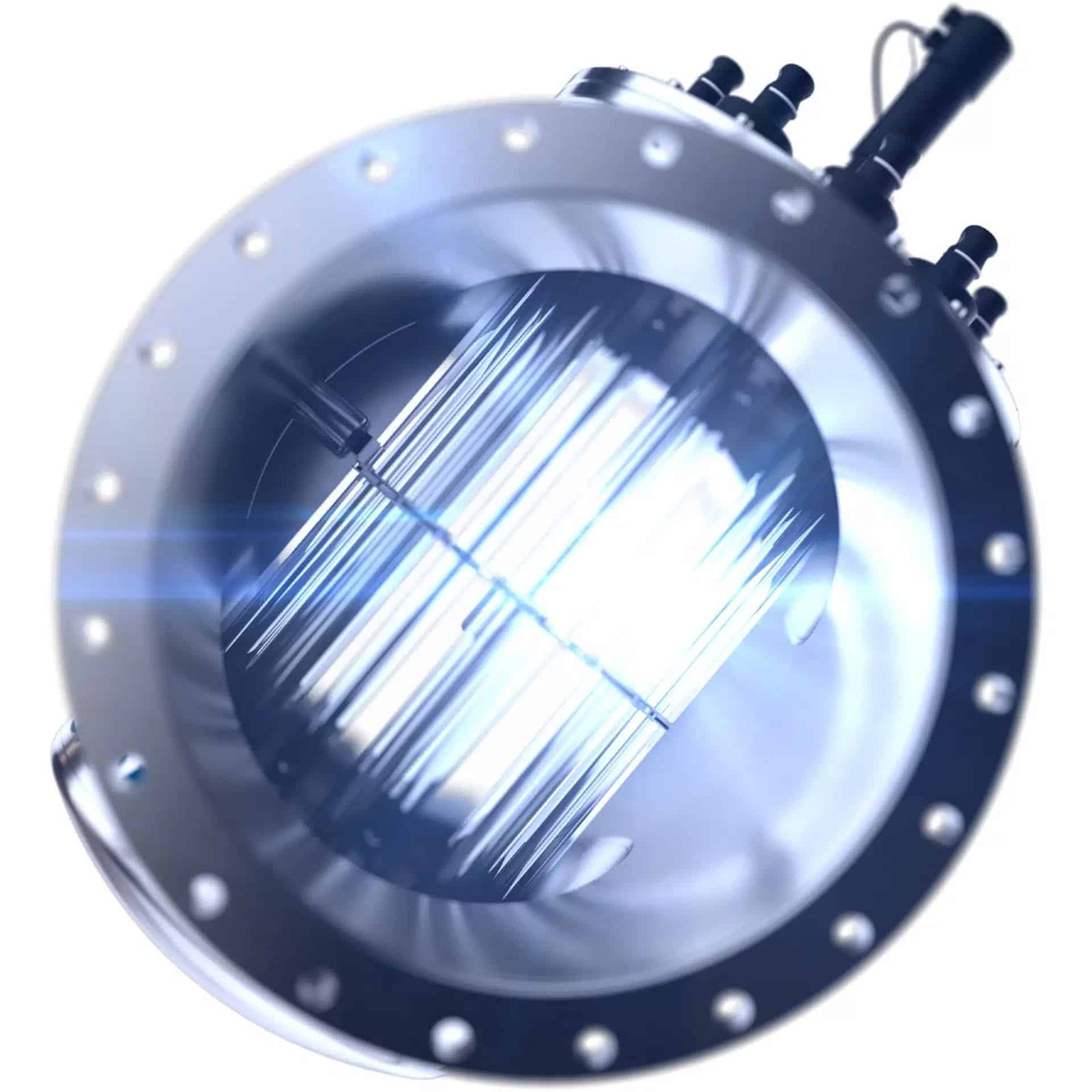

The ULTRATRON™ series uses ULTRATHERM medium-pressure high-intensity (MPHI) lamps, which deliver a large UV output from a small reactor. This makes the series a strong choice for high-flow lines and for retrofits where floor space or pump capacity is limited. The compact reactor and CFD-optimised lamp positions give high hydraulic efficiency with minimal head loss.

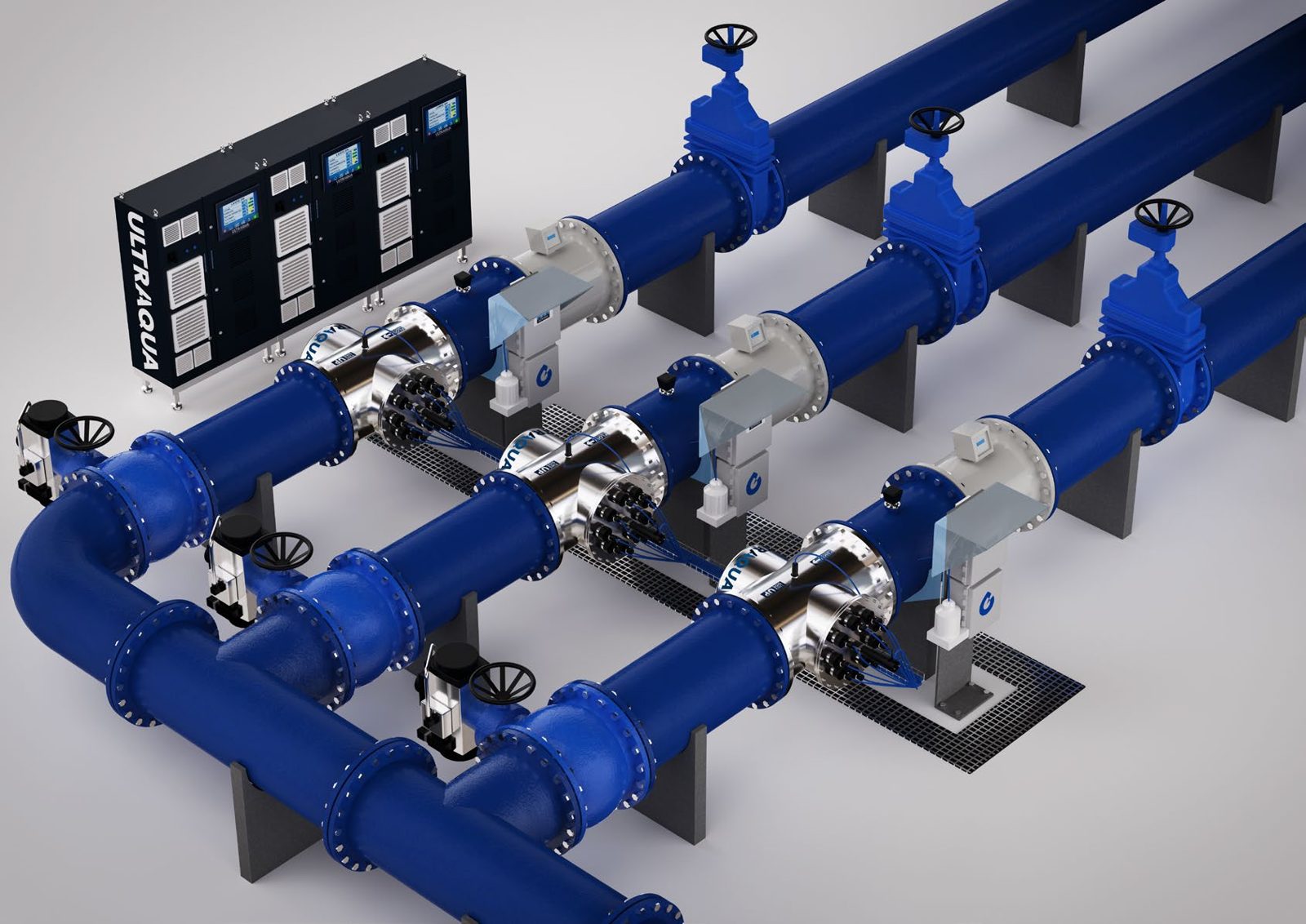

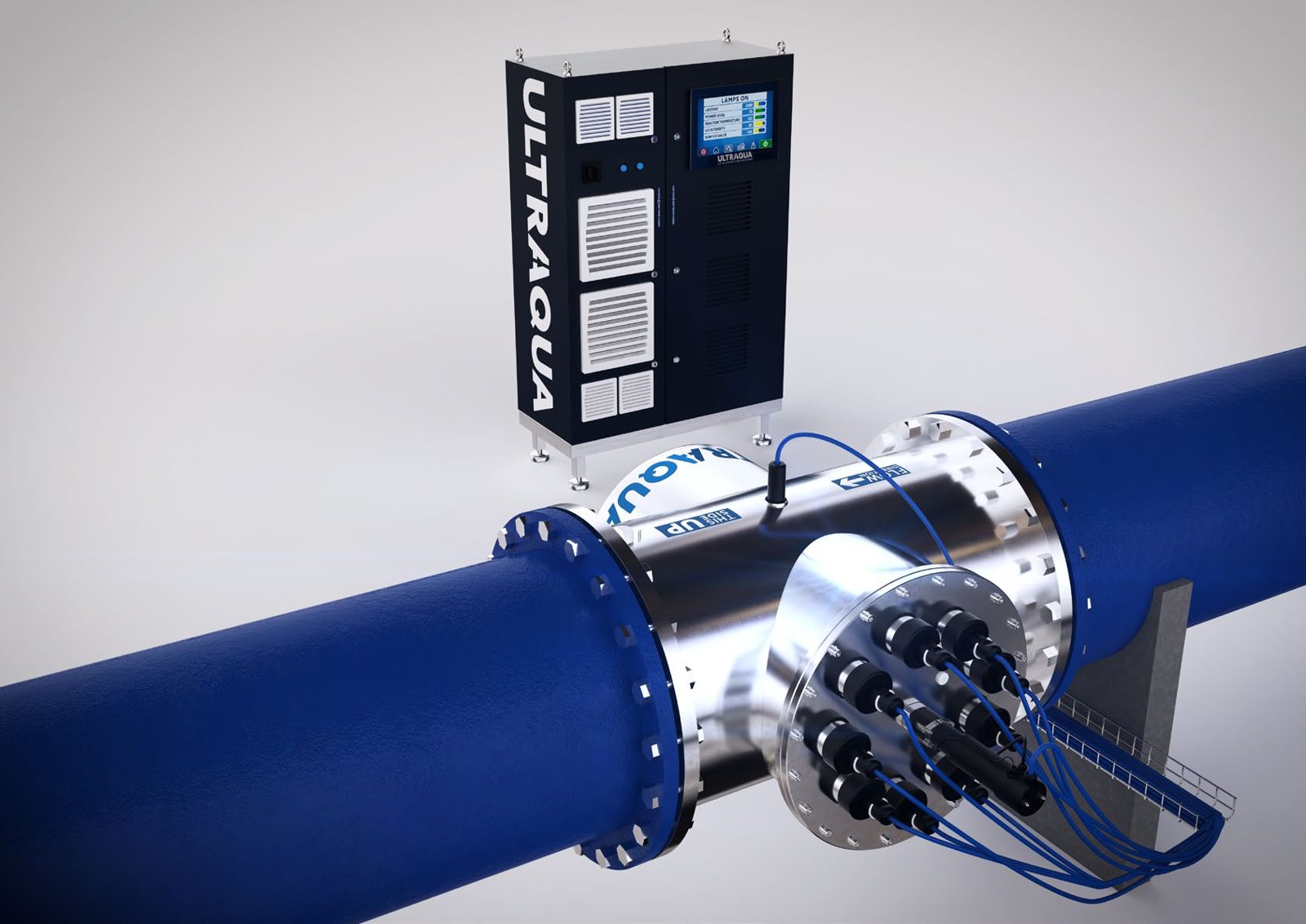

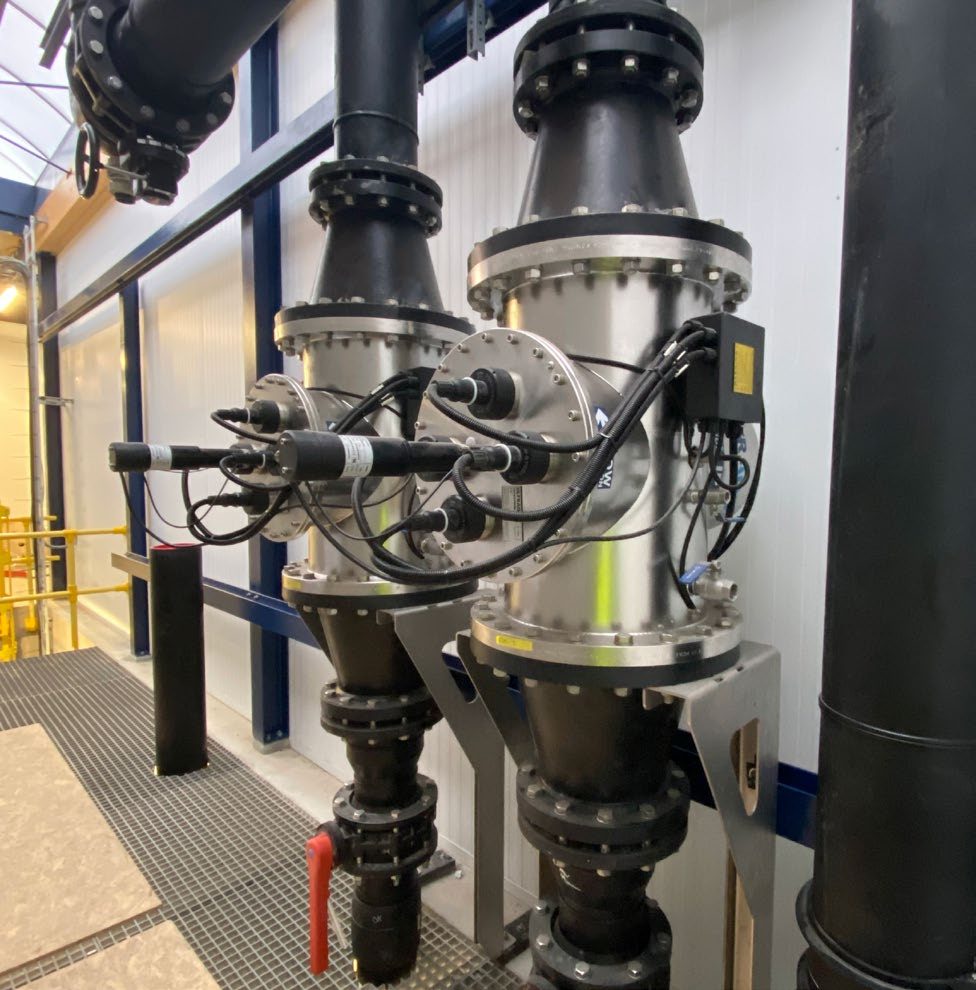

The flanged reactor installs vertically or horizontally and fits into existing pipework, so it can be retrofitted at almost any scale.
Ozone UV Solutions supplies ULTRATRON™ systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- ULTRATHERM MPHI lamps from 600 W to 12,000 W per lamp, with a rated life of 9,000 hours
- Compact SS316L reactor, electropolished inside and out [Super Duplex on 4,000 W models and above]
- Sizes from 1 to 12 lamps with flanged connections from DN80 to DN800 [DN1200]
- ÖNORM M5873 certified UV intensity sensor and ULTRADOSE dose pacing down to 20% of lamp power
- Automatic ULTRAWIPER™ cleaning of the quartz sleeves and UV sensor
- Approved by the Norwegian Veterinary Institute (NVI); Siemens PLC with 7" ULTRATOUCH touchscreen
Typical applications
- Aquaculture: recirculating systems (RAS), intake water and wellboats
- Drinking water, and municipal and industrial wastewater including stormwater overflow (CSO)
- Cooling tower water, food and beverage, pharmaceutical, oil and gas, and horticulture
Models and specifications
600 W and 2,500 W lamp models
| Model | UV lamps | Lamp power | Connection | Design pressure | Power | Reactor dry weight | Reactor volume |
|---|---|---|---|---|---|---|---|
| MP1-600SS | 1 | 600 W | DN80 (ANSI 3) | 10 bar | 0.8 kW | 19 kg | 24 L |
| MP2-600SS | 2 | 600 W | DN100 (ANSI 4) | 10 bar | 1.4 kW | 26 kg | 35 L |
| MP1-2500SS | 1 | 2,500 W | DN150 (ANSI 6) | 10 bar | 2.7 kW | 31 kg | 42 L |
| MP2-2500SS | 2 | 2,500 W | DN200 (ANSI 8) | 10 bar | 5.2 kW | 46 kg | 70 L |
4,000 W to 12,000 W lamp models
| Model | UV lamps | Lamp power | Connection | Design pressure | Power | Reactor dry weight | Reactor volume |
|---|---|---|---|---|---|---|---|
| MP2-4000SS | 2 | 4,000 W | DN300 (ANSI 12) | 10 bar [16 bar] | 8.2 kW | 74 kg | 51 L |
| MP3-4000SS | 3 | 4,000 W | DN300 (ANSI 12) | 10 bar [16 bar] | 12.2 kW | 75 kg | 51 L |
| MP4-4000SS | 4 | 4,000 W | DN300 (ANSI 12) | 10 bar [16 bar] | 16.2 kW | 76 kg | 51 L |
| MP4-6000SS | 4 | 6,000 W | DN450 (ANSI 18) | 10 bar [16 bar] | 24.2 kW | 183 kg | 157 L |
| MP6-6000SS | 6 | 6,000 W | DN450 (ANSI 18) | 10 bar [16 bar] | 36.2 kW | 186 kg | 157 L |
| MP8-6000SS | 8 | 6,000 W | DN450 (ANSI 18) | 10 bar [16 bar] | 48.2 kW | 189 kg | 157 L |
| MP6-8000SS | 6 | 8,000 W | DN600 (ANSI 24) | 10 bar [16 bar] | 48.2 kW | 316 kg | 362 L |
| MP8-8000SS | 8 | 8,000 W | DN600 (ANSI 24) | 10 bar [16 bar] | 64.2 kW | 322 kg | 362 L |
| MP9-8000SS | 9 | 8,000 W | DN600 (ANSI 24) | 10 bar [16 bar] | 72.2 kW | 325 kg | 362 L |
| MP6-12000SS | 6 | 12,000 W | DN800 (ANSI 32) [DN1200] | 6 bar [10 bar] | 72.2 kW | 645 kg | 694 L |
| MP8-12000SS | 8 | 12,000 W | DN800 (ANSI 32) [DN1200] | 6 bar [10 bar] | 96.2 kW | 651 kg | 694 L |
| MP10-12000SS | 10 | 12,000 W | DN800 (ANSI 32) [DN1200] | 6 bar [10 bar] | 120.2 kW | 663 kg | 694 L |
| MP12-12000SS | 12 | 12,000 W | DN800 (ANSI 32) [DN1200] | 6 bar [10 bar] | 144.8 kW | 669 kg | 694 L |
Control cabinet by model
| Models | Cabinet size (H×W×D mm) | Mounting | Power supply |
|---|---|---|---|
| MP1-600SS, MP2-600SS | 800×600×260 | Wall-mounted | 1 × 208/230 VAC |
| MP1-2500SS, MP2-2500SS | 800×800×300 | Wall-mounted | 1 × 208/230 VAC |
| MP2-4000SS, MP3-4000SS | 1000×800×400 | Wall-mounted | 3 × 400 VAC |
| MP4-4000SS | 1000×800×400 | Floor-standing | 3 × 400 VAC |
| MP4-6000SS, MP6-6000SS, MP8-6000SS | 1600×600×600 | Floor-standing | 3 × 400 VAC |
| MP6-8000SS | 2000×600×600 | Floor-standing | 3 × 400 VAC |
| MP8-8000SS | 1600×1200×600 | Floor-standing | 3 × 400 VAC |
| MP9-8000SS and all 12,000 W models | 2000×1200×600 | Floor-standing | 3 × 400 VAC |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM medium-pressure high-intensity (MPHI) |
| Rated lamp life | 9,000 hours |
| UV monitoring | UV intensity sensor, ÖNORM M5873 certified, SS316L |
| Power control | ULTRADOSE dose pacing: 30–100% (600 W and 2,500 W models) · 20–100% (4,000 W models and above) |
| Approvals | Norwegian Veterinary Institute (NVI), CE [UL / Marine DNV] |
| UV CHAMBER | |
| Chamber material | 600 W and 2,500 W: SS316L · 4,000 W and above: SS316L / 1.4404 [Super Duplex]; electropolished inside and out |
| Connection type | 600 W and 2,500 W: PN10 (ANSI Class 150) [other flanges on request] · 4,000 W to 8,000 W: EN 1092 Type 01A PN10 (ANSI Class 150) [PN16 (ANSI Class 300)] · 12,000 W: EN 1092 Type 01A PN6 (ANSI Class 125) [PN10 (ANSI Class 150)] |
| Quartz sleeves | High-purity fused quartz; transmittance > 95% on 4,000 W models and above |
| Cleaning | ULTRAWIPER™ automatic mechanical wiper: PTFE with 24 V DC electric motor (600 W and 2,500 W) · PTFE/fibre rings, electric drive (4,000 W and above) |
| Mounting / installation | Free-standing · [horizontal SS316 stand] on 4,000 W to 8,000 W models · [integrated stand] on 12,000 W models · horizontal or vertical installation · single-ended lamp and wiper access |
| Temperature probes | 2 × PT100; 600 W and 2,500 W models with thermal cut-out at 50 °C |
| Vent & drain ports | ½" BSP, plugged (600 W and 2,500 W) · 1" on both sides (4,000 W and above) |
| Other | IP65 · minor wetted parts PTFE, PVDF, FKM (600 W and 2,500 W) · FDA-approved PTFE, PVDF, Viton (4,000 W and above) |
| CONTROL CABINET | |
| Control logic / HMI | Siemens PLC [Allen-Bradley] · 7" ULTRATOUCH touchscreen |
| Communication | 600 W and 2,500 W: Modbus TCP/IP (Ethernet RJ45) · 4,000 W and above: Modbus TCP/IP, PROFINET |
| Analogue I/O (4–20 mA) | Flow input, UV dose output, UV intensity output [UVT input] |
| Logging | Alarms, events and data (UV dose, UV intensity, flow) |
| Cabinet | Powder-painted steel [SS304, SS316L on 600 W and 2,500 W; 316L on larger models] · IP54 [IP65 on MP2-4000SS to MP6-8000SS] · fan cooling [AC; heat exchanger on MP8-8000SS and above] · ambient 0–45 °C (600 W and 2,500 W) or 0–40 °C, non-condensing |
| Power supply | 600 W and 2,500 W: 1 × 208/230 VAC ±10% +N+PE 50/60 Hz · 4,000 W and above: 3 × 400 VAC ±10% +N+PE 50/60 Hz |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
