ULTRAAQUA · UV DISINFECTION FOR VERY LOW-UVT LIQUIDS
ULTRALOW ULU Series
Thin-film UV reactors for liquids with very low UV transmittance, such as liquid sugar, wine and salt brines.
Pricing on request.
Overview
Standard UV systems lose their effect when a liquid lets very little UV light through. The ULTRALOW ULU series is designed for fluids with a UV transmittance of only 2–15%, such as liquid sugar, wine and salt brines.
The gap between the reactor wall and the quartz sleeve is kept very small, so the liquid passes as a thin layer, is evenly exposed to UV light and receives an even dose at low energy input. The design is modular: reactors are connected in groups, from 2 up to 20, to suit the duty.
Ozone UV Solutions supplies ULTRALOW ULU systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Designed for fluids with very low UV transmittance (2–15%)
- Narrow-gap reactor geometry for even UV exposure at low energy input

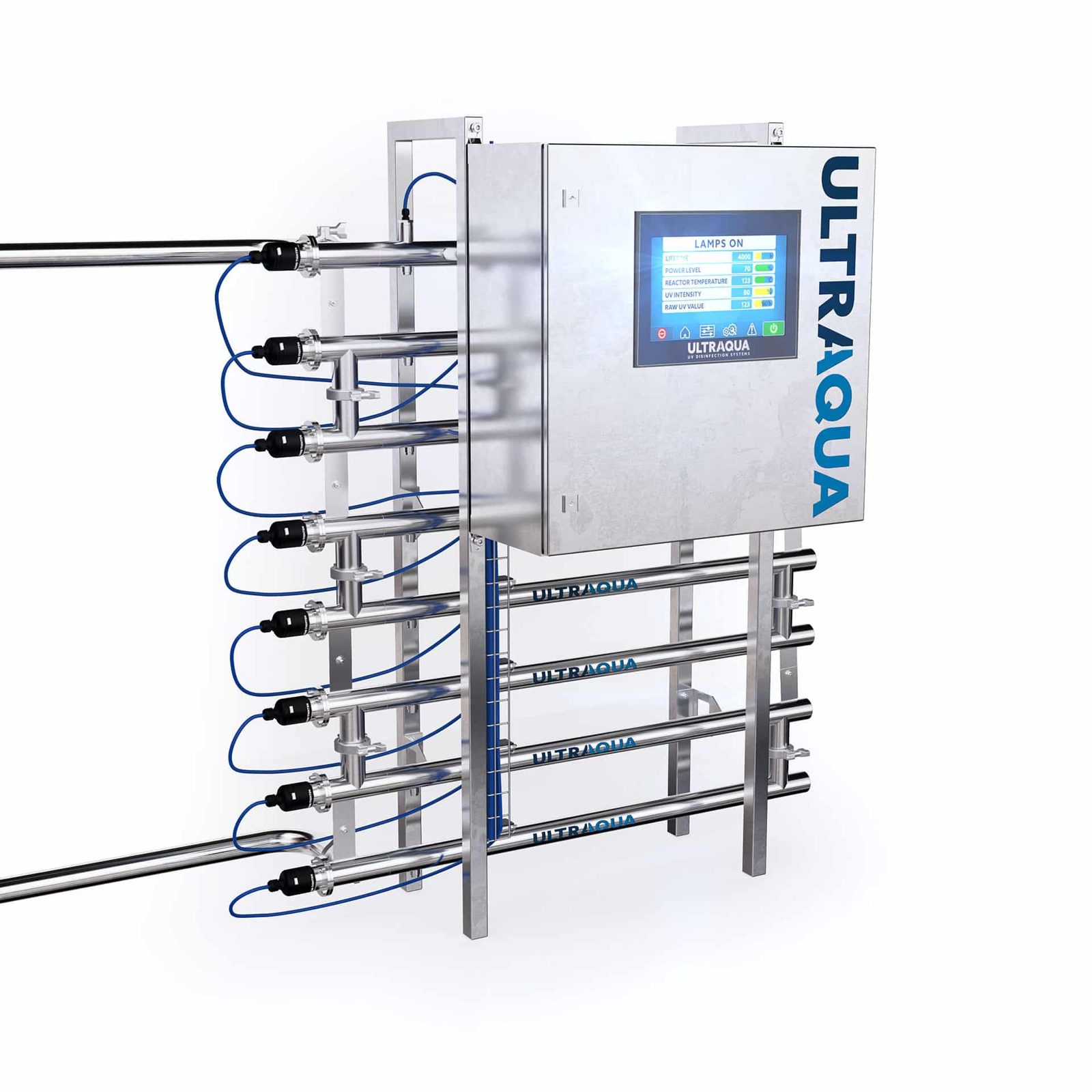

- Modular design, with reactors connected in groups to suit the flow
- Electropolished SS316L reactor with DN50 tri-clamp (DIN 32676) connections, design pressure 10 bar [16 bar]
- ULTRATHERM 220 W or 350 W low-pressure high-output amalgam lamps with a rated life of 16,000 hours
- PLC with 7" ULTRATOUCH touchscreen and ULTRADOSE dose pacing on models with three or more lamps
Typical applications
- Food and beverage: liquid sugar and syrups, wine, other beverages and salt brines
- Pharmaceutical, and microelectronics and semiconductor production
- Horticulture
Models and specifications
220 W lamp models

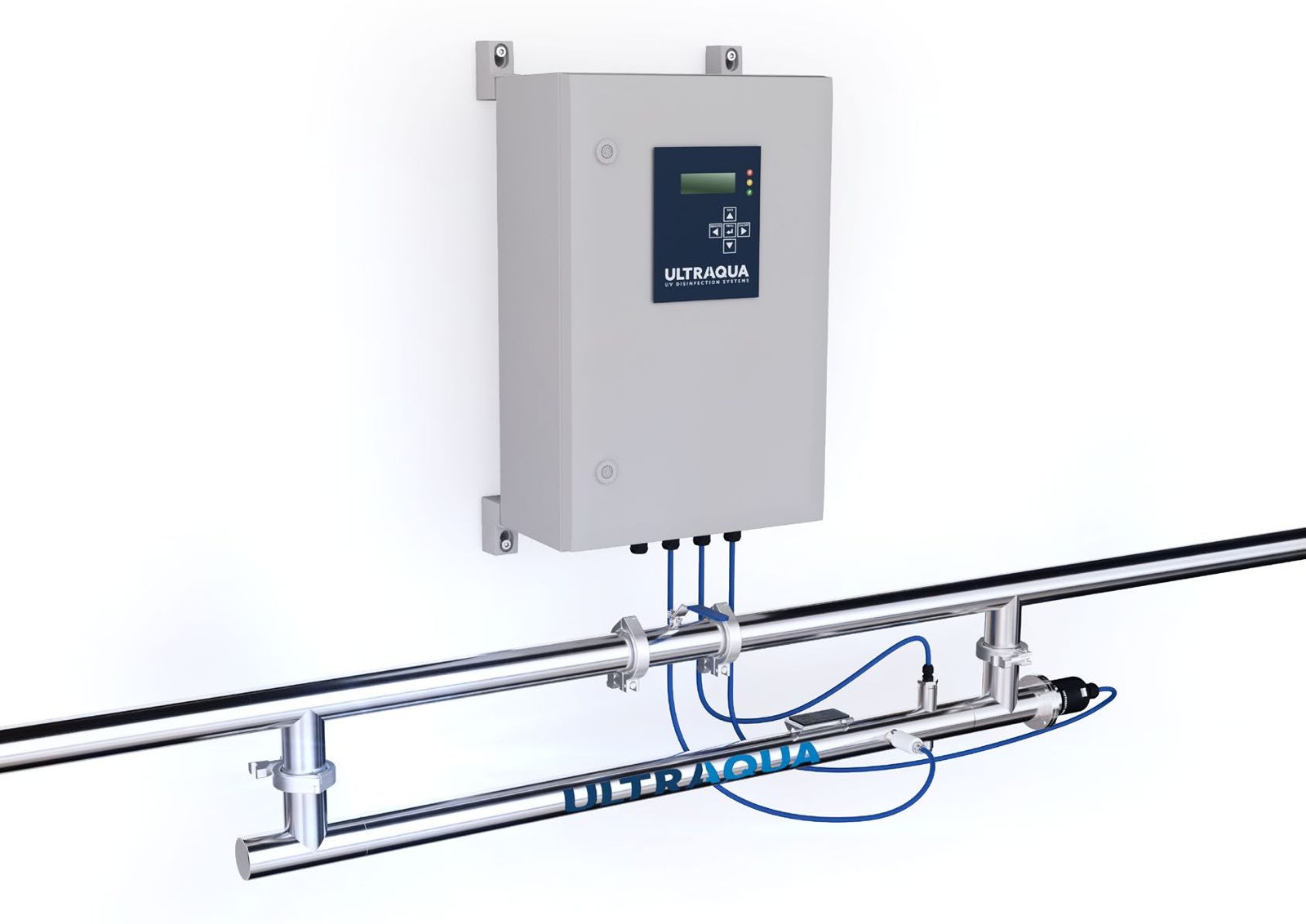

| Model | UV lamps | Power | Reactor dry weight | Reactor volume | Drain port | Controller |
|---|---|---|---|---|---|---|
| MR1-220SS STD ULU | 1 | 0.2 kW | 5 kg | 3 L | ¼" | STD – status LEDs |
| MR1-220SS ADV ULU | 1 | 0.2 kW | 5 kg | 3 L | ¼" | ADV – microprocessor, LCD |
| MR3-220SS ULU | 3 | 0.7 kW | 15 kg | 9 L | None | PLC – ULTRATOUCH |
| MR4-220SS ULU | 4 | 1.0 kW | 20 kg | 12 L | None | PLC – ULTRATOUCH |
| MR6-220SS ULU | 6 | 1.4 kW | 30 kg | 18 L | None | PLC – ULTRATOUCH |
| MR8-220SS ULU | 8 | 1.9 kW | 40 kg | 24 L | None | PLC – ULTRATOUCH |
350 W lamp models
| Model | UV lamps | Power | Reactor dry weight | Reactor volume | Drain port | Controller |
|---|---|---|---|---|---|---|
| MR1-350SS STD ULU | 1 | 0.4 kW | 7 kg | 4 L | ¼" | STD – status LEDs |
| MR1-350SS ADV ULU | 1 | 0.4 kW | 7 kg | 4 L | ¼" | ADV – microprocessor, LCD |
| MR3-350SS ULU | 3 | 1.1 kW | 12 kg | 12 L | None | PLC – ULTRATOUCH |
| MR4-350SS ULU | 4 | 1.5 kW | 16 kg | 16 L | None | PLC – ULTRATOUCH |
| MR6-350SS ULU | 6 | 2.3 kW | 24 kg | 24 L | None | PLC – ULTRATOUCH |
| MR8-350SS ULU | 8 | 3.0 kW | 32 kg | 32 L | None | PLC – ULTRATOUCH |
| MR12-350SS ULU | 12 | 4.5 kW | 48 kg | 48 L | None | PLC – ULTRATOUCH |
| MR16-350SS ULU | 16 | 6.0 kW | 64 kg | 64 L | None | PLC – ULTRATOUCH |
| MR18-350SS ULU | 18 | 6.8 kW | 72 kg | 72 L | None | PLC – ULTRATOUCH |
| MR20-350SS ULU | 20 | 7.5 kW | 80 kg | 80 L | None | PLC – ULTRATOUCH |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 220 W or 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | UV intensity sensor, ÖNORM M5873 certified, SS316L (all models except single-lamp STD) |
| Power control | ADV: variable power 50–100% · PLC models: ULTRADOSE automatic dose pacing 50–100% |
| Approvals | CE [UL / cUL] |
| UV CHAMBER | |
| Chamber material | SS316L / 1.4404, electropolished inside and out |

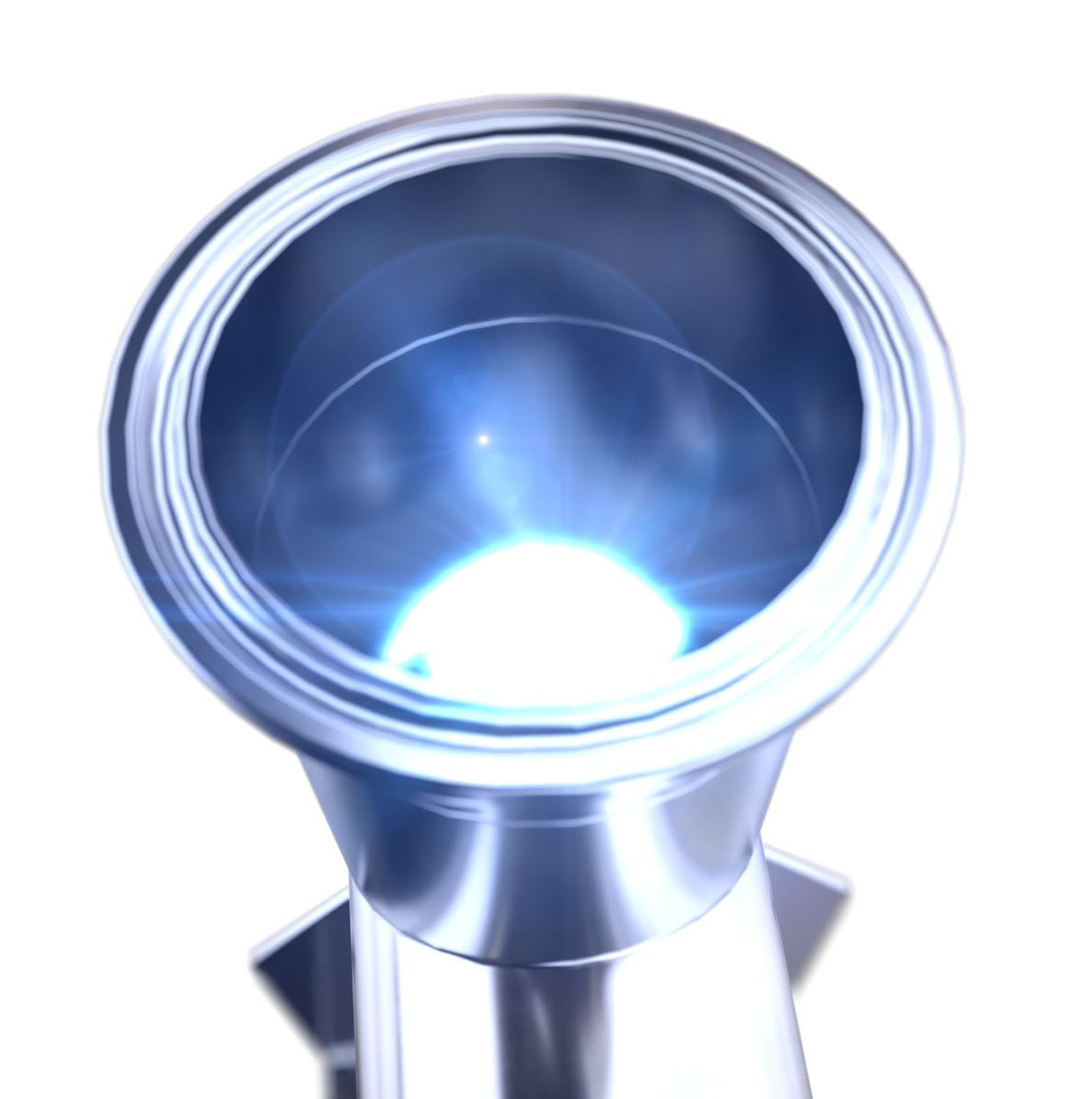

| Connections | Tri-clamp DN50 (2"), DIN 32676 |
| Design pressure | 10 bar [16 bar] |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | No automatic wiper |
| Access / installation | Single-ended lamp access · modular, horizontal installation · free-standing [skid mount] |
| Other | PT100 temperature probe · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | STD: status LED indicators and hour counter · ADV: microprocessor with 4-line LCD · PLC models: PLC with 7" ULTRATOUCH touchscreen |
| Communication | ADV: Modbus RTU · PLC models: Modbus TCP/IP, PROFINET [I-Device] |
| Analogue I/O (4–20 mA) | ADV: flow input, UV irradiance output · PLC models: flow input, UV dose output, UV intensity output [UVT input] (MR16 to MR20-350SS: flow input, UV dose output [UVT input]) |
| Logging and alarms | ADV: alarm log, UV intensity pre-alarm and alarm · PLC models: alarm, event and data log (UV dose, UV intensity, flow), actual and target UV dose on HMI, UV dose pre-alarm and alarm |
| External wiring | ADV and PLC models: remote ON/OFF, safety ON/OFF, system status, alarm |
| Cabinet | SS304 [GFRP / SS316] · wall-mounted, ambient 0–40 °C · single-lamp models: IP65, passive cooling [fan / AC / heat exchanger] · PLC models: IP54 [IP65], fan with filter [AC / heat exchanger] |
| Power supply | 1 × 230 VAC ±10% +N+PE 50/60 Hz · MR8-350SS ULU and above: 3 × 400 VAC ±10% +N+PE 50/60 Hz |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
