WEDECO · UV DISINFECTION FOR HOMES, BUSINESSES AND SMALL INDUSTRY
WEDECO Aquada Series
WEDECO Aquada is a compact single-lamp UV disinfection system for drinking water in homes, businesses and small industrial sites, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

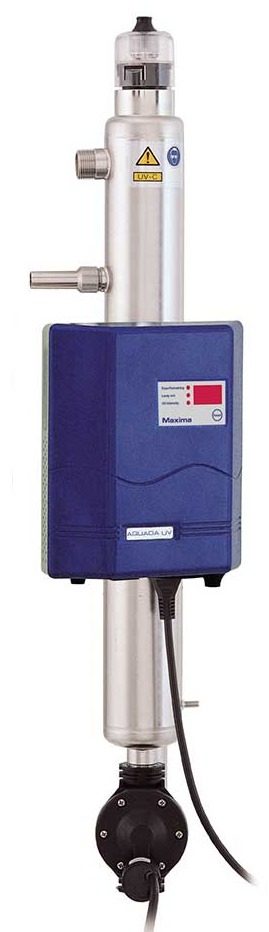

WEDECO Aquada is a compact UV system for disinfecting drinking water at the point of entry. It suits sites that draw water from their own source, such as a bore, tank or rainwater supply, or where mains water needs an extra barrier: homes, schools, restaurants, hotels, hospitals, campgrounds, cottages, yachts and recreational vehicles, as well as process water circuits, pools, fountains and air-conditioning systems. A single low-pressure lamp sits centrally in a polished stainless-steel chamber, and the system draws no more power than a household light bulb (35 to 85 W).
Ozone UV Solutions supplies Aquada systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Three equipment levels: Altima (economical), Proxima (micro-computer controller and alarms) and Maxima (adds UV intensity monitoring)
- Five sizes per level, from 0.73 to 10.1 m³/h at a UV dose of 400 J/m²
- Biodosimetrically tested by the Hygiene Institute of the University of Bonn
- Lamp change once a year; lamps and quartz sleeves fitted and removed without tools
- Power supply designed to run on electrical networks worldwide
- [Solenoid shut-off valve] on Proxima and Maxima stops the water supply on a fault
Typical applications
- Homes on bore, tank or rainwater supply
- Schools, restaurants, hotels, hospitals and other commercial buildings
- Campgrounds, cottages, yachts and recreational vehicles
- Process water circuits, private pools, fountains and air-conditioning systems
Models and specifications
Models: Aquada 1, Aquada 2, Aquada 4, Aquada 7, Aquada 10
Aquada sizes
| Model | Max. flow at 400 J/m² (m³/h)* | Max. flow at 300 J/m² (m³/h)* | Pipe connection | Power | Chamber H × W × D (mm) | Chamber weight |
|---|---|---|---|---|---|---|
| Aquada 1 | 0.73 | 0.98 | 1/2″ | 35 W | 470 × 90 × 70 | 1.7 kg |
| Aquada 2 | 1.85 | 2.47 | 3/4″ | 55 W | 670 × 95 × 70 | 2.4 kg |
| Aquada 4 | 3.24 | 4.32 | 3/4″ | 55 W | 675 × 129 × 102 | 3.2 kg |
| Aquada 7 | 6.70 | 9.00 | 1″ | 85 W | 1,035 × 132 × 102 | 5.0 kg |
| Aquada 10 | 10.10 | 13.4 | 1 1/2″ | 85 W | 1,040 × 180 × 140 | 9.0 kg |
Equipment levels
| Feature | Altima | Proxima | Maxima |
|---|---|---|---|
| Polished stainless-steel disinfection chamber | ● | ● | ● |
| High-intensity, long-life UV lamp | ● | ● | ● |
| Glow-cap lamp operation indicator | ● | ● | ● |

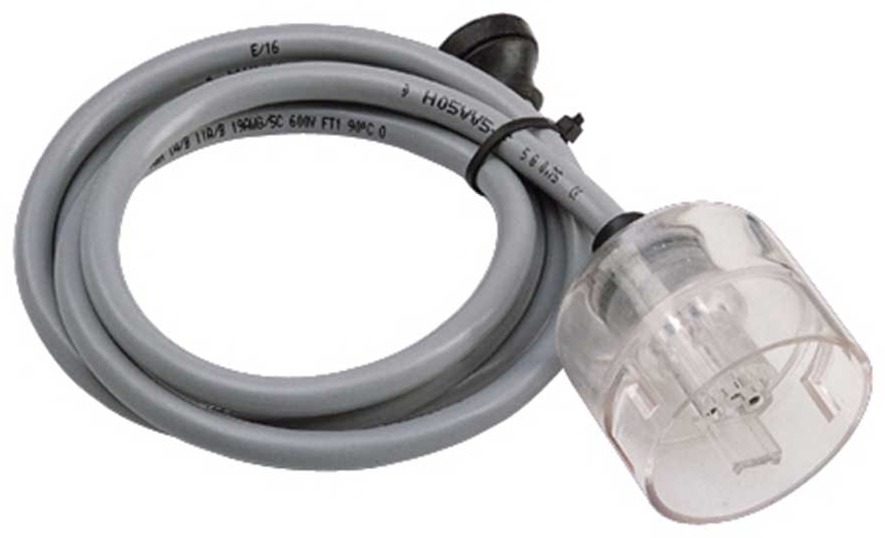

| Safe-T-Cap lamp connector system | ● | ● | ● |
| Micro-computer controller | – | ● | ● |
| Visual alarm display and audible alarm | – | ● | ● |
| Digital lamp-life display | – | ● | ● |
| Push-button alarm / controller reset | – | ● | ● |
| Power connection for [solenoid shut-off valve] | – | ● | ● |
| UV intensity monitor with digital display | – | – | ● |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO Aquada used for?
Aquada disinfects drinking water at the point of entry for homes on bore, tank or rainwater supply and for commercial buildings such as schools, restaurants, hotels and hospitals. It is also used for process water, pools, fountains, yachts and recreational vehicles, in five sizes up to 10.1 m³/h at 400 J/m².
Can you supply lamps and spare parts for WEDECO Aquada systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for Aquada systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply Aquada systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service an Aquada system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
