WEDECO · CLOSED-VESSEL UV FOR LARGE DRINKING WATER PLANTS
WEDECO K143 Series
WEDECO K143 is a high-capacity closed-vessel UV disinfection reactor for large municipal drinking water plants, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

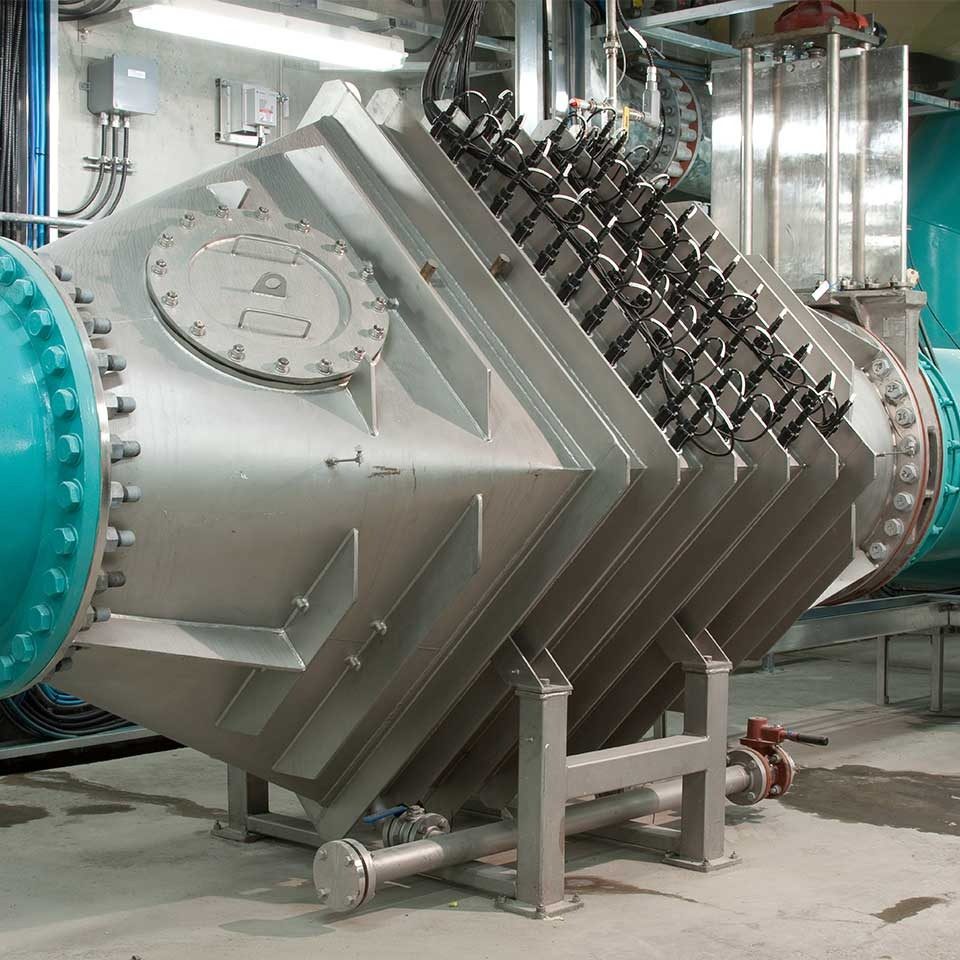

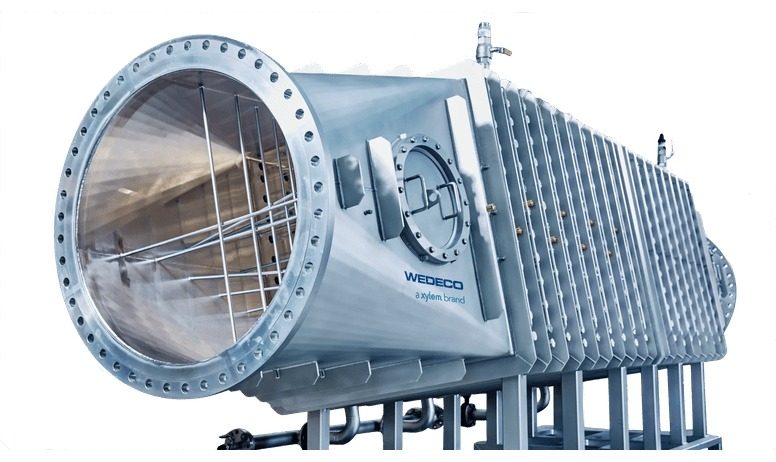

WEDECO K143 is a closed-vessel UV reactor for disinfecting drinking water at large municipal treatment plants. Each unit treats up to 6,300 m³/h, and rows of Ecoray low-pressure high-output lamps are arranged across the flow inside the vessel. The in-line installation keeps head loss very low. The K series is validated to the US EPA UVDGM (2006) over a wide UVT range and for target organisms including adenovirus, and treats water with UV transmittance as low as 70%. As a purely physical, chemical-free process, UV forms no disinfection by-products such as THMs or HAAs.
Ozone UV Solutions supplies K143 systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Up to 6,300 m³/h of drinking water per unit, with very low head loss from the in-line design
- Validated to the US EPA UVDGM (2006), including adenovirus; treats water down to 70% UVT
- Ecoray LPHO amalgam lamps, rated lamp life 14,000 hours; up to 20% average energy saving in dimmed mode
- OptiDose dose control with an ÖNORM-certified UV intensity sensor; lamp rows switch off at low demand
- 2 to 13 lamp rows per reactor, with room or flanges for adding rows later
- Offline cleaning system; PLC control and visualisation with bus or SCADA connection
Typical applications

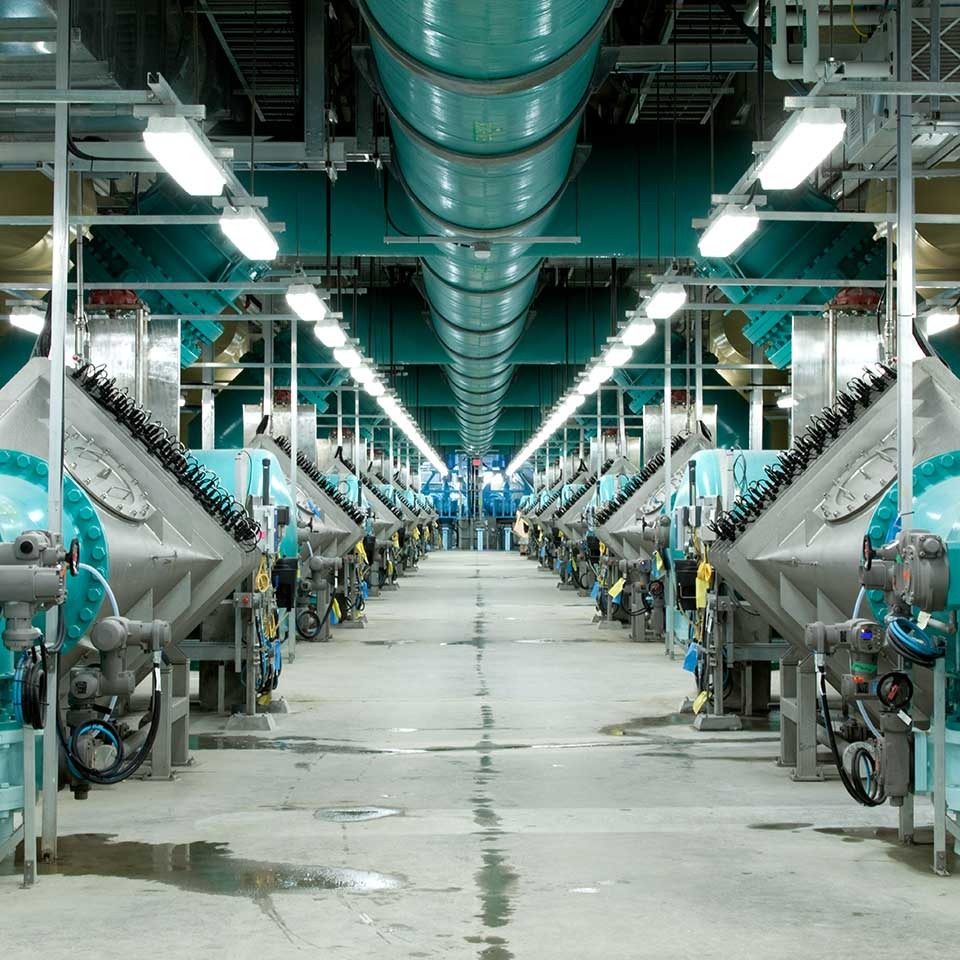

- Primary disinfection at large municipal drinking water plants
- Plants replacing or reducing chlorine disinfection
- Drinking water with UV transmittance down to 70%
Models and specifications
System configuration
| Design element | Options |
|---|---|
| Capacity per unit | Up to 6,300 m³/h |
| Lamp rows | 2 to 13 rows per reactor |
| Future expansion | Vessel with room for more rows, or flanges for adding rows later |
| Power control | Variable lamp output · [dose pacing with OptiDose] · row switching at low demand |
| Control | PLC with visualisation · bus or SCADA communication |

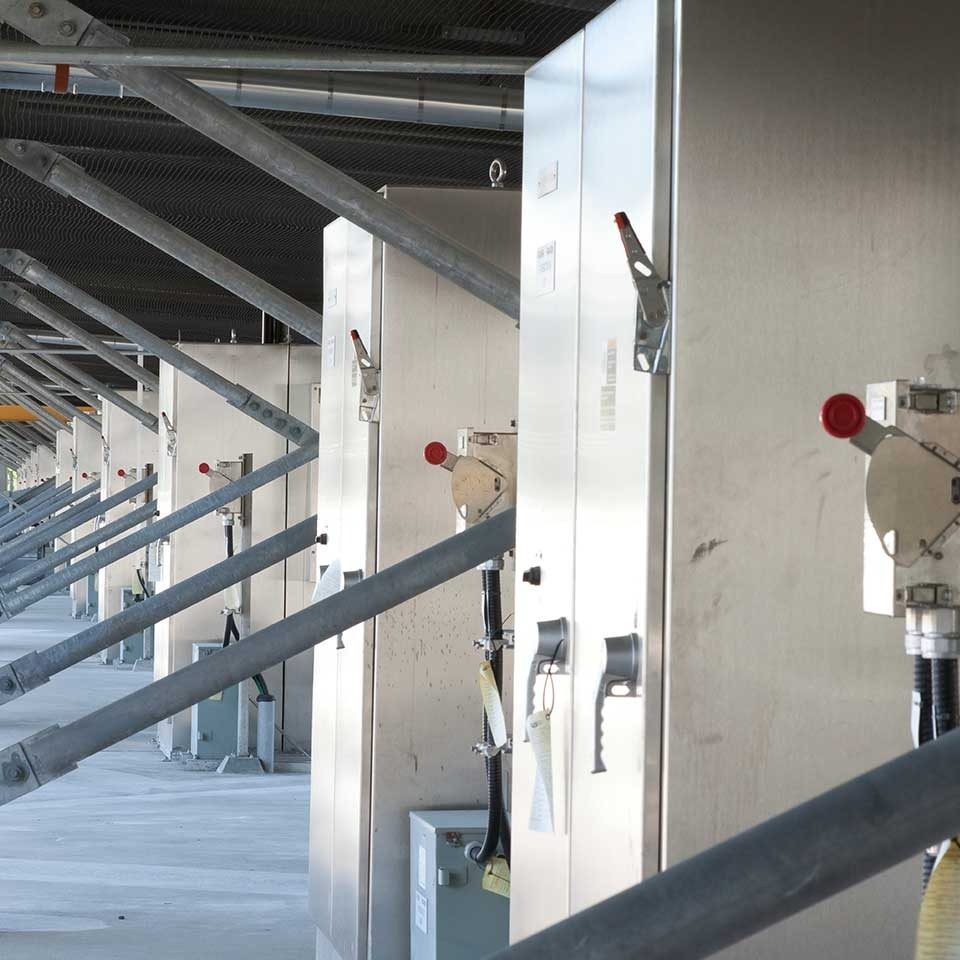

| Control cabinet | Indoor or outdoor · [stainless-steel enclosure] · [air conditioning] |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO K143 used for?
K143 disinfects drinking water at large municipal treatment plants, up to 6,300 m³/h per unit. It is validated to the US EPA UVDGM, including adenovirus, and treats water with UV transmittance down to 70%.
Can you supply lamps and spare parts for WEDECO K143 systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for K143 systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply K143 systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a K143 system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
