WEDECO · DRINKING WATER UV DISINFECTION
WEDECO Spektron Series
WEDECO Spektron is a closed-vessel UV disinfection system for drinking water and high-UVT industrial water, from small supplies to large municipal plants, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview
WEDECO Spektron is a closed-vessel UV range for disinfecting drinking water in public supply and industrial use. UV-C light inactivates bacteria, viruses and parasites such as Cryptosporidium and Giardia in a fraction of a second, without adding chemicals and without changing the taste or odour of the water. Sixteen standard sizes cover everything from small supplies to large municipal plants. The latest DIN 19294-1 certified models have reactors up to 50% shorter, for plant upgrades where space is tight.
Ozone UV Solutions supplies Spektron systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Disinfection performance certified and validated to DVGW, ÖNORM and the US EPA UV Disinfection Guidance Manual (UVDGM, 2006), depending on model; newest models certified to DIN 19294-1

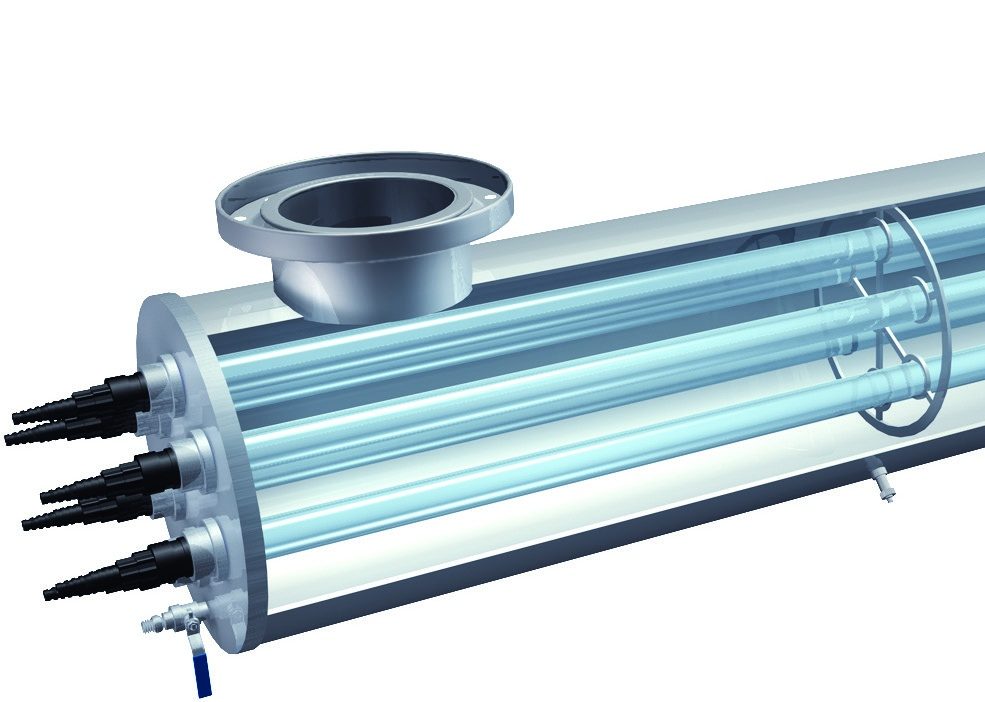

- Ecoray low-pressure high-output amalgam lamps up to 600 W, with a rated lamp life of 14,000 hours
- OptiDose dose pacing on variable-power models: lamp output follows water quality and flow (50–100% power)

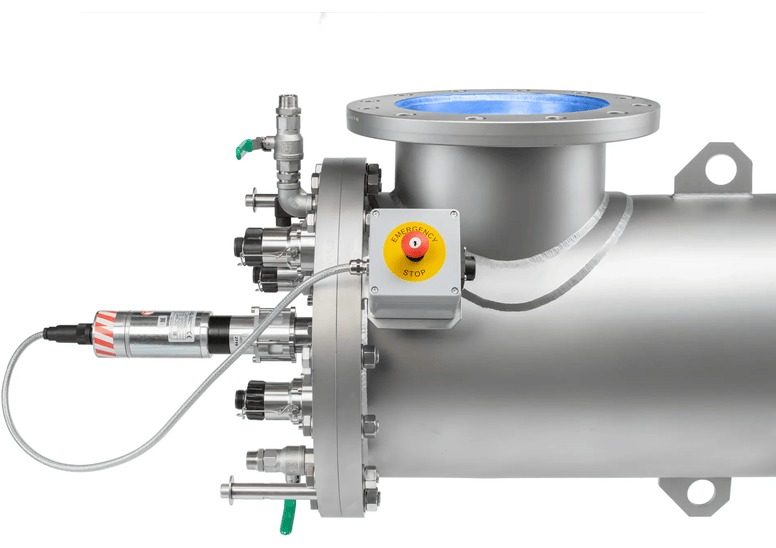

- ÖNORM-compliant UV intensity sensor and individual lamp monitoring

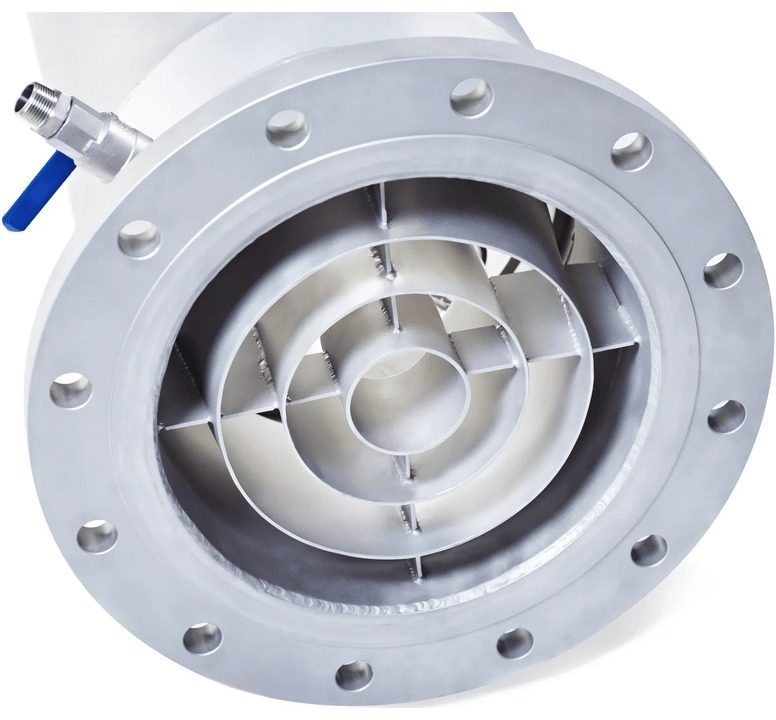

- OptiCone flow diverter for even hydraulics regardless of inlet piping; horizontal or vertical installation
- EcoTouch touch-panel controller with SCADA communication; PLC control available on larger models
Typical applications

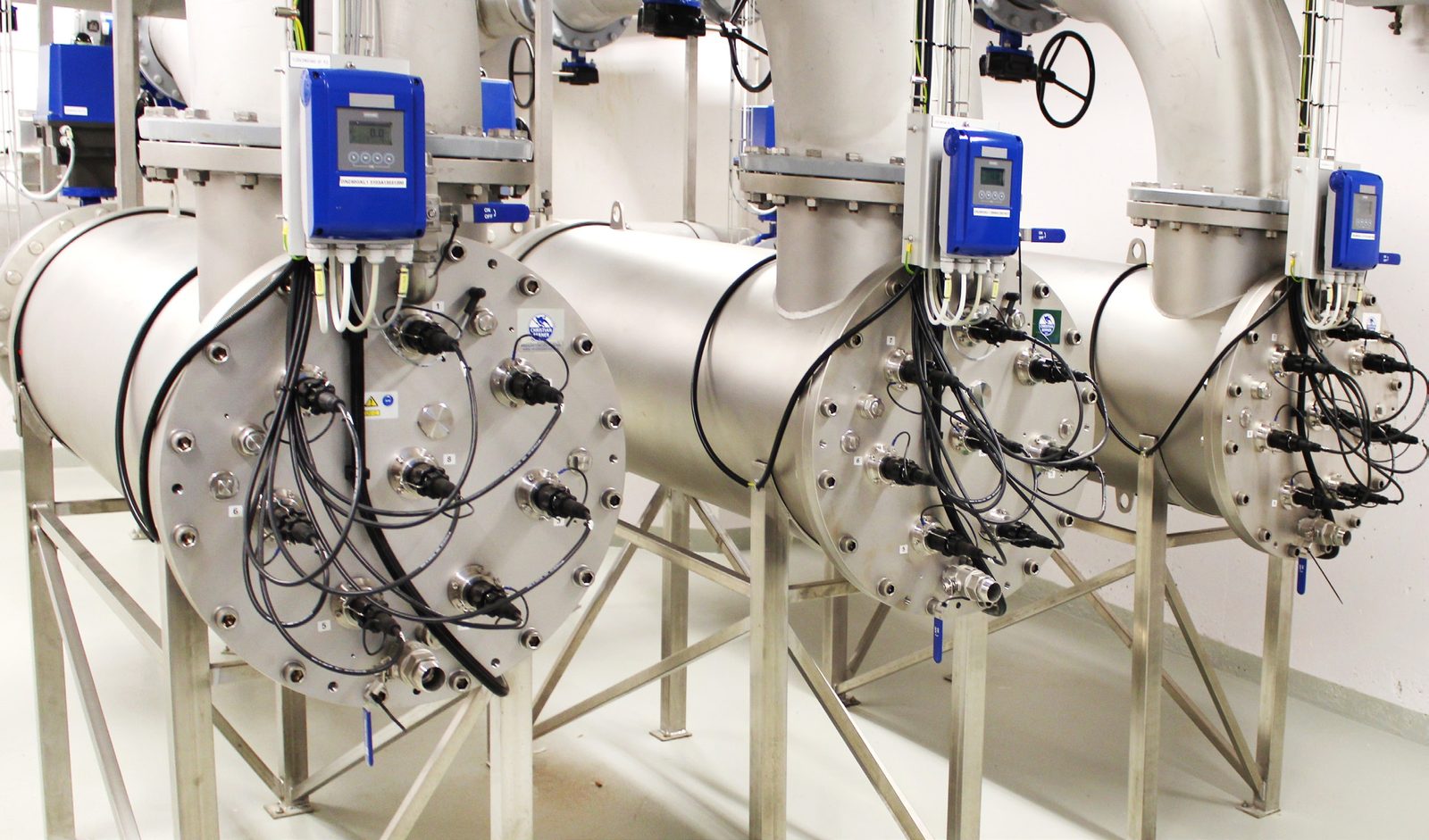

- Municipal drinking water supply, from small communities to large treatment plants
- Plant upgrades and retrofits where installation space is limited
- Industrial and process water with high UV transmittance
Models and specifications
Models: Spektron 2e, Spektron 5e, Spektron 10e, Spektron 15, Spektron 25, Spektron 30e, Spektron 50e, Spektron 75e, Spektron 90e, Spektron 180e, Spektron 250e, Spektron 350e, Spektron 650e, Spektron 900e, Spektron 2000e, Spektron 4000e
Performance and lamps
| Model | Max. flow (m³/h)* | UVT range (%) | UV lamps | Power per lamp | Lamp type | Power consumption (approx.) |
|---|---|---|---|---|---|---|
| Spektron 2e | 6.6 | 70–98 | 1 | 50 W | Ecoray | 0.10 kW |
| Spektron 5e | 10 | 70–98 | 1 | 70 W | Ecoray | 0.12 kW |
| Spektron 10e | 18 | 70–98 | 1 | 120 W | Ecoray | 0.17 kW |
| Spektron 15 | 20 | 70–98 | 1 | 210 W | Spektrotherm | 0.42 kW |
| Spektron 25 | 42 | 70–98 | 1 | 300 W | Spektrotherm | 0.53 kW |
| Spektron 30e | 49 | 70–98 | 1 | 290 W | Ecoray | 0.38 kW |
| Spektron 50e | 101 | 70–98 | 2 | 290 W | Ecoray | 0.70 kW |
| Spektron 75e | 130 | 60–98 | 4 | 290 W | Ecoray | 1.34 kW |
| Spektron 90e | 152 | 70–98 | 3 | 230 W | Ecoray | 0.78 kW |
| Spektron 180e | 223 | 70–98 | 3 | 290 W | Ecoray | 1.03 kW |
| Spektron 250e | 390 | 70–98 | 4 | 290 W | Ecoray | 1.34 kW |
| Spektron 350e | 670 | 70–98 | 6 | 290 W | Ecoray | 2.2 kW |
| Spektron 650e | 1,247 | 70–98 | 8 | 290 W | Ecoray | 2.8 kW |
| Spektron 900e | 1,795 | 70–98 | 12 | 290 W | Ecoray | 4.0 kW |
| Spektron 2000e | 3,020 | 70–98 | 12 | 600 W | Ecoray | 7.6 kW |
| Spektron 4000e | 6,032 | 70–98 | 24 | 600 W | Ecoray | 15.1 kW |
Reactor and certification
| Model | Flange (DN / ANSI) | Reactor length A (mm)** | Max. pressure | Sleeve cleaning | Certified / validated |
|---|---|---|---|---|---|
| Spektron 2e | DN40 | 430 | 16 bar | Manual | DVGW · ÖNORM |
| Spektron 5e | DN50 | 520 | 16 bar | Manual | DVGW · ÖNORM |
| Spektron 10e | DN65 | 770 | 16 bar | Manual | DVGW · ÖNORM |
| Spektron 15 | DN65 | 1,340 | 16 bar | Manual | DVGW · ÖNORM |
| Spektron 25 | DN80 | 1,660 | 16 bar | Manual | DVGW · ÖNORM |
| Spektron 30e | DN80 / 3″ | 1,660 | 10 bar | Manual [automatic wiping] | ÖNORM |
| Spektron 50e | DN100 / 4″ | 1,665 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM |
| Spektron 75e | DN150 | 1,530 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM |
| Spektron 90e | DN125 / 5″ | 1,607 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM |
| Spektron 180e | DN150 / 6″ | 2,010 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM |
| Spektron 250e | DN200 / 8″ or DN300 / 12″ | 2,061 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM · UVDGM |
| Spektron 350e | DN250 / 10″ or DN350 / 14″ | 2,283 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM · UVDGM |
| Spektron 650e | DN300 / 12″ or DN450 / 18″ | 2,501 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM · UVDGM |
| Spektron 900e | DN350 / 14″ or DN500 / 20″ | 2,389 | 10 bar | Manual [automatic wiping] | DVGW · ÖNORM · UVDGM |
| Spektron 2000e | DN500 / 20″ | 2,711 | 10 bar | Manual [automatic wiping] | DVGW · UVDGM |
| Spektron 4000e | DN700 / 28″ | 2,732 | 10 bar | Manual [automatic wiping] | DVGW · UVDGM |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO Spektron used for?
Spektron systems disinfect drinking water in public supply, from small communities to large treatment plants, as well as industrial and process water with high UV transmittance. Models are certified or validated to DVGW, ÖNORM and the US EPA UVDGM depending on size, and the newest models to DIN 19294-1.
Can you supply lamps and spare parts for WEDECO Spektron systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for Spektron systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply Spektron systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a Spektron system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
Replaces WEDECO BX – we also service and supply parts for existing BX systems
