ULTRAAQUA · UV DISINFECTION FOR LOW-TRANSMITTANCE WATER
LOW UVT Series
UV systems with SWIRLFLOW™ hydraulics for wastewater, reuse water and other water with low UV transmittance.
Pricing on request.
Overview
Turbid or coloured water, as found in wastewater treatment, absorbs much of the UV light, and a standard reactor can leave poorly irradiated zones. The LOW UVT series is designed for exactly these conditions, in municipal and industrial secondary treatment and reuse applications.
Its SWIRLFLOW™ hydraulics lengthen the time pathogens spend in the UV field and remove the dark areas where untreated organisms could pass, while energy demand stays low.
Ozone UV Solutions supplies LOW UVT systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features

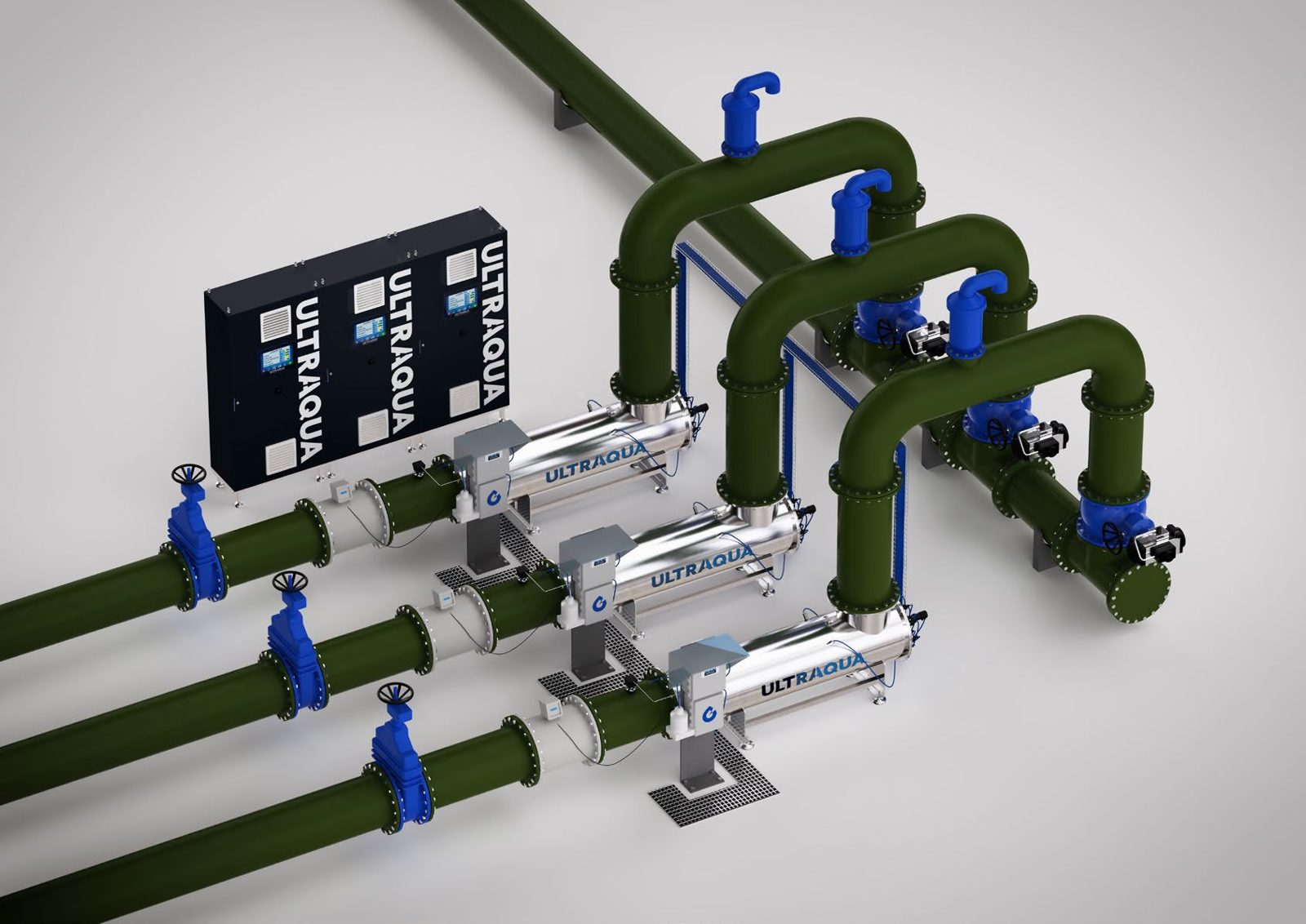

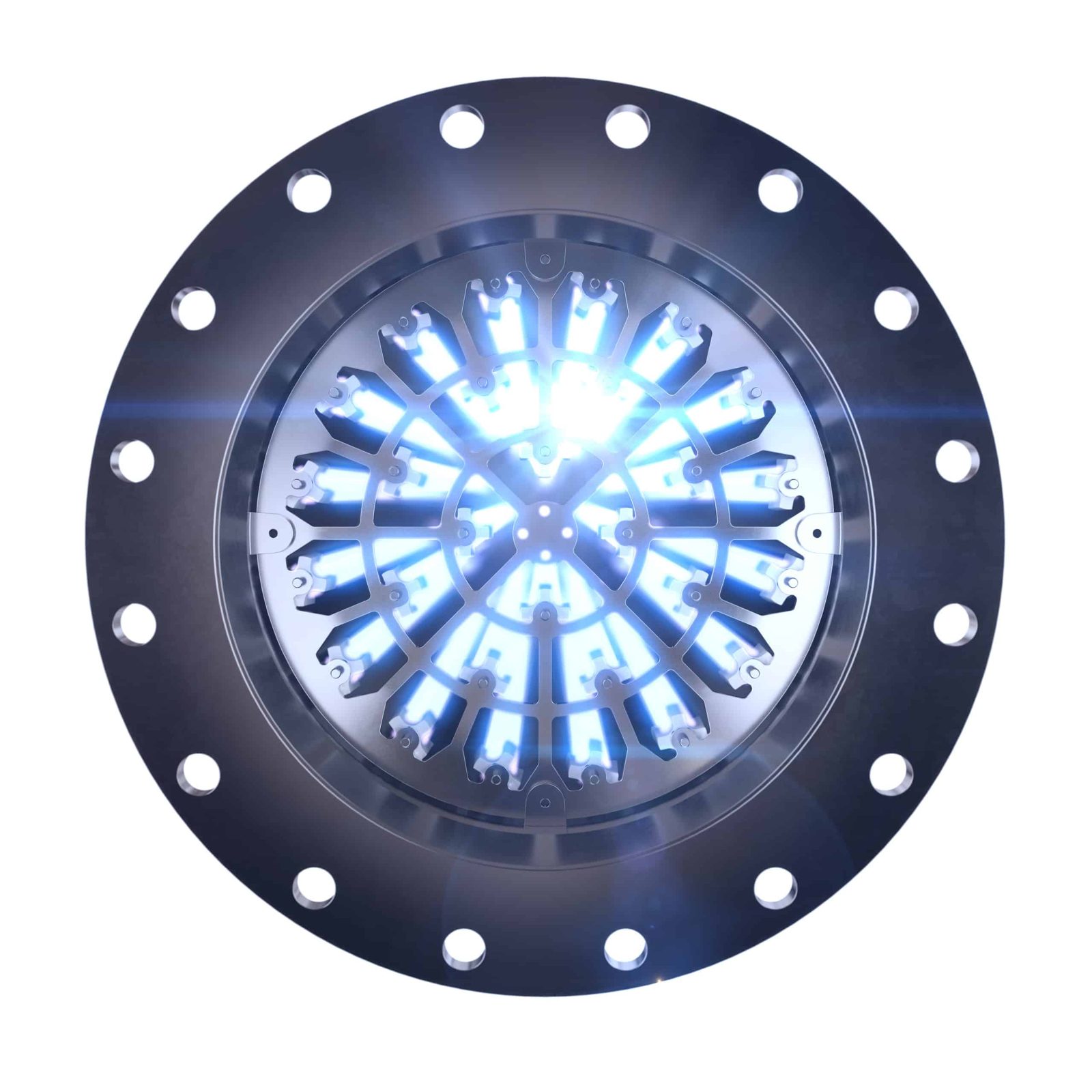

- SWIRLFLOW™ hydraulic design for even UV exposure without dark zones

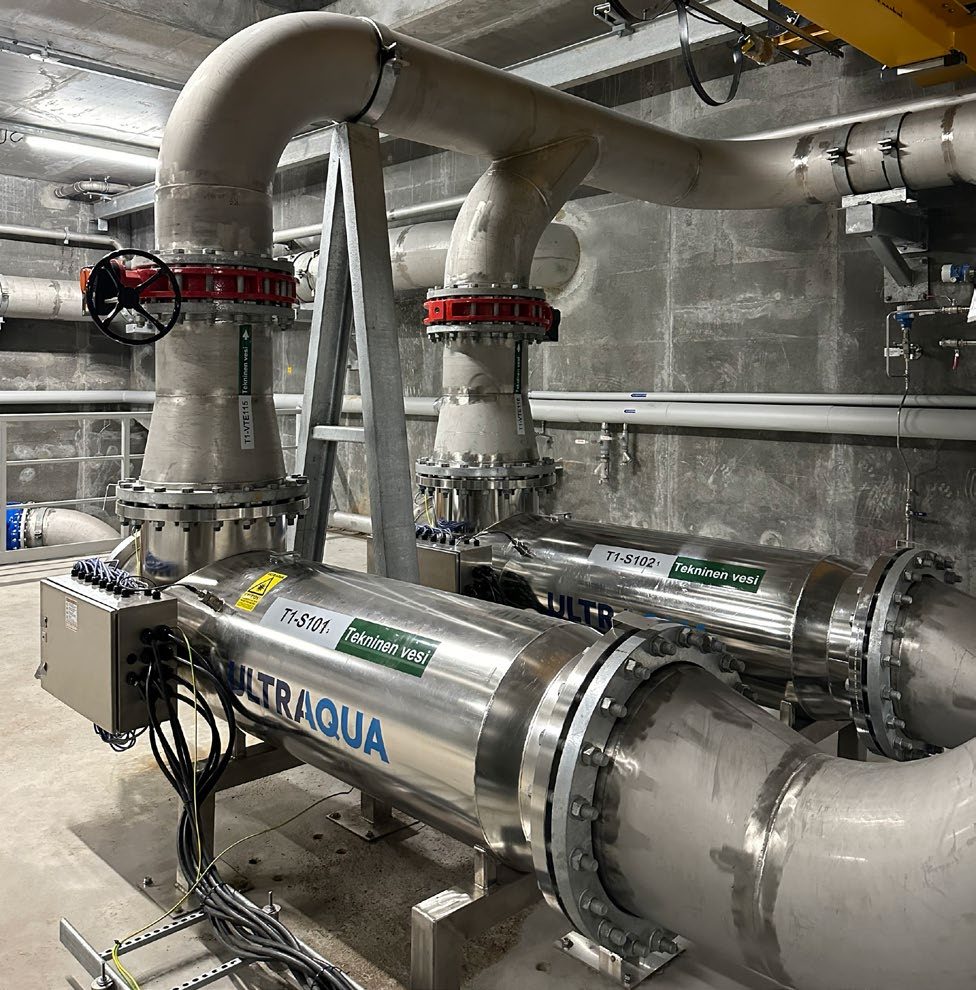

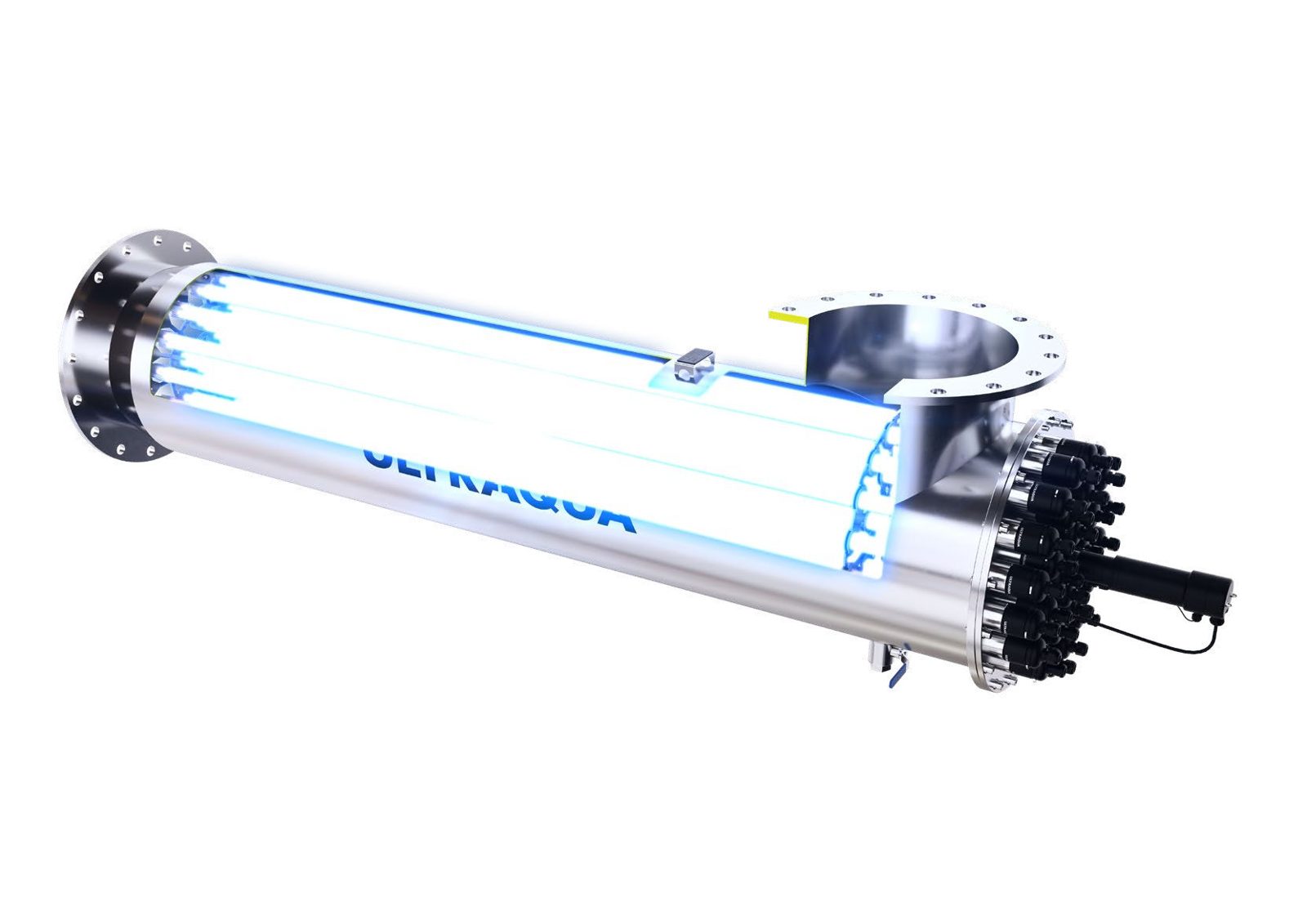

- Electropolished SS316L reactor [Super Duplex], design pressure 10 bar [16 bar]; 6 bar [10 bar] on MR44 and MR56
- ULTRATHERM 350 W low-pressure high-output amalgam lamps with a rated life of 16,000 hours
- Sizes from 1 to 56 lamps with flanged connections from DN100 to DN500
- ÖNORM M5873 certified UV intensity sensor and automatic ULTRADOSE dose pacing (50–100%)
- Automatic ULTRAWIPER™ cleaning and PLC with 7" ULTRATOUCH touchscreen on models with four or more lamps
Typical applications
- Municipal and industrial wastewater, including secondary treatment and reuse
- Stormwater overflow (CSO) and landfill leachate
- Cooling tower water, oil and gas, and horticulture
Models and specifications
LOW UVT models
| Model | UV lamps (350 W) | Connection | Design pressure | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|---|
| MR1-350SS | 1 | DN100 (ANSI 4) | 10 bar [16 bar] | 0.4 kW | 38 kg | 31 L | Microprocessor |
| MR4-350SS | 4 | DN100 (ANSI 4) | 10 bar [16 bar] | 1.5 kW | 58 kg | 67 L | PLC |
| MR6-350SS | 6 | DN150 (ANSI 6) | 10 bar [16 bar] | 2.3 kW | 66 kg | 73 L | PLC |
| MR8-350SS | 8 | DN150 (ANSI 6) | 10 bar [16 bar] | 3.0 kW | 91 kg | 117 L | PLC |
| MR12-350SS | 12 | DN200 (ANSI 8) | 10 bar [16 bar] | 4.5 kW | 119 kg | 182 L | PLC |
| MR18-350SS | 18 | DN300 (ANSI 12) | 10 bar [16 bar] | 6.8 kW | 172 kg | 293 L | PLC |
| MR28-350SS | 28 | DN400 (ANSI 16) | 10 bar [16 bar] | 10.5 kW | 197 kg | 368 L | PLC |
| MR44-350SS | 44 | DN500 (ANSI 20) | 6 bar [10 bar] | 16.5 kW | 322 kg | 584 L | PLC |
| MR56-350SS | 56 | DN500 (ANSI 20) | 6 bar [10 bar] | 21.0 kW | 370 kg | 646 L | PLC |
Control cabinet by model
| Model | Cabinet size (H×W×D mm) | Cabinet weight | Cabinet material | Power supply |
|---|---|---|---|---|
| MR1-350SS | 400×600×300 · wall | 10 kg | GFRP [SS304 / SS316] | 1 × 230 VAC |
| MR4-350SS | 800×600×300 · wall | 32 kg | GFRP [SS304 / SS316] | 1 × 230 VAC |
| MR6-350SS | 750×1000×320 · wall | 35 kg | GFRP [SS304 / SS316] | 1 × 230 VAC |
| MR8-350SS | 750×1000×320 · wall | 60 kg | GFRP [SS304 / SS316] | 3 × 400 VAC |
| MR12-350SS | 750×1000×320 · wall | 66 kg | GFRP [SS304 / SS316] | 3 × 400 VAC |
| MR18-350SS | 1000×1250×320 · wall | 101 kg | GFRP [SS304 / SS316] | 3 × 400 VAC |
| MR28-350SS | 1250×1250×420 · wall | 146 kg | GFRP [SS304 / SS316] | 3 × 400 VAC |
| MR44-350SS | 2200×1000×500 · floor | 305 kg | Powder-coated steel [SS304 / 316L] | 3 × 400 VAC |
| MR56-350SS | 2200×1000×500 · floor | 315 kg | Powder-coated steel [SS304 / 316L] | 3 × 400 VAC |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | UV intensity sensor, ÖNORM M5873 certified, SS316L |
| Power control | Automatic ULTRADOSE dose pacing, 50–100% |
| Approvals | CE [UL / cUL] |
| UV CHAMBER | |
| Chamber material | SS316L / 1.4404 [Super Duplex], electropolished inside, glass-blasted outside |
| Connection type | EN 1092 Type 01A PN10 (ANSI Class 150) [PN16 (ANSI Class 300)] |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | ULTRAWIPER™ automatic mechanical wiper with PTFE/fibre rings (electric drive) |
| Access / installation | Single-ended lamp and wiper access · horizontal or vertical installation · free-standing [horizontal SS316 stand] |
| Other | PT100 temperature probe · 1" drain port · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | MR1-350SS: microprocessor with 4-line LCD · other models: PLC with 7" ULTRATOUCH touchscreen |
| Communication | MR1-350SS: Modbus RTU · other models: Modbus TCP/IP, PROFINET |
| Analogue I/O (4–20 mA) | MR1-350SS: flow input, UV irradiance output · other models: flow input, UV dose output, UV intensity output [UVT input] |
| External wiring | MR1-350SS: remote ON/OFF, system status, alarm and warning · other models: remote ON/OFF, safety ON/OFF, system status, pre-alarm and alarm |
| Logging | MR1-350SS: alarms · other models: alarms, events and data (UV dose, UV intensity, flow), actual and target UV dose on HMI |
| Installation & cooling | MR1-350SS: wall-mounted, 0–40 °C, IP65, passive cooling [fan / AC / heat exchanger] · other models: 0–40 °C non-condensing, IP54 [IP65], fan with filter [AC / heat exchanger] |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
