ULTRAAQUA · OPEN CHANNEL UV DISINFECTION FOR WASTEWATER
OPEN CHANNEL VERTICAL Series
Modular open channel UV systems with vertical lamp banks and a sealed top compartment for service while submerged.
Pricing on request.
Overview

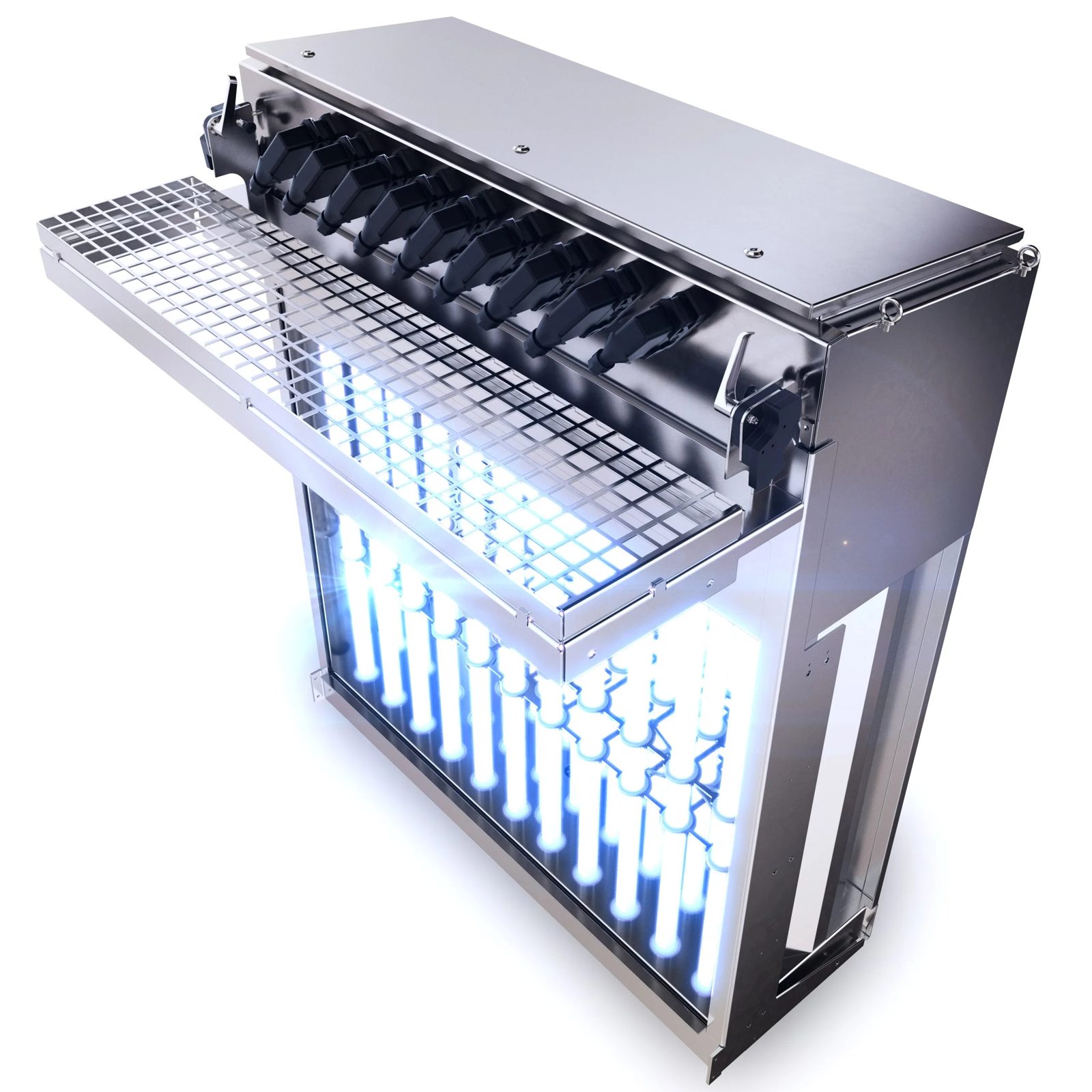

The VERTICAL series disinfects wastewater in open channels without chemicals. Its lamps stand vertically in a CFD-optimised cross-row layout, so every pathogen passing through the lamp bank is exposed to UV light while energy demand stays low.

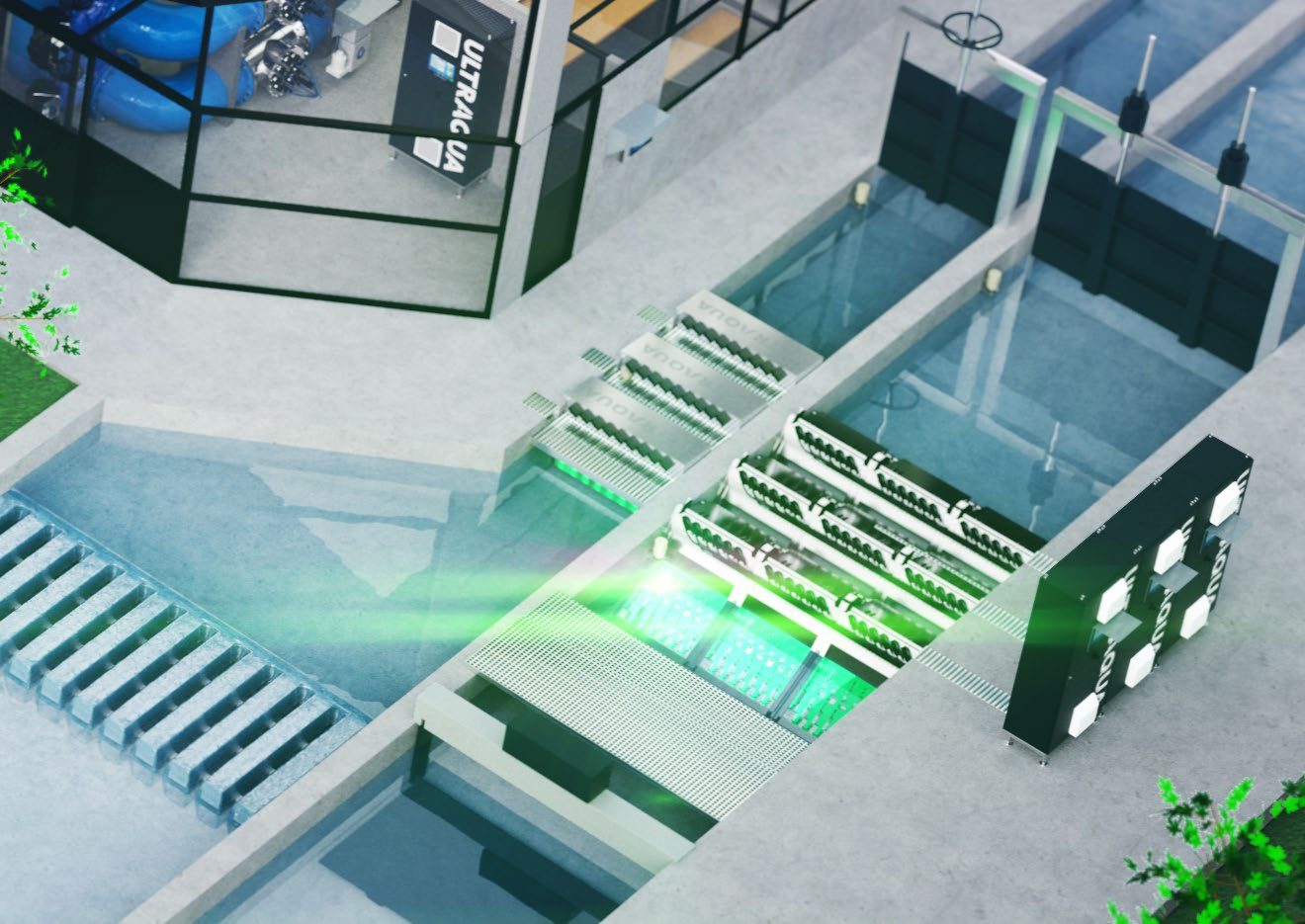

The robust modular frame can be sized to virtually any channel width and depth, which makes the series well suited to retrofits, for example into former chlorination tanks. Lamps, quartz sleeves, wiper motor and UV sensors sit in a sealed top compartment, so routine maintenance is done while the system stays submerged.
Ozone UV Solutions supplies VERTICAL systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Vertical, CFD-optimised cross-row lamp layout for full pathogen exposure at low energy demand
- ULTRATHERM low-pressure high-output amalgam lamps with a rated life of 16,000 hours
- Sealed top compartment: maintenance while the system remains submerged
- Integrated lifting mechanism; wall-mount installation available
- Automatic water level management for level variations of up to 300 mm (12 in)
- Automatic ULTRAWIPERâ„¢ cleaning of quartz sleeves and UV sensor, with automatic dose pacing
Typical applications
- Municipal and industrial wastewater disinfection
- Stormwater overflow (CSO) treatment
- Recirculating aquaculture systems (RAS)
Models and specifications
System characteristics
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam |
| Rated lamp life | 16,000 hours |
| Lamp arrangement | Vertical, CFD-optimised cross-row layout |
| UV monitoring | UV intensity sensor, ÖNORM M 5873-1 certified, PTFE · [UVT probe for online UVT monitoring] |
| Dose control | Automatic dose pacing (standard) |
| LAMP BANKS AND CHANNEL | |
| Configuration | Modular lamp banks, customised to the channel dimensions |
| Material | Passivated and pickled 316L, or Super Duplex |
| Hydraulics | Open channel, gravity flow |
| Flow range | 5–24,000 m³/h |
| UV transmittance | 20–100% |
| Water level control | Automatic, level variation up to 300 mm (12 in) · [ultrasonic water level control] · [flow control] |
| Cleaning | ULTRAWIPERâ„¢ automatic wiping of quartz sleeves and UV sensor |
| Lifting / mounting | Integrated lifting mechanism · wall-mount installation available |
| CONTROL CABINET | |

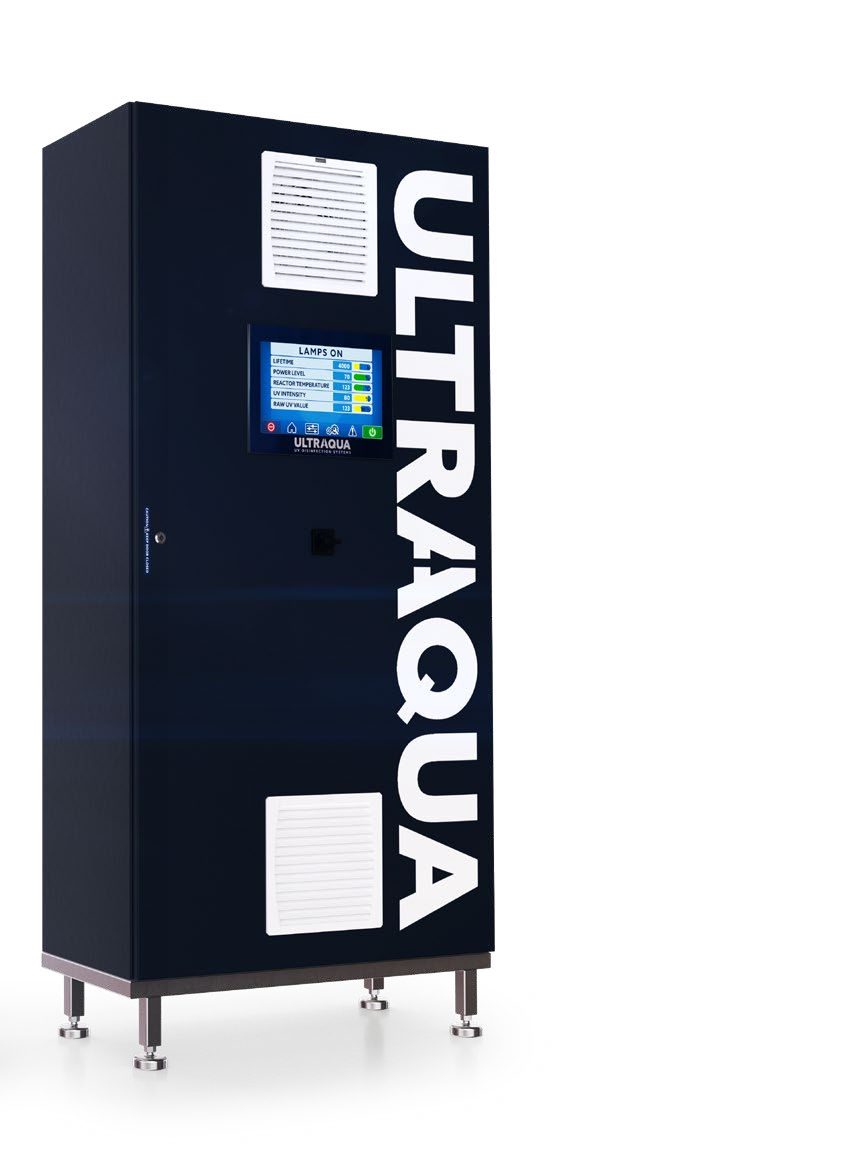

| Control logic / HMI | ULTRATOUCH PLC with touchscreen HMI and full data logging; UV dose, UVT, flow and power level shown on the HMI |
| Communication | Profibus, PROFINET, Modbus TCP/IP |
| Enclosure | Painted steel, SS304, SS316L or GFRP · IP54 or IP65 (NEMA 3/4X) |
| Lamp drivers | Electronic, variable output |
| Power supply | 1 × 230 V or 3 × 400 V +N+PE ±10%, 47–63 Hz [other voltages] |
Pricing on request.
