ULTRAAQUA · OPEN CHANNEL UV DISINFECTION FOR WASTEWATER
OPEN CHANNEL HORIZONTAL 700 Series
Modular open channel UV systems with horizontal lamp banks for municipal and industrial wastewater.
Pricing on request.
Overview

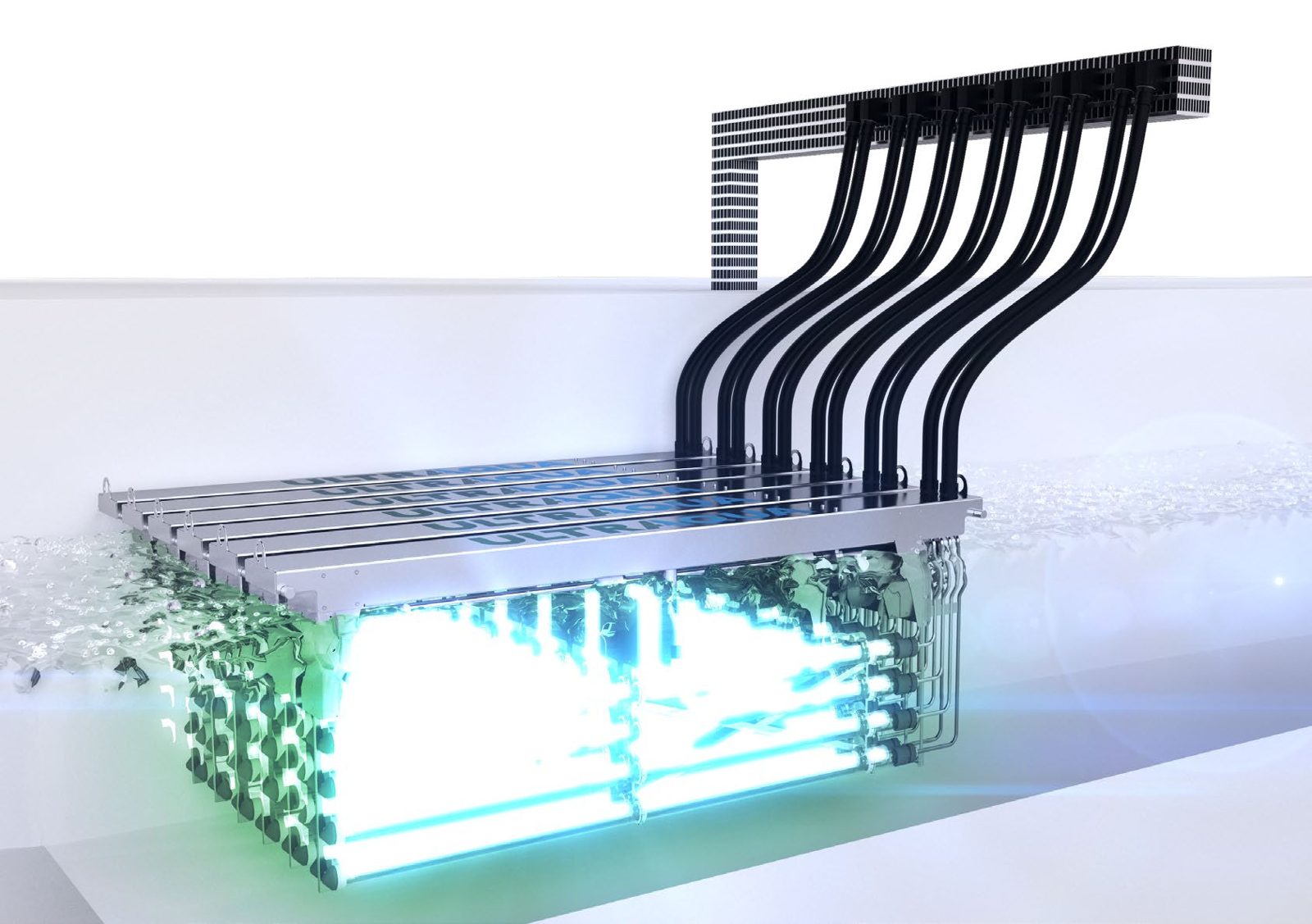

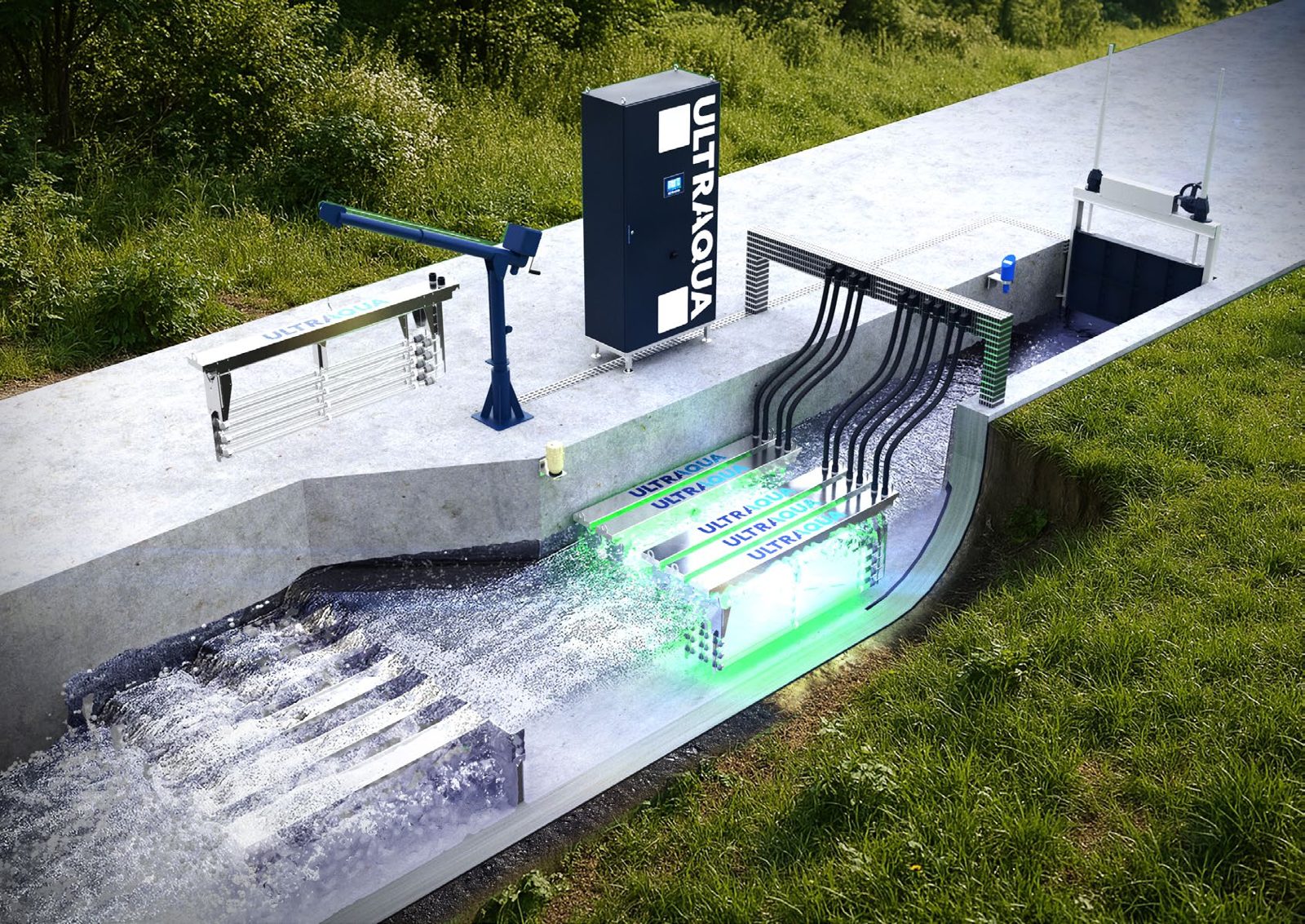

The HORIZONTAL 700 series disinfects wastewater in open, gravity-fed channels without chemicals. The lamps run horizontally in a CFD-optimised cross-line arrangement, which gives a uniform flow through the lamp banks, low head loss and an even UV dose across a wide range of operating conditions.
The modular lamp banks can be fitted to virtually any channel width and depth, so the series suits new plants as well as retrofits into existing treatment infrastructure. Its disinfection performance has been validated to USEPA standards, with bioassay testing carried out in general accordance with NWRI and the UV Disinfection Guidance Manual (UVDGM).
Ozone UV Solutions supplies HORIZONTAL 700 systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Validated to USEPA standards; bioassay testing in general accordance with NWRI and UVDGM
- Horizontal, CFD-optimised cross-line lamp arrangement for low head loss and an even dose
- ULTRATHERM low-pressure high-output amalgam lamps with a rated life of 16,000 hours

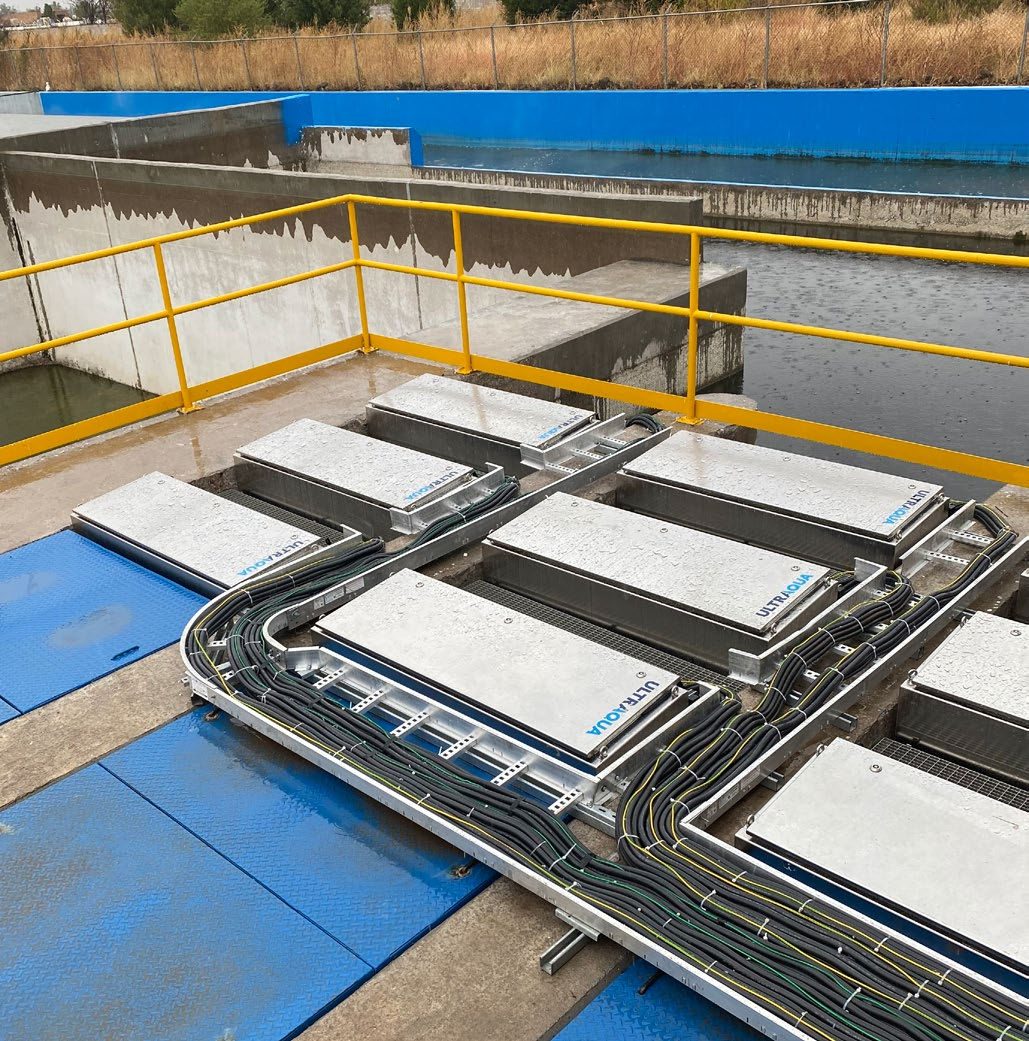

- Modular lamp banks for virtually any channel dimension, new build or retrofit
- Integrated baffle plate holds the upstream water level across variations of up to 25 cm (10 in)
- Automatic ULTRAWIPER™ sleeve cleaning, ÖNORM M 5873-1 certified UV sensor and automatic dose pacing
Typical applications
- Municipal wastewater disinfection
- Industrial wastewater disinfection
- Stormwater overflow (CSO) treatment
Models and specifications
System characteristics
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam |
| Rated lamp life | 16,000 hours |
| Lamp arrangement | Horizontal, CFD-optimised cross-line arrangement |
| UV monitoring | UV intensity sensor, ÖNORM M 5873-1 certified, PTFE |
| Dose control | Automatic dose pacing (standard) |
| Validation | USEPA; bioassay testing in general accordance with NWRI and UVDGM |
| LAMP BANKS AND CHANNEL | |
| Configuration | Modular lamp banks, customised to the channel dimensions |
| Material | Passivated and pickled 316L, or Super Duplex |
| Hydraulics | Open channel, gravity flow |
| Flow range | 5–24,000 m³/h |
| UV transmittance | 20–100% |
| Water level control | Integrated baffle plate, level variation up to 25 cm (10 in) |
| Cleaning | ULTRAWIPERâ„¢ automatic quartz sleeve wiping |
| Options | Water level sensors, weir gates and penstocks |
| CONTROL CABINET | |
| Control logic / HMI | ULTRATOUCH PLC with touchscreen HMI and full data logging; UV dose, UVT, flow and power level shown on the HMI |
| Communication | Profibus, PROFINET, Modbus TCP/IP |
| Enclosure | Painted steel, SS304, SS316L or GFRP · IP54 or IP65 (NEMA 3/4X) |
| Lamp drivers | Electronic, variable output |
| Power supply | 1 × 230 V or 3 × 400 V +N+PE ±10%, 47–63 Hz [other voltages] |
Pricing on request.
