ULTRAAQUA · OPEN CHANNEL UV DISINFECTION FOR WASTEWATER
OPEN CHANNEL INCLINED 1000 Series
Modular open channel UV systems with inclined lamp banks and 1000-series lamps for deeper channels and higher water levels.
Pricing on request.
Overview

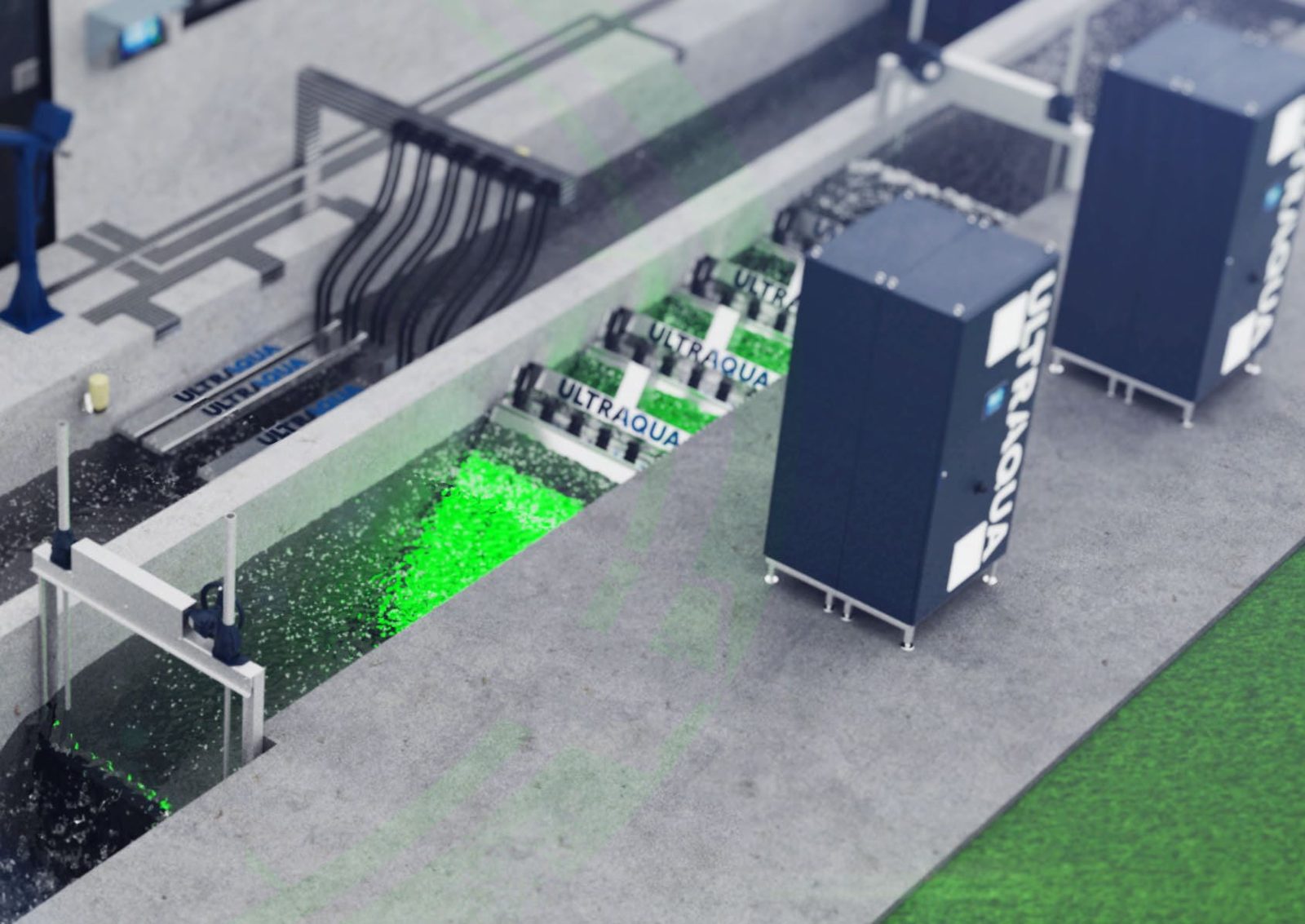

The INCLINED 1000 series disinfects municipal and industrial wastewater in open channels without chemicals. Inclined lamp banks reach into deeper channels than vertical or horizontal designs: the latest lamp bank offers up to 30% more depth options, which suits installations with higher water levels.
The series fits a wide range of channel depths and widths and can replace older systems or be built into chlorine contact tanks. Its disinfection performance has been validated to USEPA standards and NWRI guidelines.
Ozone UV Solutions supplies INCLINED 1000 systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Validated to USEPA standards and NWRI guidelines
- Powerful 1000-series ULTRATHERM low-pressure high-output lamps with a rated life of 16,000 hours

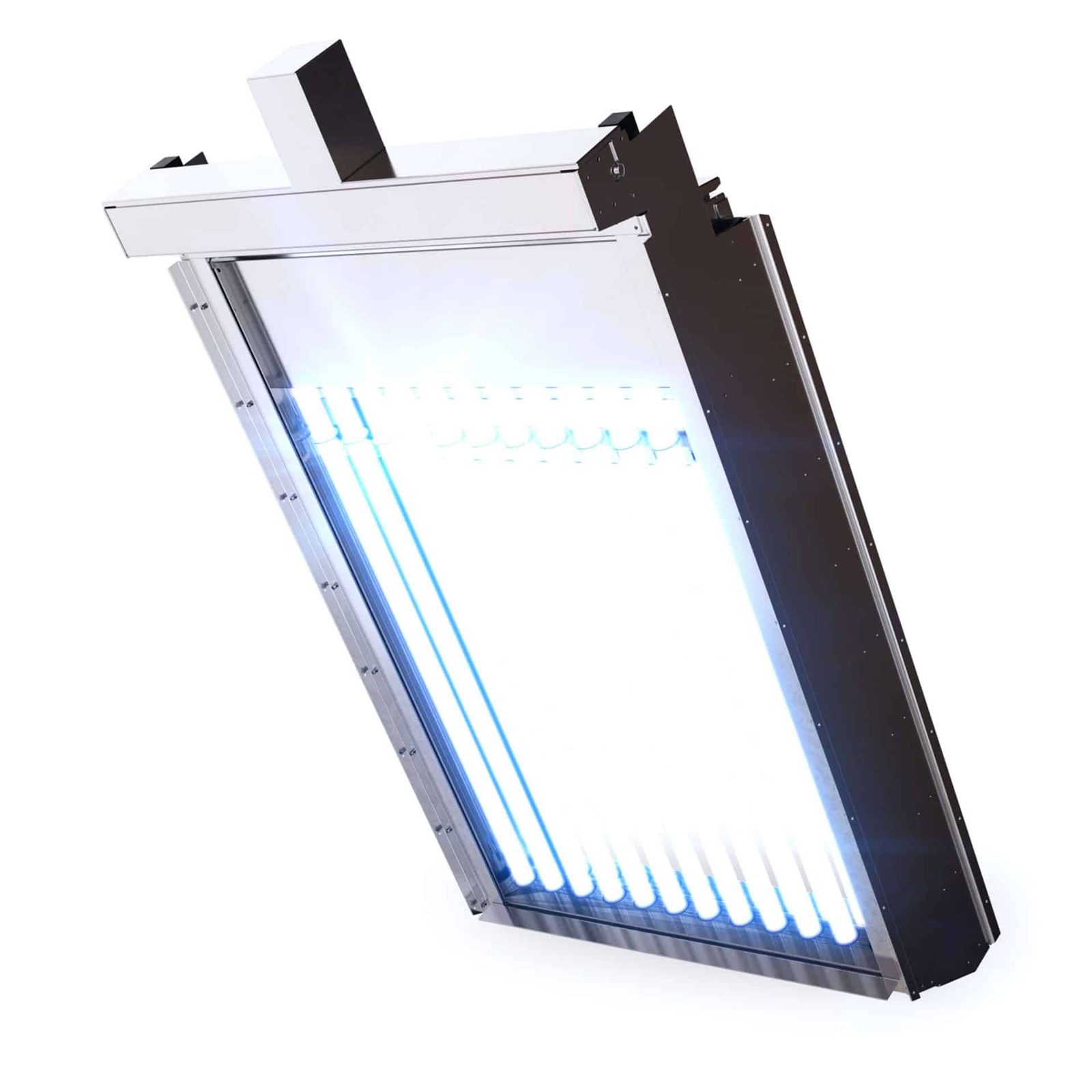

- Inclined lamp banks with up to 30% more depth options for deep channels
- Water level variation of up to 30 cm (12 in) without loss of disinfection performance
- ULTRADOSE automatic dose pacing with lamp dimming from 30% to 100%
- Integrated lifting mechanism and sealed top compartment for maintenance in the rack
Typical applications
- Municipal and industrial wastewater disinfection
- Stormwater overflow (CSO) treatment
- Recirculating aquaculture systems (RAS)
Models and specifications
System characteristics
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 1000 series |
| Rated lamp life | 16,000 hours |
| Lamp arrangement | Inclined, CFD-optimised cross-line arrangement |
| UV monitoring | Calibrated 90° side-looking UV intensity sensor |
| Dose control | ULTRADOSE automatic dose pacing · lamp dimming 30–100% |
| Validation | USEPA; NWRI guidelines |
| LAMP BANKS AND CHANNEL | |
| Configuration | Modular inclined lamp banks, customised to the channel dimensions |
| Material | Passivated and pickled 316L, or Super Duplex |
| Hydraulics | Open channel, gravity flow |
| Flow range | 5–24,000 m³/h |
| UV transmittance | 20–100% |
| Water level | Variation up to 30 cm (12 in) without loss of disinfection performance |
| Cleaning | ULTRAWIPERâ„¢ automatic quartz sleeve wiping |

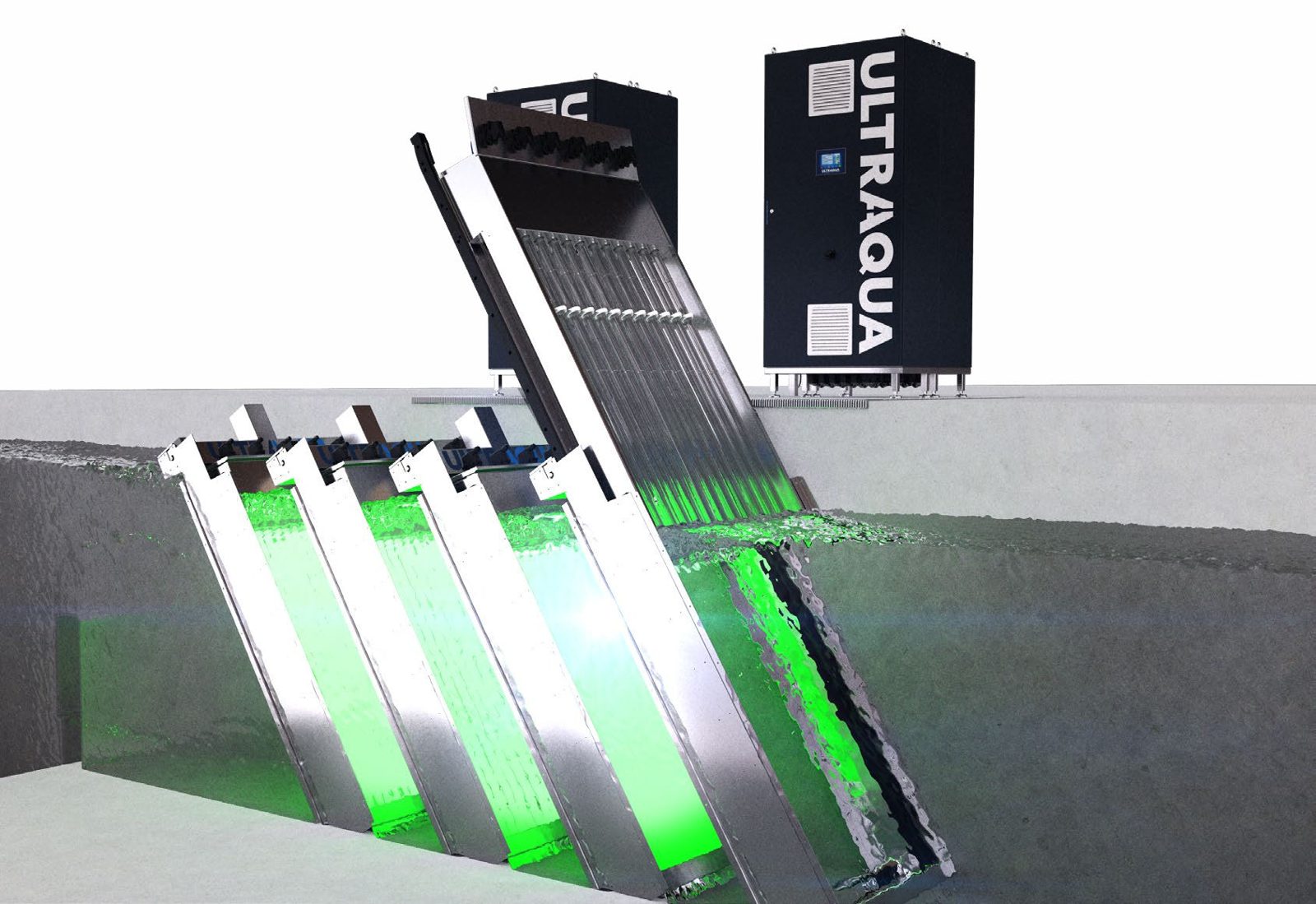

| Lifting | Integrated lifting mechanism |
| CONTROL CABINET | |
| Control logic / HMI | ULTRATOUCH PLC with touchscreen HMI and full data logging; UV dose, UVT, flow and power level shown on the HMI |
| Communication | Profibus, PROFINET, Modbus TCP/IP |
| Enclosure | Painted steel, SS304, SS316L or GFRP · IP54 or IP65 (NEMA 3/4X) |
| Lamp drivers | Electronic, variable output |
| Power supply | 3 × 400 V +N+PE ±10%, 47–63 Hz [other voltages] |
Pricing on request.
