ULTRAAQUA · UV DISINFECTION FOR CORROSIVE AND SALINE WATER
NON-CORROSIVE PP Series
Closed-vessel UV systems with non-metallic reactors for seawater, warm salt water and other corrosive fluids. Polypropylene (PP) reactors as standard, high-density polyethylene (PEHD) as a material option.
Pricing on request.
Overview

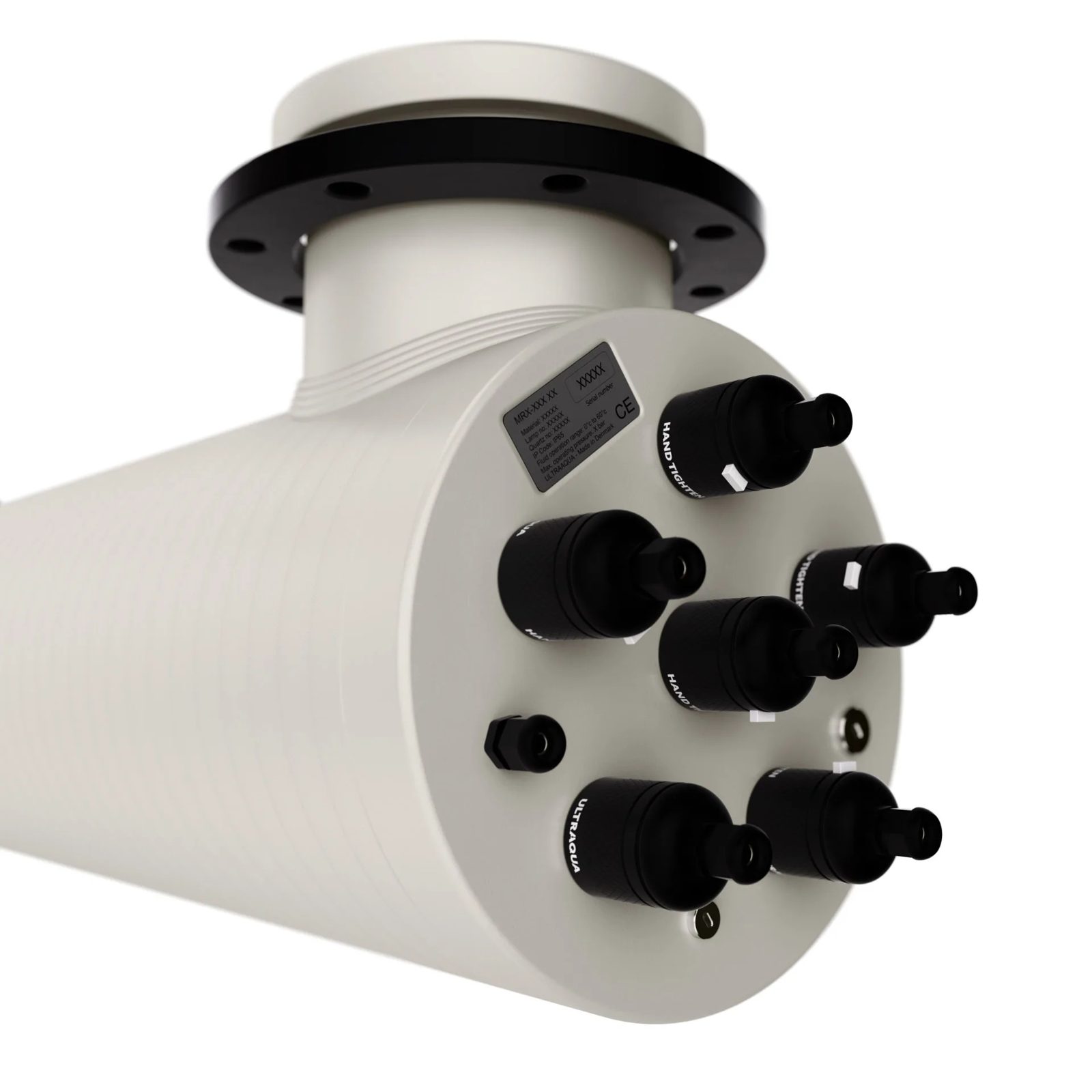

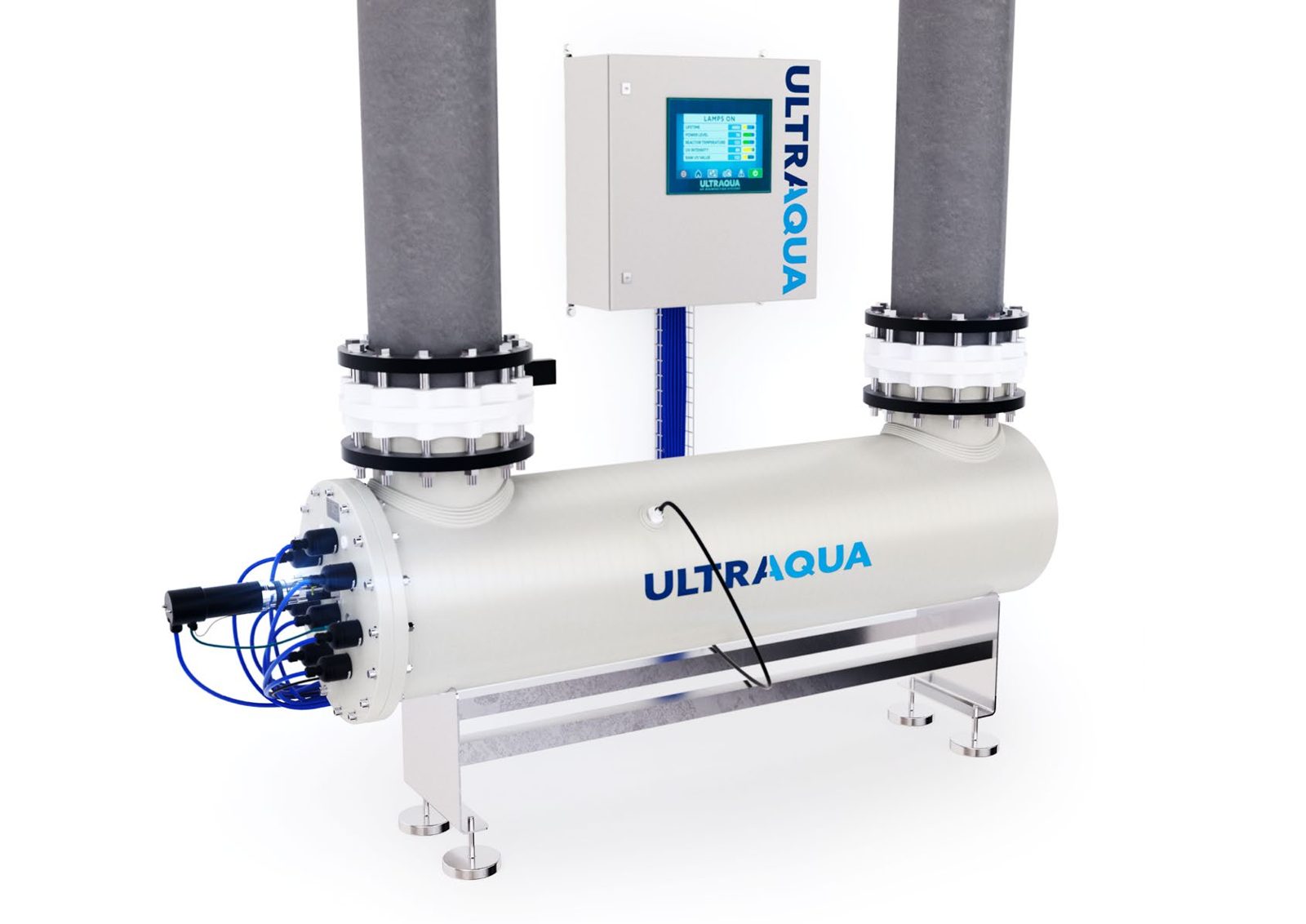

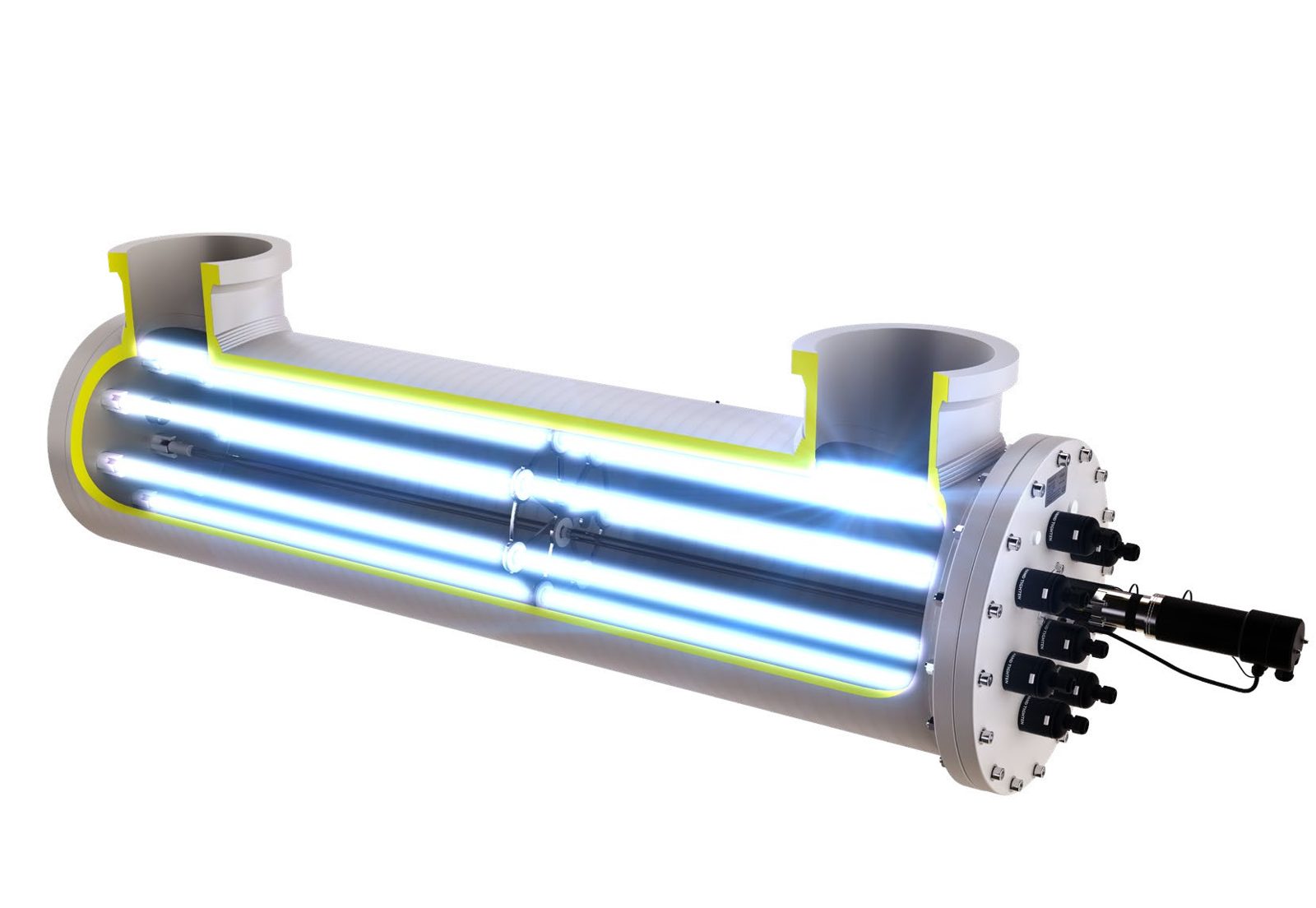

The NON-CORROSIVE PP series uses a reactor made from UV-stabilised polypropylene in place of a stainless-steel chamber. The material withstands warm salt water and other corrosive media and copes well with temperature and pressure, which makes the series a good fit for marine aquaculture, aquariums and industrial water where a steel reactor would corrode. The reactors are compact and light enough for wall or floor mounting.
Ozone UV Solutions supplies NON-CORROSIVE PP systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- UV-stabilised polypropylene reactor for corrosive and saline water, with a PEHD reactor available as an option
- ULTRATHERM low-pressure high-output amalgam lamps, 220 W or 350 W, with a rated life of 16,000 hours
- Sizes from 1 to 20 lamps with flanged connections from DN80 to DN300
- Non-corrosive PTFE UV intensity sensor and 50–100% variable lamp power on all models except single-lamp STD units
- Optional automatic ULTRAWIPER™ cleaning of the quartz sleeves and UV sensor
- PLC control with ULTRATOUCH touchscreen and Modbus TCP/IP or PROFINET on models with three or more lamps
Typical applications
- Recirculating aquaculture systems (RAS), shrimp and prawn farming
- Public aquariums and zoo life-support systems
- Food and beverage, and oil and gas applications
- Removal of residual ozone from ozonated seawater (PEHD reactors)

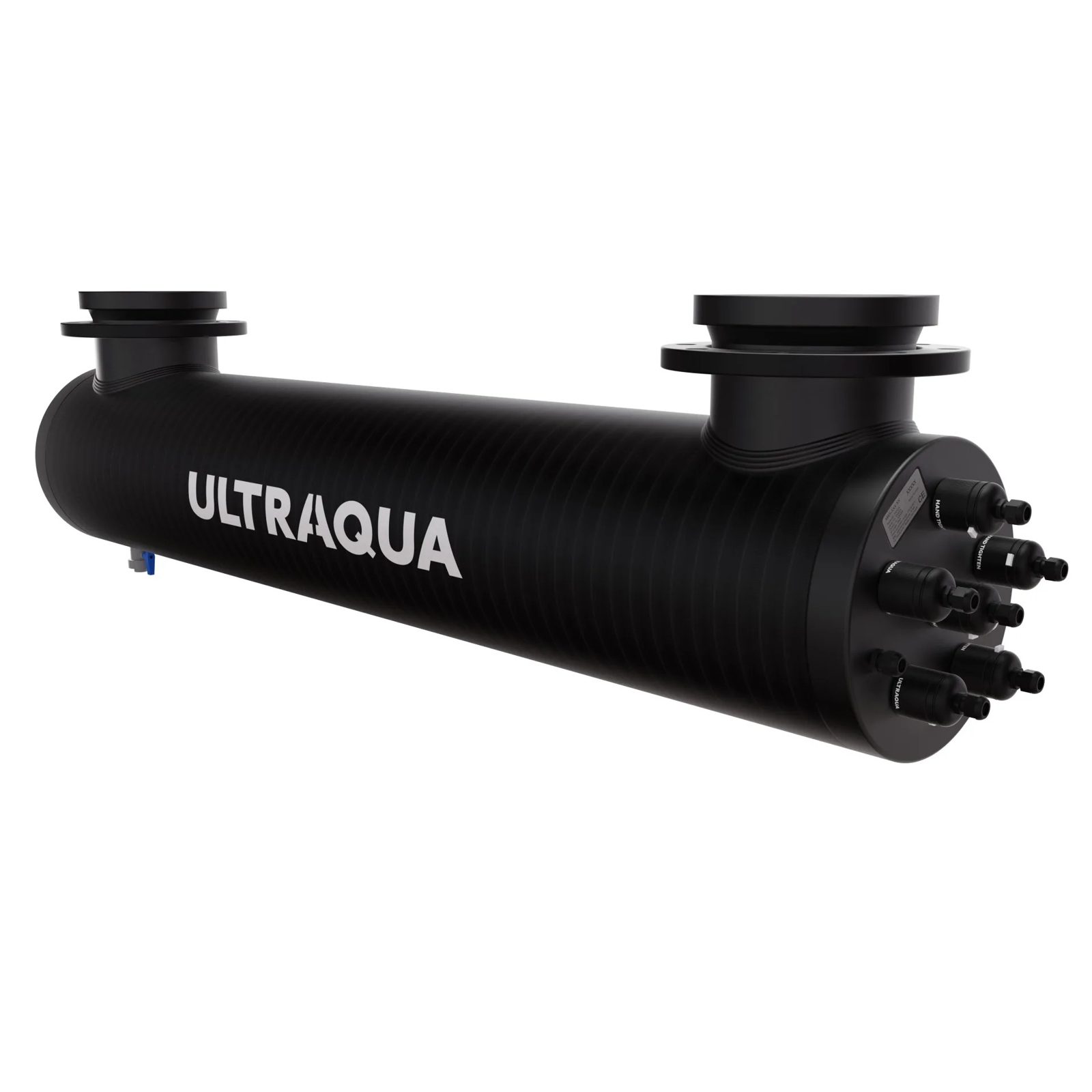

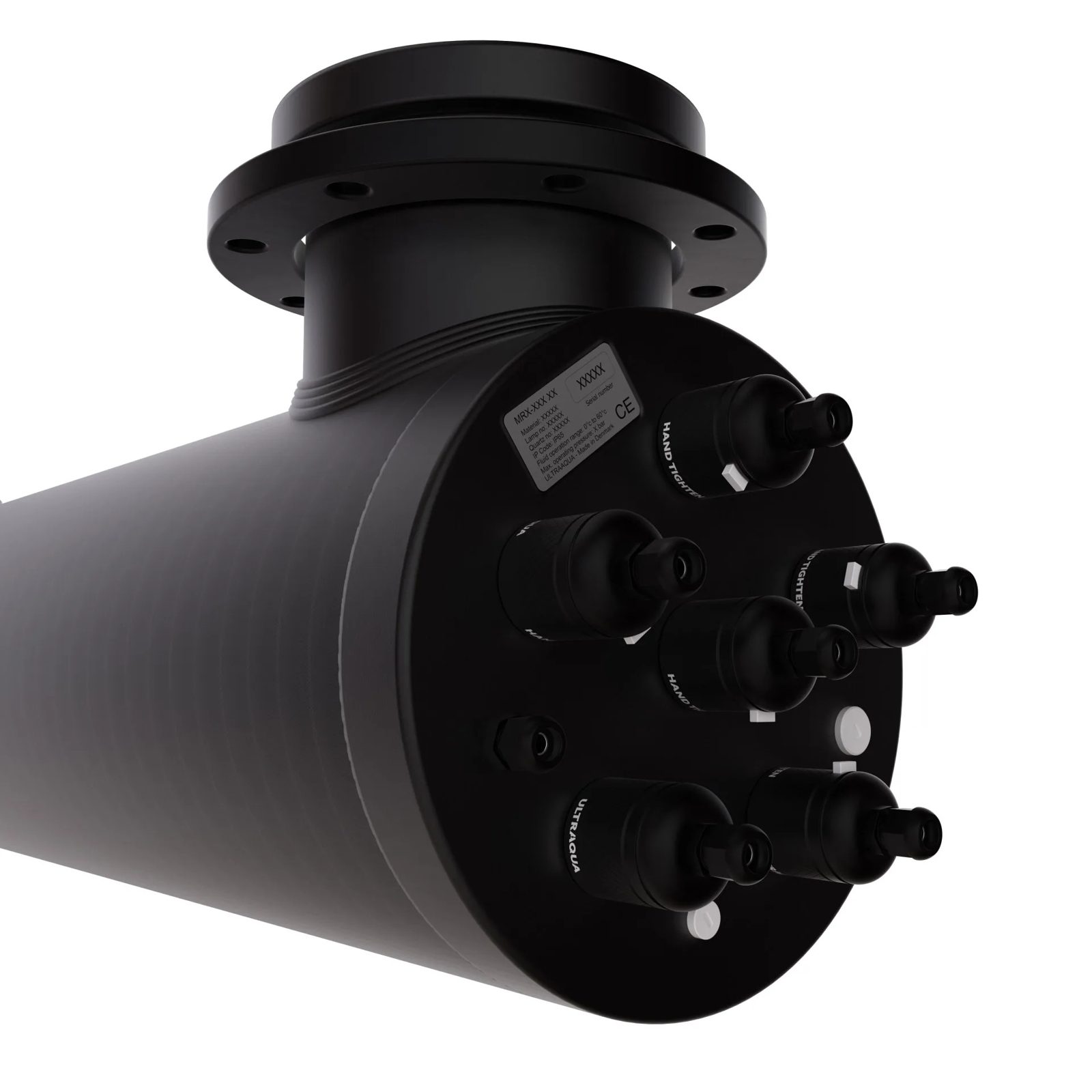

PEHD reactor variant
The same range can be supplied with a reactor made from high-density polyethylene (PEHD). PEHD tolerates temperature swings and resists pressure, salts, acids and oils, which makes it the material of choice for highly corrosive industrial and aquaculture duties. It is also suited to breaking down residual ozone in seawater that has been treated with ozone. PEHD reactors can be fitted with a non-corrosive PTFE or a corrosion-resistant ÖNORM M 5873-1 certified UV sensor, together with the ULTRAWIPER™, which allows routine maintenance checks to be limited to once a year.
Models and specifications
220 W lamp models
| Model | UV lamps | Connection | Design pressure | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|---|
| MR1-220PP STD | 1 | DN80 (ANSI 3) | 6 bar | 0.2 kW | 8 kg | 20 L | STD – status LEDs |
| MR1-220PP ADV | 1 | DN80 (ANSI 3) | 6 bar | 0.2 kW | 8 kg | 20 L | ADV – microprocessor, LCD |
| MR3-220PP | 3 | DN150 (ANSI 6) | 5 bar | 0.7 kW | 22 kg | 55 L | PLC – ULTRATOUCH |
| MR4-220PP | 4 | DN150 (ANSI 6) | 3 bar | 1.0 kW | 31 kg | 77 L | PLC – ULTRATOUCH |
| MR6-220PP | 6 | DN150 (ANSI 6) | 2 bar | 1.4 kW | 39 kg | 97 L | PLC – ULTRATOUCH |
| MR8-220PP | 8 | DN200 (ANSI 8) | 2 bar | 1.9 kW | 47 kg | 167 L | PLC – ULTRATOUCH |
350 W lamp models
| Model | UV lamps | Connection | Design pressure | Power | Reactor dry weight | Reactor volume | Controller |
|---|---|---|---|---|---|---|---|
| MR1-350PP STD | 1 | DN100 (ANSI 4) | 6 bar | 0.4 kW | 12 kg | 30 L | STD – status LEDs |
| MR1-350PP ADV | 1 | DN100 (ANSI 4) | 6 bar | 0.4 kW | 12 kg | 30 L | ADV – microprocessor, LCD |
| MR3-350PP | 3 | DN150 (ANSI 6) | 5 bar | 1.1 kW | 30 kg | 73 L | PLC – ULTRATOUCH |
| MR4-350PP | 4 | DN150 (ANSI 6) | 3 bar | 1.5 kW | 43 kg | 106 L | PLC – ULTRATOUCH |
| MR6-350PP | 6 | DN200 (ANSI 8) | 2 bar | 2.3 kW | 60 kg | 139 L | PLC – ULTRATOUCH |
| MR8-350PP | 8 | DN250 (ANSI 10) | 2 bar | 3.0 kW | 80 kg | 226 L | PLC – ULTRATOUCH |
| MR12-350PP | 12 | DN250 (ANSI 10) | 2 bar | 4.5 kW | 110 kg | 274 L | PLC – ULTRATOUCH |
| MR16-350PP | 16 | DN300 (ANSI 12) | 2 bar | 6.0 kW | 126 kg | 291 L | PLC – ULTRATOUCH |
| MR18-350PP | 18 | DN300 (ANSI 12) | 2 bar | 6.8 kW | 130 kg | 287 L | PLC – ULTRATOUCH |
| MR20-350PP | 20 | DN300 (ANSI 12) | 2 bar | 7.5 kW | 134 kg | 283 L | PLC – ULTRATOUCH |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 220 W or 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | UV intensity sensor, non-corrosive PTFE (all models except single-lamp STD) |
| Power control | ADV: variable power 50–100% · PLC models: ULTRADOSE automatic dose pacing 50–100% |
| Approvals | CE [UL / cUL] |
| UV CHAMBER | |
| Chamber material | Non-corrosive UV-stabilised polypropylene (PP) [PEHD], machined finish |
| Connection type | Flanged, PN10 (ANSI Class 150) |
| Quartz sleeves | High-purity fused quartz, transmittance > 92% |
| Cleaning | [ULTRAWIPER™ automatic mechanical wiper with PTFE/steel fibre rings (electric drive)] – not available on single-lamp STD models |
| Access / installation | Single-ended service · horizontal or vertical installation · free-standing [horizontal SS316 stand] · IP65 / NEMA 4X |
| Temperature probe | PTC sensor (single-lamp models) · PT100 (three lamps and above) |
| Vent & drain ports | ½" (up to 4 lamps) · 1" (6 lamps and above) |
| CONTROL CABINET | |
| Control logic / HMI | STD: status LED indicators · ADV: microprocessor with 4-line LCD · PLC models: PLC with 4" ULTRATOUCH touchscreen [7" ULTRATOUCH] |
| Communication | ADV: Modbus RTU · PLC models: Modbus TCP/IP, PROFINET [I-Device] |
| Analogue I/O (4–20 mA) | ADV: flow input, UV irradiance output · PLC models: flow input, UV dose output, UV intensity output [UVT input] |
| Logging and alarms | ADV: alarm log, UV intensity pre-alarm and alarm · PLC models: alarm, event and data log (UV dose, UV intensity, flow), actual and target UV dose on HMI, UV dose pre-alarm and alarm |
| External wiring | PLC models: remote ON/OFF, safety ON/OFF, system status, alarm |
| Cabinet | Polycarbonate (smaller models) or non-corrosive GFRP (larger models) [SS304 / SS316] · wall-mounted · IP65 with passive cooling [fan / AC / heat exchanger]; MR8-350PP and above: IP54 with heat exchanger |
| Power supply | 1 × 200–240 VAC ±10% +N+PE 50/60 Hz · MR8-350PP and above: 3 × 400 VAC ±10% +N+PE 50/60 Hz |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
