ULTRAAQUA · AQUACULTURE UV DISINFECTION
ULTRABARRIER™ Series
UV disinfection for aquaculture intake and recirculation water. Available in stainless steel (SS) and non-corrosive polypropylene (PP) reactors.
Pricing on request.
Overview

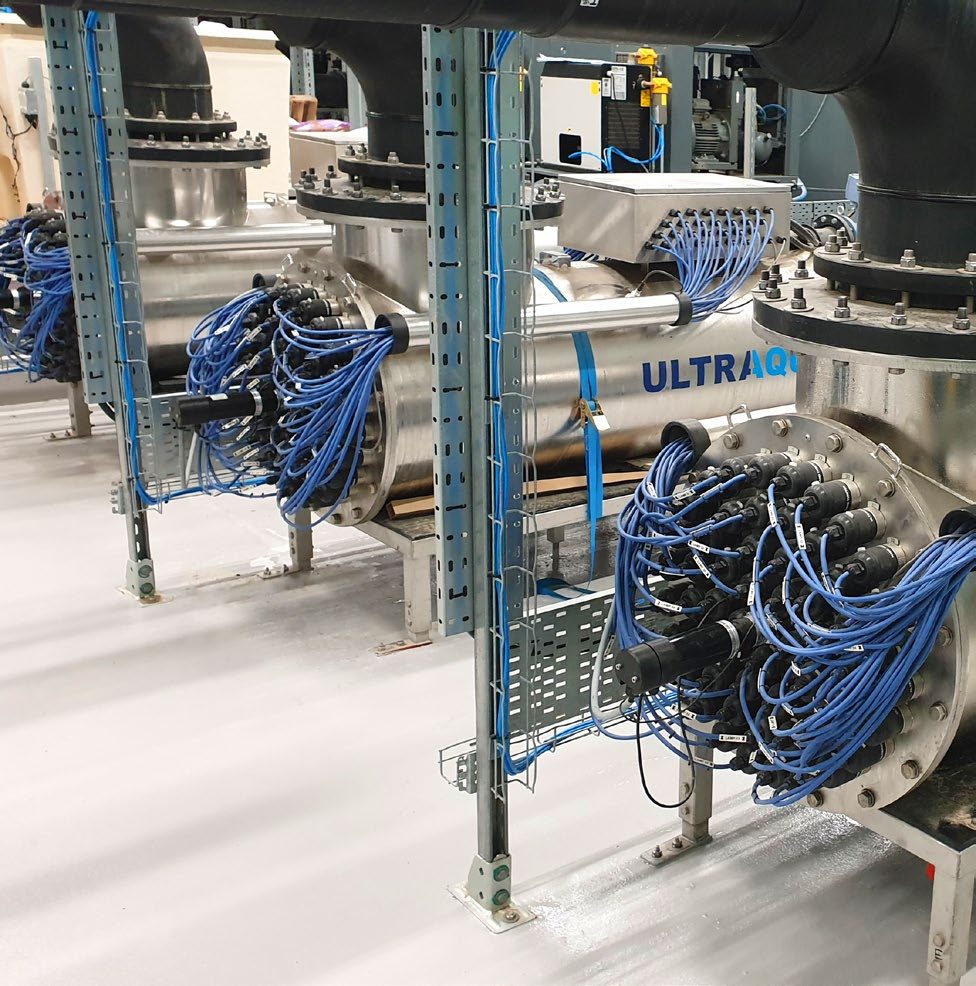

The ULTRABARRIER™ series is designed to stop pathogens at the point where water enters a farm. Installed on intake and recirculation lines, it treats the full flow with UV-C light before the water reaches tanks, hatcheries or smolt units, without adding chemicals or changing water chemistry.
Ozone UV Solutions supplies ULTRABARRIER™ systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Approved by the Norwegian Veterinary Institute (NVI) for aquaculture intake water disinfection
- Two reactor materials: electropolished SS316L, or UV-stabilised polypropylene for saline and corrosive water
- ULTRATHERM low-pressure high-output amalgam lamps, 350 W, with a rated life of 16,000 hours
- Two ÖNORM M5873-certified UV intensity sensors and automatic dose pacing (50–100% power)

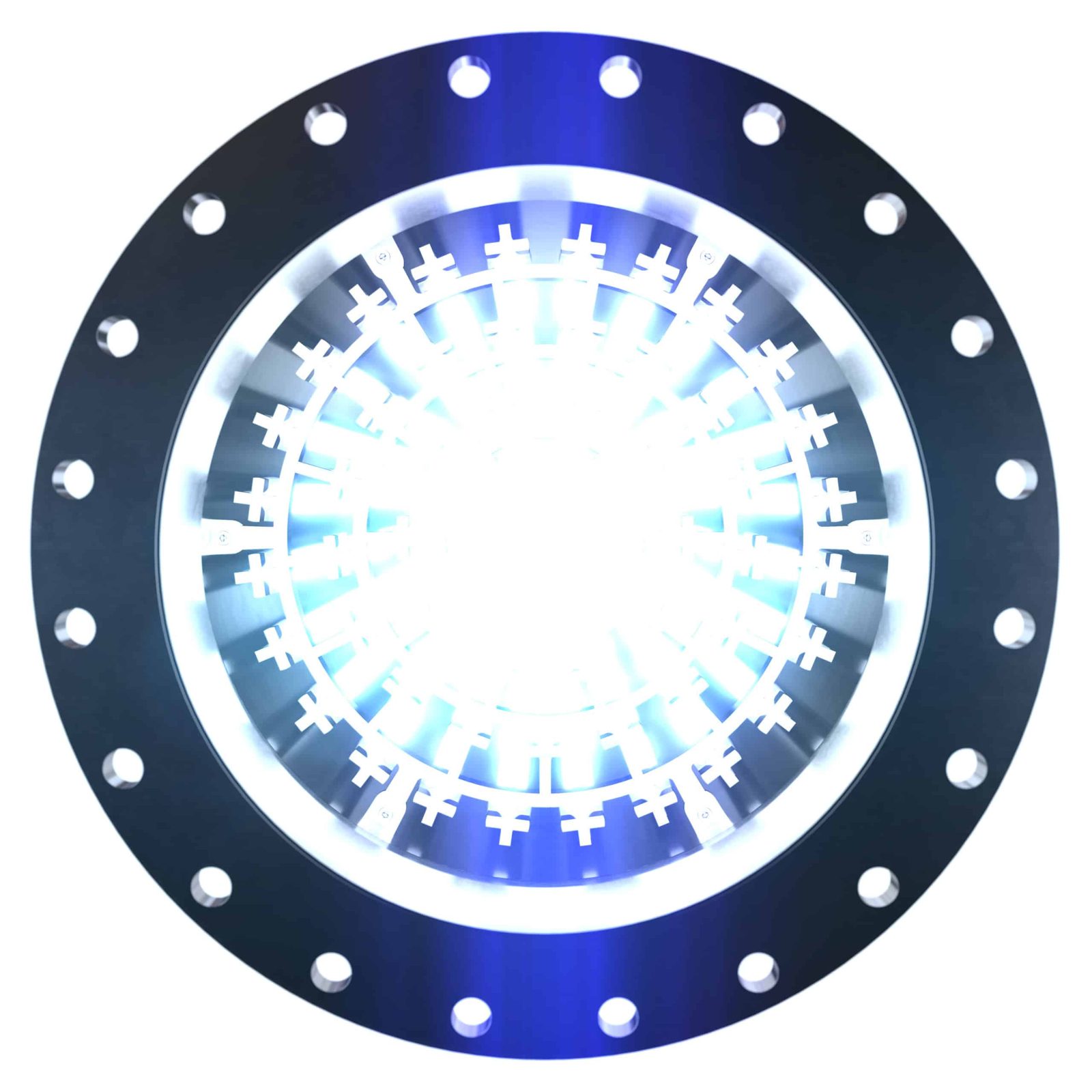

- Automatic ULTRAWIPER™ quartz sleeve cleaning and single-ended access for maintenance without special tools
- Siemens PLC with 7" touchscreen, data logging and Modbus TCP/IP or PROFINET for SCADA integration
Typical applications
- Intake water disinfection for land-based fish farms, hatcheries and smolt facilities
- Recirculating aquaculture systems (RAS)
- Salmon and other finfish, shrimp and prawn farming, including warm and saline water (PP reactors)
Models and specifications

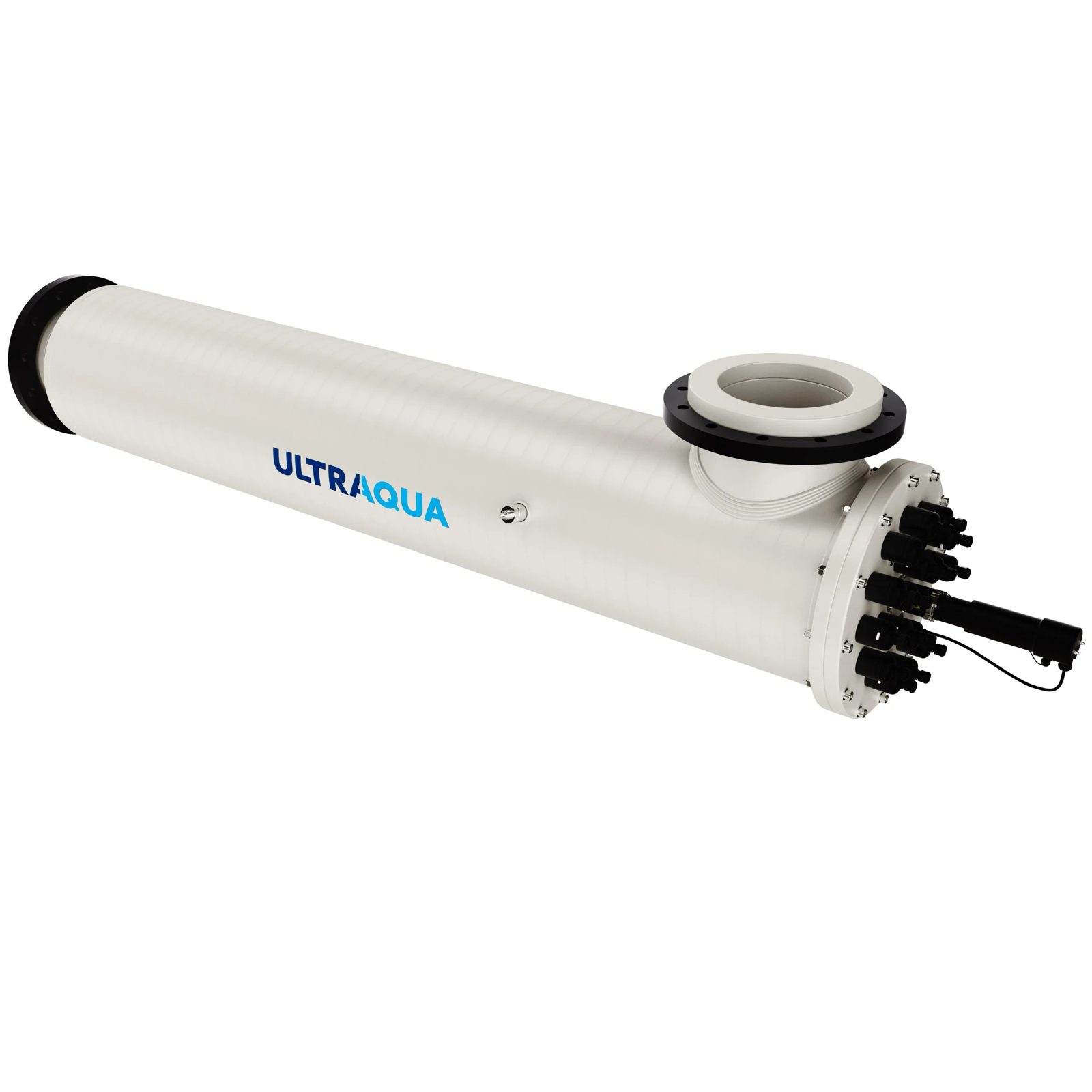

Polypropylene (PP) reactors – non-corrosive
| Model | UV lamps (350 W) | Connection | Design pressure | Power | Reactor dry weight | Reactor volume |
|---|---|---|---|---|---|---|
| MR1-350PP | 1 | DN100 (ANSI 4) | 8 bar | 0.4 kW | 23 kg | 40 L |
| MR4-350PP | 4 | DN100 (ANSI 4) | 6 bar | 1.5 kW | 36 kg | 71 L |
| MR6-350PP | 6 | DN150 (ANSI 6) | 5 bar | 2.3 kW | 46 kg | 90 L |
| MR8-350PP | 8 | DN150 (ANSI 6) | 3 bar | 3.0 kW | 55 kg | 113 L |
| MR12-350PP | 12 | DN200 (ANSI 8) | 2 bar | 4.5 kW | 74 kg | 207 L |
| MR18-350PP | 18 | DN300 (ANSI 12) | 2 bar | 6.8 kW | 124 kg | 311 L |
| MR28-350PP | 28 | DN400 (ANSI 16) | 2 bar | 10.5 kW | 171 kg | 377 L |

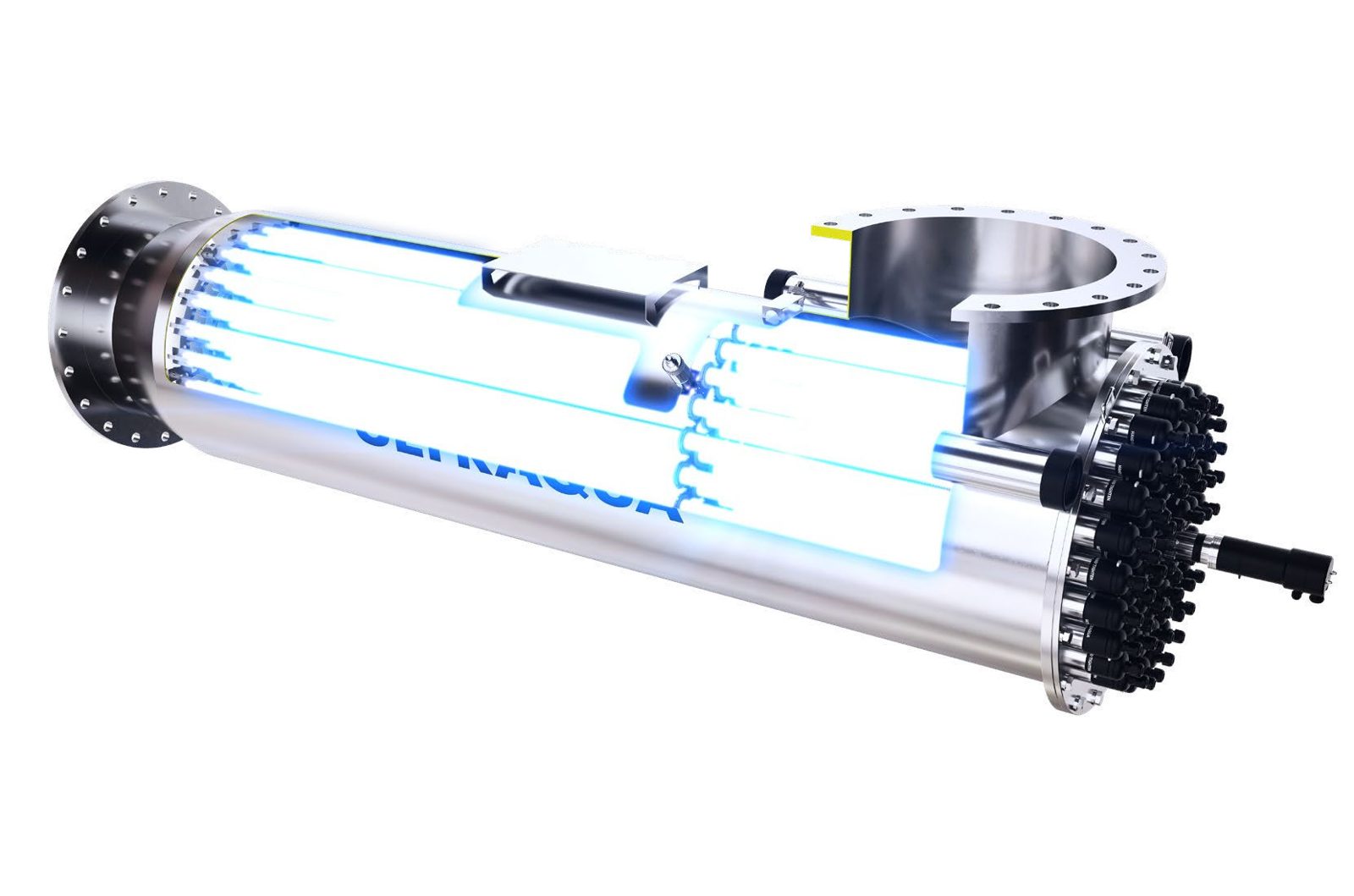

Stainless steel (SS) reactors – electropolished SS316L
| Model | UV lamps (350 W) | Connection | Design pressure | Power | Reactor dry weight | Reactor volume |
|---|---|---|---|---|---|---|
| MR1-350SS | 1 | DN100 (ANSI 4) | 10 bar [16 bar] | 0.4 kW | 40 kg | 33 L |
| MR4-350SS | 4 | DN100 (ANSI 4) | 10 bar [16 bar] | 1.5 kW | 64 kg | 70 L |
| MR6-350SS | 6 | DN150 (ANSI 6) | 10 bar [16 bar] | 2.3 kW | 68 kg | 83 L |
| MR8-350SS | 8 | DN150 (ANSI 6) | 10 bar [16 bar] | 3.0 kW | 96 kg | 118 L |
| MR12-350SS | 12 | DN200 (ANSI 8) | 10 bar [16 bar] | 4.5 kW | 124 kg | 193 L |
| MR18-350SS | 18 | DN300 (ANSI 12) | 10 bar [16 bar] | 6.8 kW | 141 kg | 307 L |
| MR28-350SS | 28 | DN400 (ANSI 16) | 10 bar [16 bar] | 10.5 kW | 238 kg | 374 L |
| MR44-350SS | 44 | DN500 (ANSI 20) | 6 bar [10 bar] | 16.5 kW | 335 kg | 627 L |
| MR56-350SS | 56 | DN500 (ANSI 20) | 6 bar [10 bar] | 21.0 kW | 412 kg | 693 L |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | 2 × UV intensity sensors, ÖNORM M5873 certified, Super Duplex housing |
| Power control | ULTRADOSE dose pacing, 50–100% |
| Approvals | Norwegian Veterinary Institute (NVI), CE [UL / cUL] |
| UV CHAMBER | |
| Chamber material | PP: UV-stabilised polypropylene [PEHD] · SS: SS316L / 1.4404 [Super Duplex], electropolished inside, glass-blasted outside |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | ULTRAWIPER™ automatic mechanical wiper with PTFE/fibre rings (electric drive) |
| Access / installation | Single-ended lamp and wiper access · horizontal or vertical installation · free-standing [SS316 stand] |
| Other | PT100 temperature probe · 1" drain port · IP65 · minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | Siemens PLC [Allen-Bradley] · 7" ULTRATOUCH touchscreen |
| Communication | Modbus TCP/IP, PROFINET |
| Analogue I/O (4–20 mA) | Flow input, UV dose output, UV intensity output [UVT input] |
| Logging | Alarms, events and data (UV dose, UV intensity, flow) |
| Cabinet | Polycarbonate or GFRP depending on size [SS304 / SS316]; MR44/MR56: floor-standing powder-coated steel |
| Power supply | 1 × 230 VAC +N+PE 50/60 Hz (smaller models) · 3 × 400 VAC +N+PE 50/60 Hz (larger models) |
| Cable length | 4 m standard [up to 30 m] |
Pricing on request.
