ULTRAAQUA · OPEN CHANNEL UV DISINFECTION FOR AQUACULTURE AND CORROSIVE WATER
OPEN CHANNEL (PP) Series

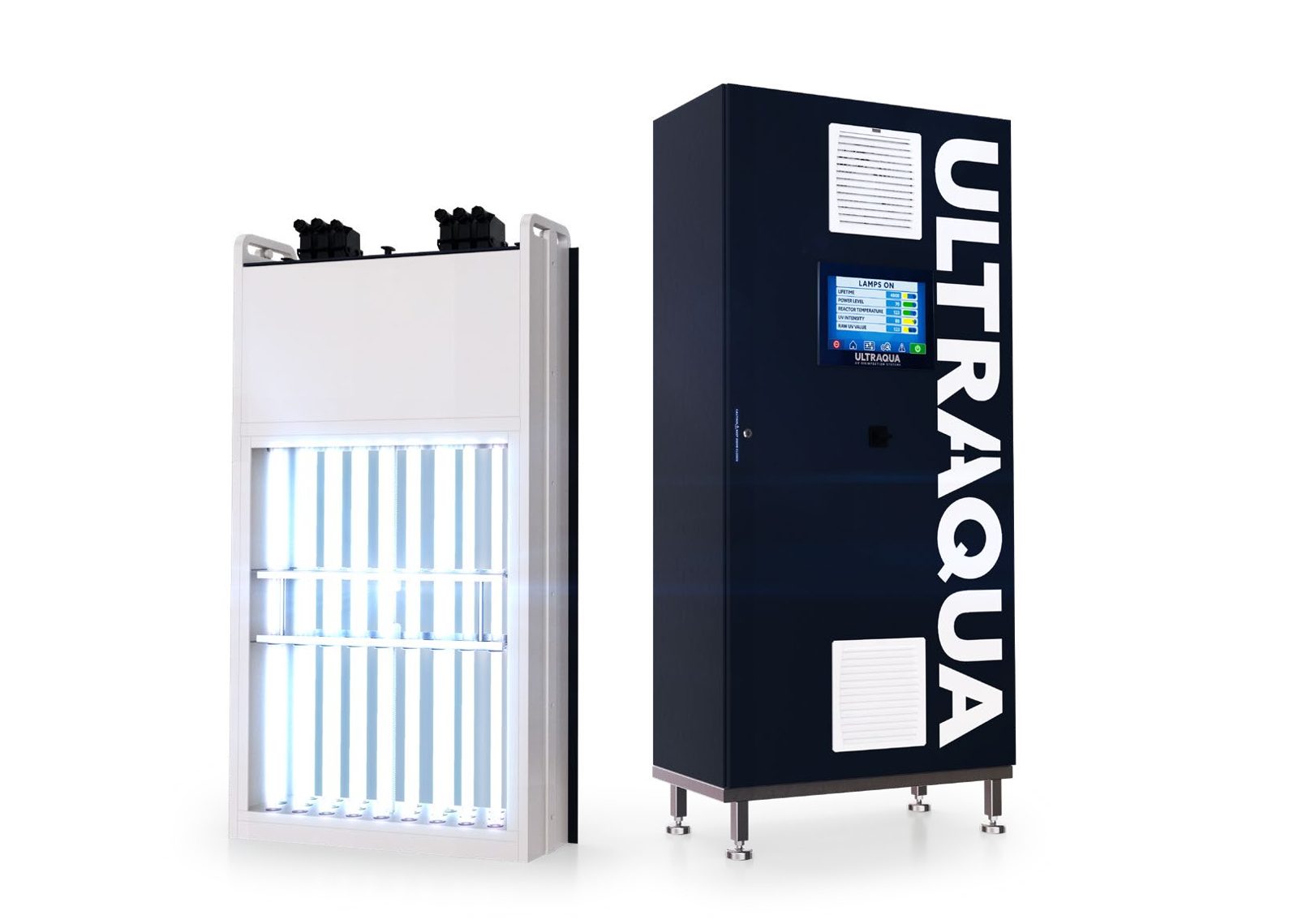

Non-corrosive polypropylene lamp modules for open channels in aquaculture, saline and other corrosive water.
Pricing on request.
Overview
The OPEN CHANNEL (PP) series brings open channel UV disinfection to saline and corrosive water. Its lamp modules are made from UV-stabilised polypropylene, which resists temperature changes, chemicals and salts. This makes the series a strong fit for intensive aquaculture, including recirculating (RAS) and flow-through systems where species are reared in salt water.

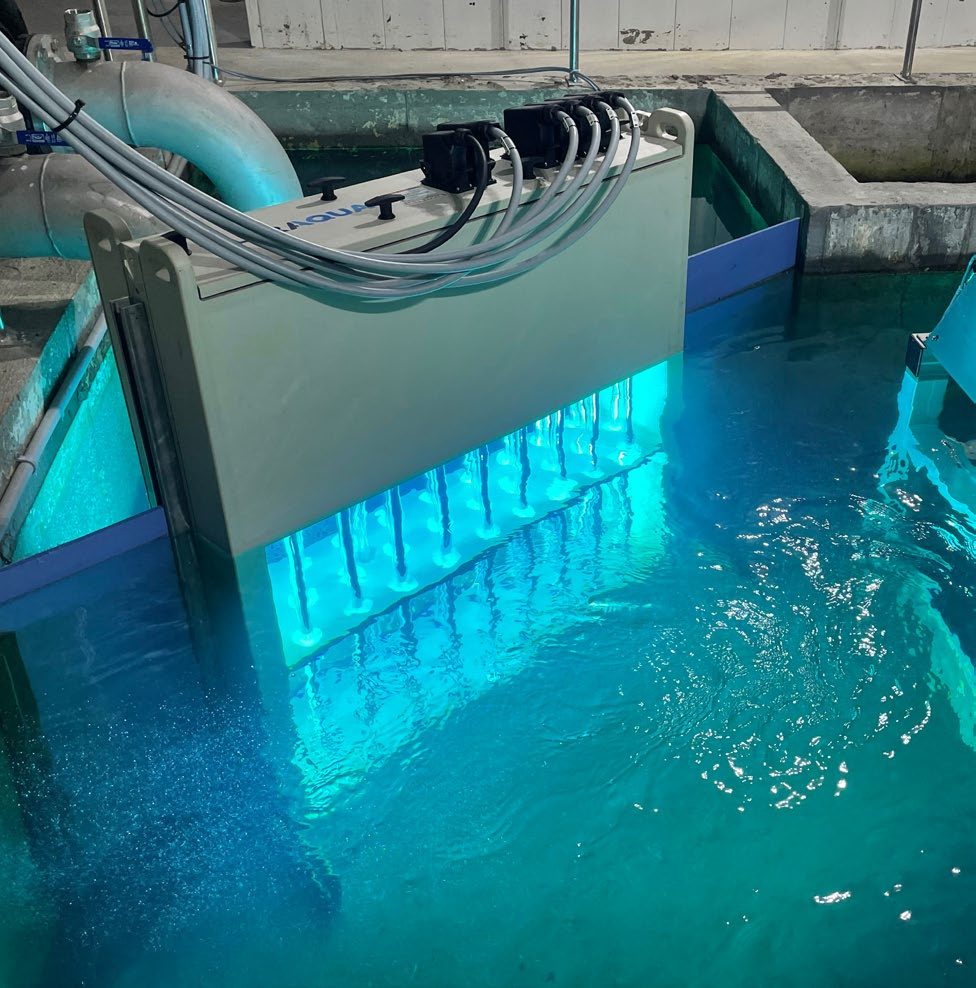

The module frame is available in a wide choice of widths and depths to suit virtually any channel. Routine maintenance is carried out from a dry top compartment, without lifting the module out of the water.
Ozone UV Solutions supplies OPEN CHANNEL (PP) systems as an authorised ULTRAAQUA reseller and supports them locally: from sizing and installation through commissioning, servicing, lamps and spare parts.
Key features
- Non-corrosive UV-stabilised polypropylene modules for saline and corrosive water
- ULTRATHERM low-pressure high-output amalgam lamps, 220 W or 350 W, with a rated life of 16,000 hours
- Modules from 4 to 48 lamps, with channel widths from 550 to 1,390 mm
- Dry top compartment for maintenance without removing the module from the water
- PTFE UV intensity sensor, ULTRADOSE dose pacing (50–100%) and flood protection switch
- PLC with 7" ULTRATOUCH touchscreen; optional automatic ULTRAWIPERâ„¢ sleeve cleaning
Typical applications

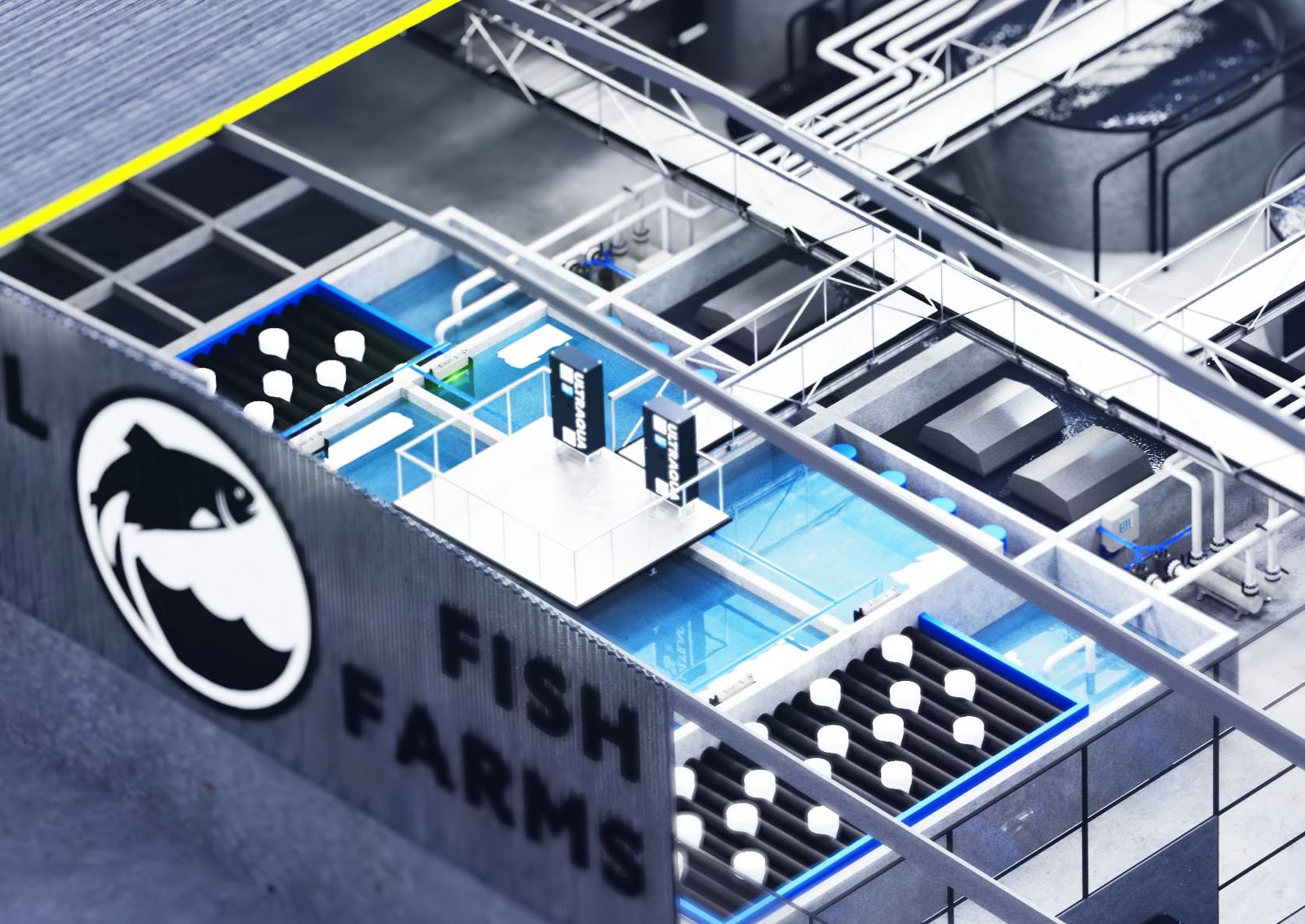

- Recirculating aquaculture systems (RAS) and flow-through farms, including saline water
- Shrimp and prawn farming
- Municipal wastewater disinfection
Models and specifications
220 W lamp models – water level 1,230 to 1,600 mm
| Model | UV lamps | Channel width (mm) | Channel depth (mm) | Module weight | Power | Control cabinet (H×W×D mm) | Power supply |
|---|---|---|---|---|---|---|---|
| MR4-220PP C | 4 | 550 ± 8 | 185 ± 5 | 35 kg | 1.0 kW | 800×600×300 | 1 × 230 VAC |
| MR6-220PP C | 6 | 790 ± 8 | 185 ± 5 | 45 kg | 1.4 kW | 750×1000×320 | 1 × 230 VAC |
| MR8-220PP C | 8 | 1030 ± 8 | 185 ± 5 | 50 kg | 1.9 kW | 1000×1000×320 | 1 × 230 VAC |
| MR12-220PP C | 12 | 850 ± 8 | 205 ± 5 | 85 kg | 2.9 kW | 1250×1250×420 | 1 × 230 VAC |
350 W lamp models – water level 1,730 to 2,100 mm
| Model | UV lamps | Channel width (mm) | Channel depth (mm) | Module weight | Power | Control cabinet (H×W×D mm) | Power supply |
|---|---|---|---|---|---|---|---|
| MR4-350PP C | 4 | 550 ± 8 | 185 ± 5 | 45 kg | 1.5 kW | 750×1000×320 | 1 × 230 VAC |
| MR6-350PP C | 6 | 790 ± 8 | 185 ± 5 | 55 kg | 2.3 kW | 1000×1000×320 | 1 × 230 VAC |
| MR8-350PP C | 8 | 1030 ± 8 | 185 ± 5 | 65 kg | 3.0 kW | 1000×1000×320 | 3 × 400 VAC |
| MR12-350PP C | 12 | 850 ± 8 | 205 ± 5 | 75 kg | 4.5 kW | 1000×1250×320 | 3 × 400 VAC |
| MR16-350PP C | 16 | 1090 ± 8 | 205 ± 5 | 90 kg | 6.0 kW | 1250×1250×420 | 3 × 400 VAC |
| MR20-350PP C | 20 | 1330 ± 8 | 205 ± 5 | 105 kg | 7.5 kW | 1250×1250×420 | 3 × 400 VAC |
| MR24-350PP C | 24 | 1090 ± 8 | 309 ± 5 | 130 kg | 9.0 kW | 1250×1250×420 | 3 × 400 VAC |
| MR28-350PP C | 28 | 1270 ± 8 | 309 ± 5 | 145 kg | 10.5 kW | 1250×1250×420 | 3 × 400 VAC |
| MR32-350PP C | 32 | 1390 ± 8 | 309 ± 5 | 155 kg | 12.0 kW | 1250×1250×420 | 3 × 400 VAC |
| MR36-350PP C | 36 | 1210 ± 8 | 440 ± 5 | 185 kg | 13.5 kW | 2000×1000×500 (floor) | 3 × 400 VAC |
| MR40-350PP C | 40 | 1330 ± 8 | 440 ± 5 | 200 kg | 15.0 kW | 2000×1000×500 (floor) | 3 × 400 VAC |
| MR44-350PP C | 44 | 1210 ± 8 | 540 ± 5 | 225 kg | 16.5 kW | 2000×1000×500 (floor) | 3 × 400 VAC |
| MR48-350PP C | 48 | 1270 ± 8 | 540 ± 5 | 235 kg | 18.0 kW | 2000×1000×500 (floor) | 3 × 400 VAC |
Common specifications
| UV LAMPS & MONITORING | |
|---|---|
| Lamp type | ULTRATHERM low-pressure high-output (LPHO) amalgam, 220 W or 350 W |
| Rated lamp life | 16,000 hours |
| UV monitoring | 220 W models: UV intensity sensor, non-corrosive PTFE · 350 W models: UV intensity sensor, PTFE, 360° |
| Power control | ULTRADOSE automatic dose pacing, 50–100% |
| Approvals | CE [UL / cUL] |
| UV MODULE | |
| Module material | Non-corrosive UV-stabilised polypropylene, machined finish |
| Quartz sleeves | High-purity fused quartz, transmittance > 95% |
| Cleaning | [ULTRAWIPERâ„¢ automatic mechanical wiper with PTFE/fibre rings (electric drive)] |
| Mounting / installation | Free-standing in PP mounting rails · vertical or inclined · single-ended lamp and wiper access |
| Protection | IP55 · flood protection switch · PT100 temperature probe |
| Other | Minor wetted parts FDA-approved PTFE, PVDF, Viton |
| CONTROL CABINET | |
| Control logic / HMI | PLC · 7" ULTRATOUCH touchscreen |
| Communication | Modbus TCP/IP, PROFINET [I-Device] |
| Analogue I/O (4–20 mA) | Flow input, UV dose output, UV intensity output [UVT input] |
| Logging and alarms | Alarms, events and data (UV dose, UV intensity, flow) · actual and target UV dose on HMI · UV dose pre-alarm and alarm |
| External wiring | Remote ON/OFF, safety ON/OFF, system status, alarm |
| Cabinet | 220 W: GFRP [SS304 / SS316] · 350 W up to MR32: non-corrosive GFRP · MR36-350PP C and above: powder-painted steel [316L], floor-standing |
| Protection and cooling | Wall-mounted cabinets: IP65, passive cooling [fan / AC / heat exchanger]; heat exchanger on MR24 to MR32-350PP C · floor-standing cabinets: IP54 [IP65], fan with filter [AC / heat exchanger] |
| Ambient temperature | Wall-mounted cabinets: rated range depends on size, from 0–20 °C to 0–38 °C · floor-standing cabinets: 0–40 °C, non-condensing |
| Power supply | 1 × 230 VAC ±10% +N+PE 50/60 Hz or 3 × 400 VAC ±10% +N+PE 50/60 Hz (see model table) |
| Cable length | 7 m standard [up to 20 m on 220 W models, up to 30 m on 350 W models] |
Pricing on request.
