WEDECO · OPEN-CHANNEL UV DISINFECTION FOR WASTEWATER
WEDECO Duron 6
WEDECO Duron 6 is a vertically inclined open-channel UV disinfection system for secondary and tertiary wastewater at mid-size to large treatment plants, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

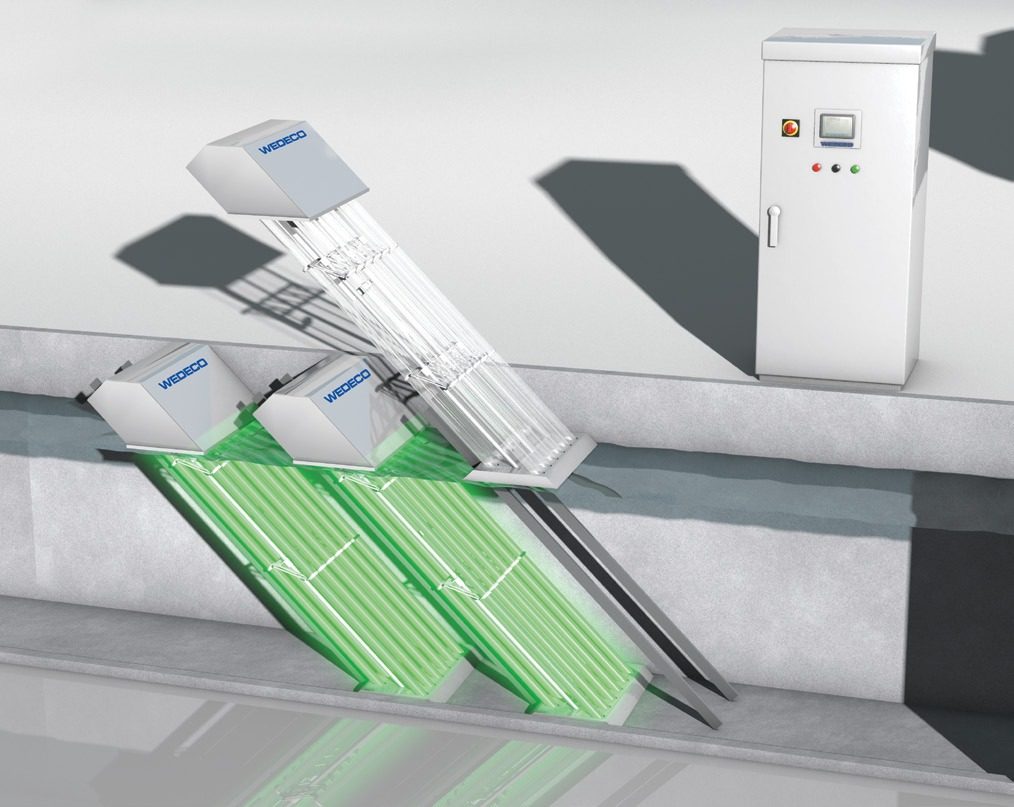

WEDECO Duron 6 is an open-channel UV disinfection system for secondary and tertiary wastewater effluent. Its 600 W Ecoray lamps sit at 45° in modules that install straight into a concrete channel, which keeps the channel shallow and the footprint small. Sensor-based dose control dims the lamps to the dose actually needed, and the integrated lifting mechanism lifts a module out of the channel without a crane. Duron 6 has more than ten years of field experience and is validated to NWRI and the US EPA UVDGM.
Ozone UV Solutions supplies Duron 6 systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Third-party validated to the US EPA UVDGM (2006), the IUVA protocol (2011) and NWRI guidelines (2003/2012), including California Title 22 acceptance

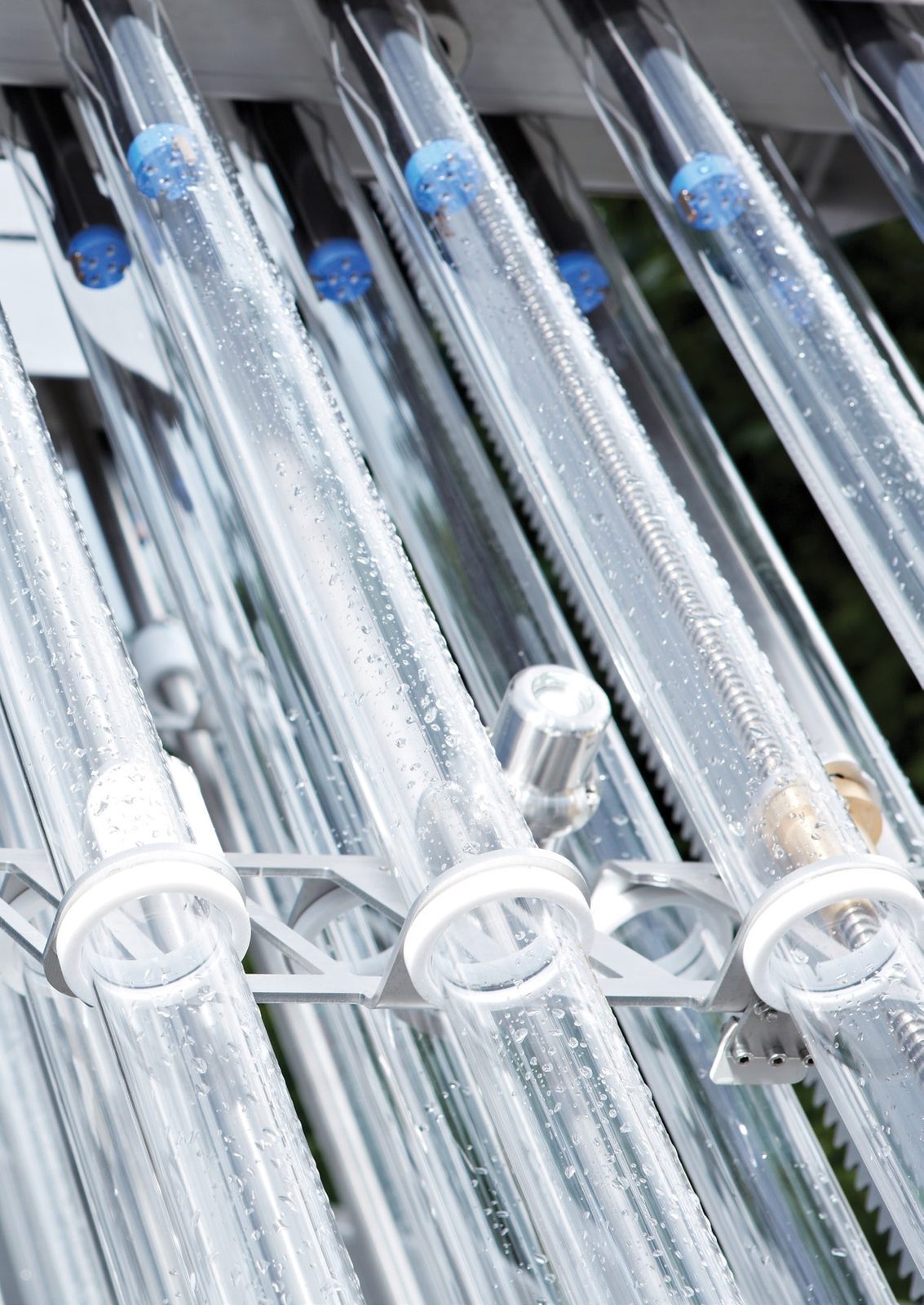

- Ecoray 600 W low-pressure high-output amalgam lamps, 1.4 m long, vertically inclined at 45°
- OptiDose dose control with an ÖNORM-certified UV intensity sensor: lamp power follows flow, UVT and UV intensity

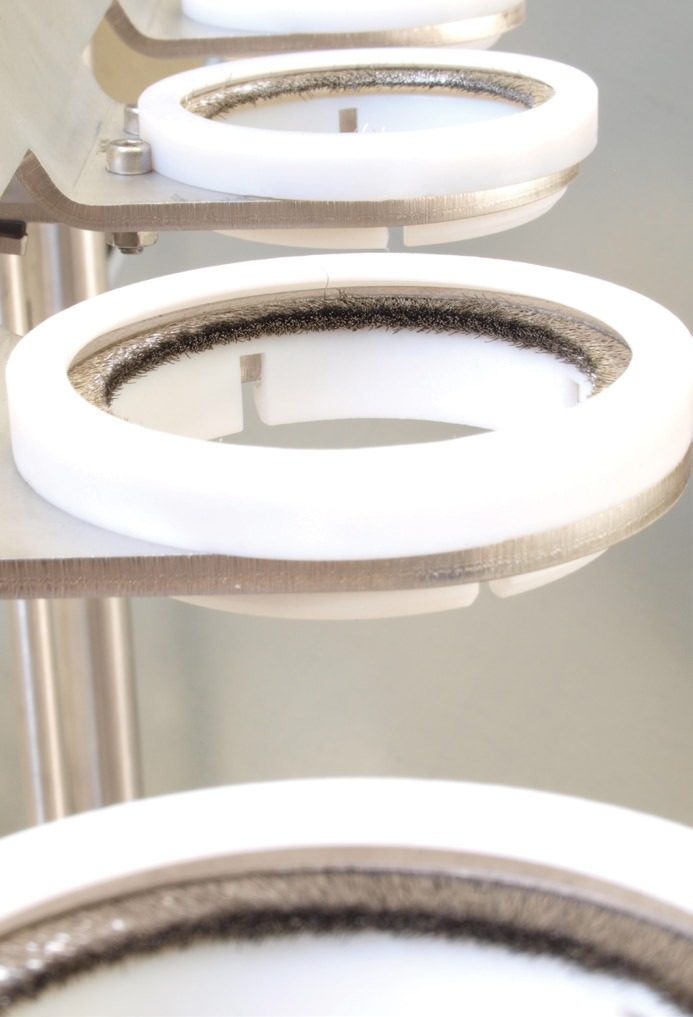

- Automatic, chemical-free OptiWipe sleeve cleaning [OptiBrush stainless-steel brush for high fouling]
- Integrated manual or automatic module lifting, no crane; maintenance-free electric drives, no hydraulic oil
- Electrical components out of the water, in separate cabinets rated for indoor or outdoor installation
Typical applications
- Disinfection of secondary and tertiary municipal wastewater effluent
- Retrofit of existing chlorine contact channels and horizontal UV channels
- Water reuse, including California Title 22 applications
- Combined sewer overflows and aquaculture water
Models and specifications
Duron range at a glance
| Duron 6 | Duron 8 | |
|---|---|---|
| UV lamps | Ecoray low-pressure high-output amalgam, 600 W | Ecoray, 800 W |
| Lamp arrangement | Vertically inclined at 45°, lamp length 1.4 m | Flexible module lamp arrangement, based on the Duron 6 concept |
| Best suited to | Small to medium flows and head loss; shallower channels, including retrofit of horizontal UV channels | Lower UV transmittance or high UV dose (stormwater, reuse); deep channels such as chlorine contact chambers |
| Flow per channel | Set by sizing | Higher than Duron 6; fewer channels for the same flow |
| Third-party validation | NWRI and US EPA UVDGM | NWRI and US EPA UVDGM |
| Module lifting | Manual or automatic, no crane | Integral lifting, manual or automatic, no crane |
| Remote access | – | App-based monitoring and troubleshooting on a mobile device |
| Field record | Over 10 years of installations | Launched 2022 |
What we need to size a Duron system
| Design input | Why it matters |
|---|---|
| Peak and average flow | Sets the number of channels, banks and lamps |
| UV transmittance (UVT) of the effluent | Low UVT needs more UV power per unit of flow |
| Required dose or discharge / reuse standard | Fixes the validated dose the design must deliver |
| Channel width, depth and water level range | Decides the module and bank layout, and whether a retrofit fits |
| Effluent type and fouling potential | Decides the sleeve-cleaning option and design margins |
| Power supply and cabinet location | Indoor or outdoor cabinets, cable routing |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO Duron 6 used for?
Duron 6 disinfects secondary and tertiary wastewater effluent in open concrete channels at mid-size to large treatment plants, including retrofits of chlorine contact channels and horizontal UV channels. It is validated to NWRI and the US EPA UVDGM.
Can you supply lamps and spare parts for WEDECO Duron 6 systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for Duron 6 systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply Duron 6 systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a Duron 6 system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
