WEDECO TAK 55
WEDECO TAK 55 is a modular open-channel UV disinfection system for municipal wastewater and water reuse at treatment plants of any size, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

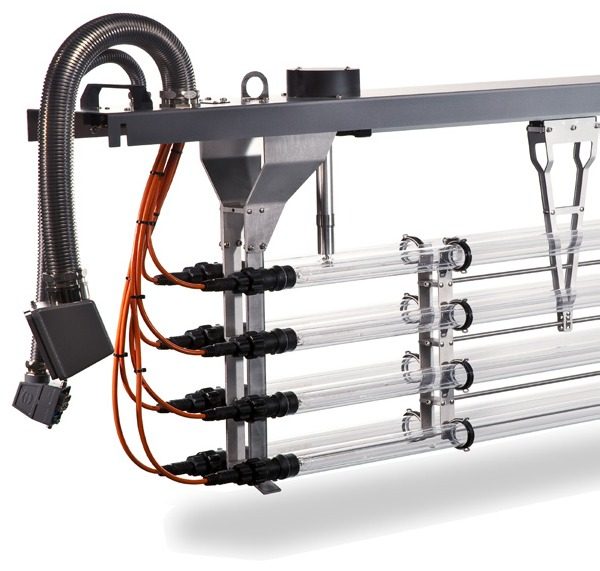

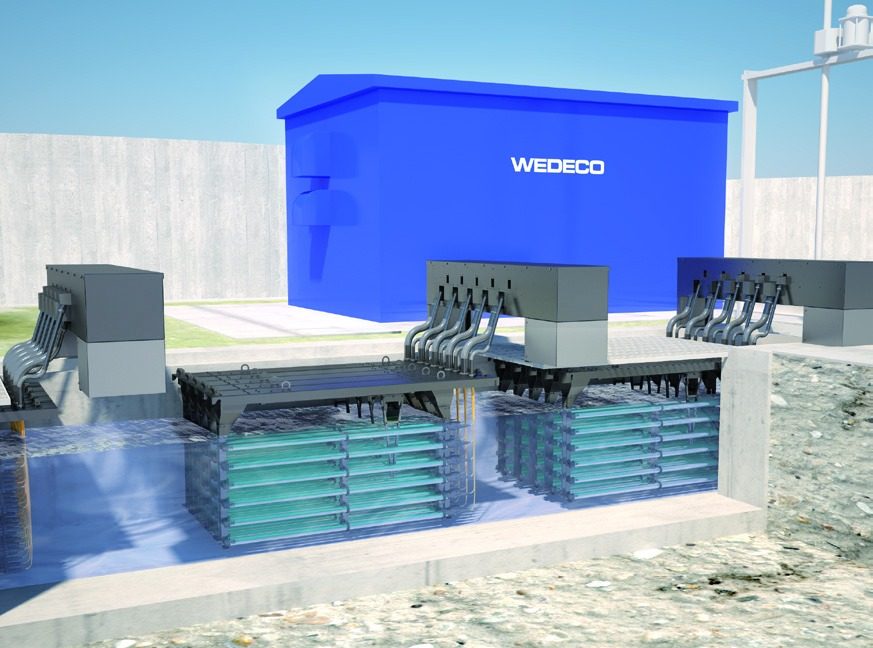

WEDECO TAK 55 is a modular UV system installed in the effluent channel of a wastewater treatment plant. Its lamp modules, with Ecoray lamps arranged parallel to the flow, are built up into banks and channels to suit practically any flow, from small plants to very large ones. The system is validated to both NWRI and the US EPA UVDGM and has California Title 22 approval for water reuse. A validated dose design fits the system to the water quality, operating conditions and discharge limits of each site.
Ozone UV Solutions supplies TAK 55 systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Validated to the US EPA UVDGM (2006), the IUVA protocol (2011) and NWRI guidelines (2003/2012), including California Title 22 acceptance

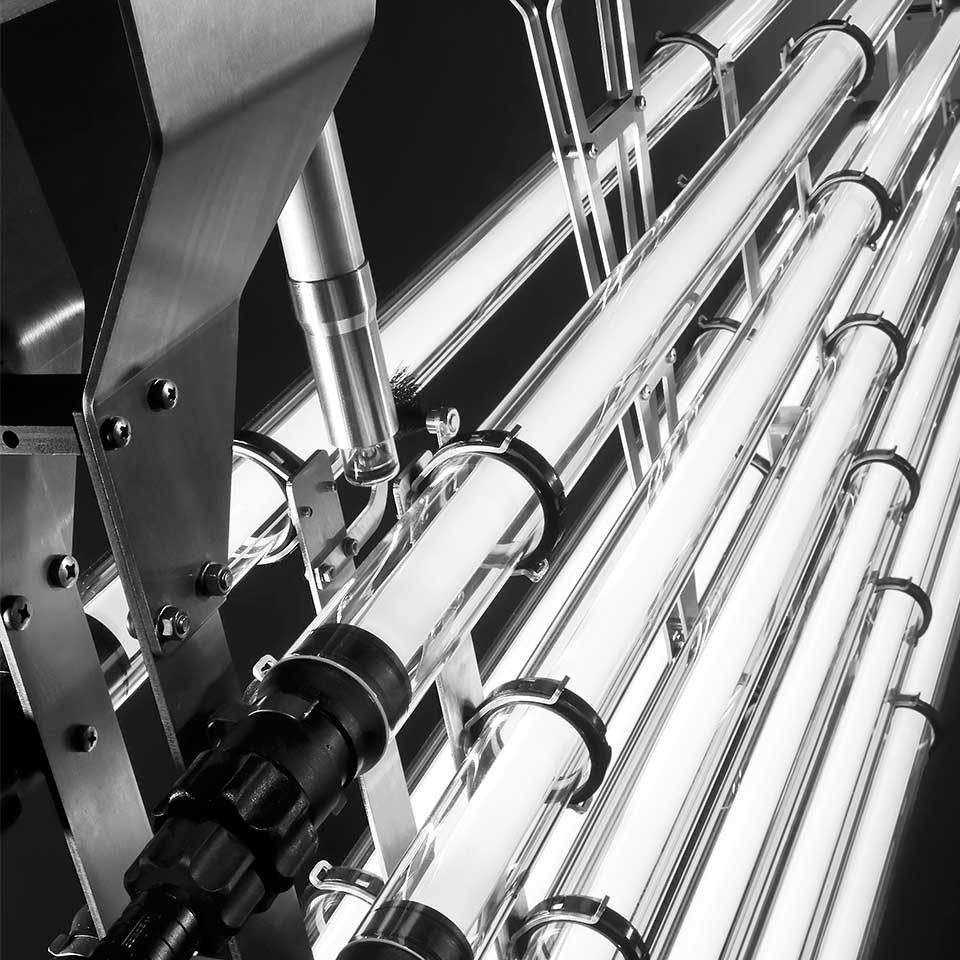

- Ecoray low-pressure high-output amalgam lamps, 50–100% power, rated lamp life up to 14,000 hours
- OptiDose dose control with an ÖNORM-certified UV intensity sensor built into the module
- Fully automatic, chemical-free wiping with PTFE wiper rings; wiping frequency adjustable to the effluent
- Customisable layout: channel size, number of channels and banks, lamps per module and lamp spacing
- Ballasts in separate control cabinets away from the channel; EcoTouch or PLC control with SCADA communication
Typical applications
- Final disinfection of primary, secondary or tertiary municipal wastewater
- Water reuse, including California Title 22 applications
- Large and very large treatment plants, built up channel by channel
- Aquaculture water
Models and specifications
System configuration
| Design element | Options |
|---|---|
| Channels | Number of channels, channel width and depth to suit the site |
| UV banks | Number of banks per channel; standby capacity if required |
| UV modules | Number and arrangement of modules; number of lamps per module |
| Lamp spacing | Several spacing options to suit the water quality |
| Water level control | Motorised penstocks with level sensors, or fixed weirs |

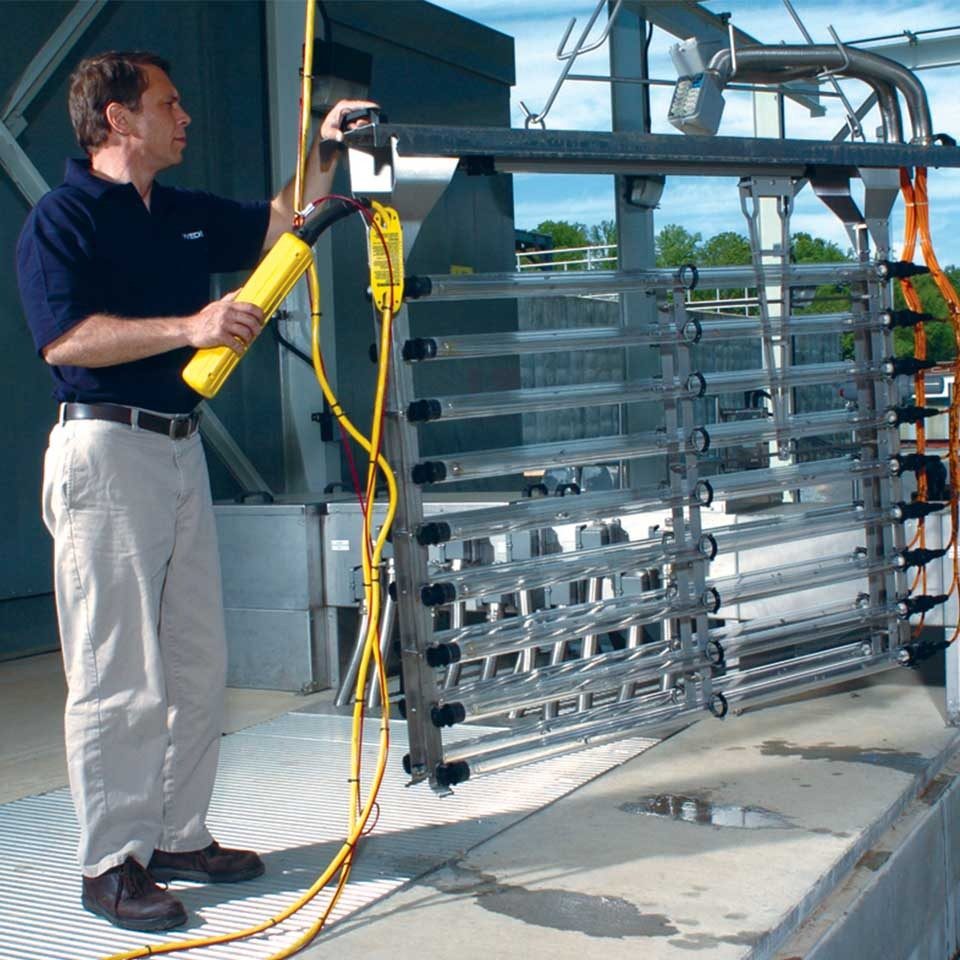

| Module handling | Individual lifting, or [bank magazine for a whole bank] |
| Control cabinets | Separate cabinets for ballasts and controls · [cooling system] |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO TAK 55 used for?
TAK 55 is the final disinfection step for municipal wastewater and reuse water, installed in the effluent channel. Its modular banks scale from about 500 m³/h to very large plants, and it is validated to NWRI and the US EPA UVDGM, with California Title 22 approval.
Can you supply lamps and spare parts for WEDECO TAK 55 systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for TAK 55 systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply TAK 55 systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a TAK 55 system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
