WEDECO · PACKAGED OPEN-CHANNEL UV FOR SMALL TREATMENT PLANTS
WEDECO TAK Smart
WEDECO TAK Smart is a pre-assembled open-channel UV disinfection system for small wastewater treatment plants, with flows up to 1,030 m³/h, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview

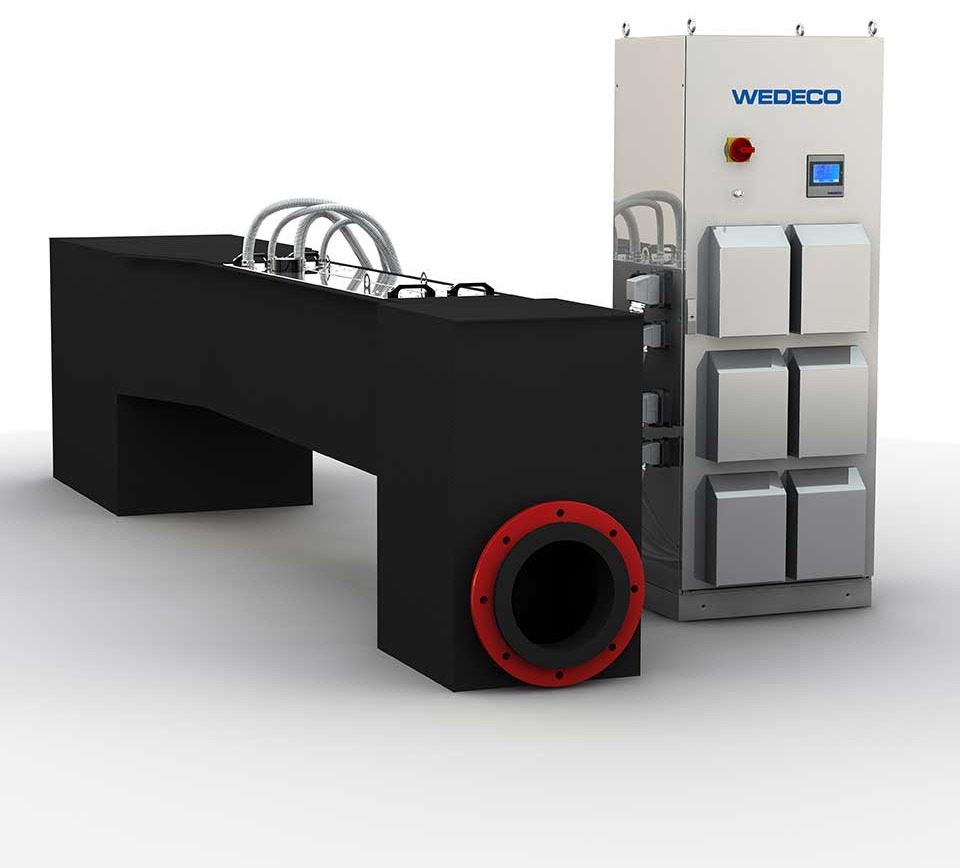

WEDECO TAK Smart brings the TAK 55 lamp configuration to small treatment plants in a ready-to-assemble package. It comes fully pre-assembled with automatic wiping, UV monitoring and controls, either in its own stainless-steel channel with a fixed outlet weir or for installation in a concrete channel. Seven sizes, with one or two UV banks, cover flows up to 1,030 m³/h, from sewer overflows to tertiary wastewater reclamation. The system is validated to the US EPA UVDGM (2006) and NWRI.
Ozone UV Solutions supplies TAK Smart systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Seven sizes from 4 to 32 lamps; single bank, or double bank for duty/duty or duty/standby operation
- Ecoray 315 W low-pressure high-output lamps, third-party tested for ageing and UV-C output
- Validated to the US EPA UVDGM (2006) and NWRI; tested to the IUVA protocol for secondary effluent
- OptiDose dose control with an ÖNORM-certified UV intensity sensor (standard)
- Pneumatic, chemical-free mechanical wiping system
- EcoTouch controller with SCADA connectivity; cabinets for indoor or outdoor use
Typical applications
- Small municipal wastewater treatment plants
- Sewer overflows and tertiary wastewater reclamation
- Water reuse and process water
- Aquaculture water
Models and specifications
Models: TAK Smart 2–1, TAK Smart 3–1, TAK Smart 2–2, TAK Smart 3–2, TAK Smart 4–2, TAK Smart 4–3, TAK Smart 4–4
TAK Smart sizes
| Model | UV lamps | UV modules | Power per lamp | Lamp type | UVT range (1 cm) |
|---|---|---|---|---|---|
| TAK Smart 2–1 | 4 | 1 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 3–1 | 6 | 1 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 2–2 | 8 | 2 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 3–2 | 12 | 2 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 4–2 | 16 | 2 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 4–3 | 24 | 3 | 315 W | Ecoray LPHO | 40–80% |
| TAK Smart 4–4 | 32 | 4 | 315 W | Ecoray LPHO | 40–80% |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO TAK Smart used for?
TAK Smart disinfects wastewater at small treatment plants, from sewer overflows to tertiary reclamation, as well as process and aquaculture water. It comes pre-assembled in seven sizes, in its own stainless-steel channel or for a concrete channel.
Can you supply lamps and spare parts for WEDECO TAK Smart systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for TAK Smart systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply TAK Smart systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a TAK Smart system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
