WEDECO · OPEN-CHANNEL UV FOR LOW-UVT WASTEWATER, STORMWATER AND REUSE
WEDECO Duron 8
WEDECO Duron 8 is a high-power open-channel UV disinfection system for low-UVT wastewater, stormwater and water reuse, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview
WEDECO Duron 8, launched in 2022, is an open-channel UV disinfection system built on the Duron 6 concept and optimised for wastewater with lower UV transmittance or a high dose requirement, such as stormwater treatment and water reuse. Its 800 W Ecoray lamps put more UV power into each module, so fewer lamps and fewer channels handle the same flow. It suits deep channels, which makes it a strong option for converting chlorine contact basins to chemical-free UV disinfection.
Ozone UV Solutions supplies Duron 8 systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features

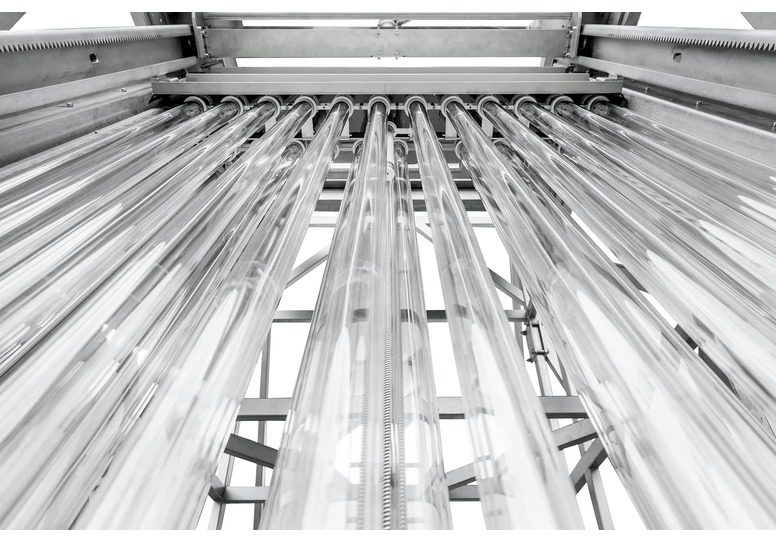

- Ecoray 800 W UV lamps and ballasts in a flexible module lamp arrangement
- High flow capacity per channel, for fewer channels and lower installation cost
- Third-party validated to the US EPA UVDGM and NWRI, with built-in redundancy
- Automatic, low-maintenance, chemical-free sleeve cleaning
- Integral manual or automatic module lifting, no crane; maintenance-free electric drives
- App-based remote connectivity for monitoring and troubleshooting on a mobile device
Typical applications
- Wastewater effluent with low UV transmittance
- Stormwater treatment
- Water reuse and other high-dose applications
- Conversion of chlorine contact basins and other deep channels to UV
Models and specifications
Duron range at a glance
| Duron 6 | Duron 8 | |
|---|---|---|
| UV lamps | Ecoray low-pressure high-output amalgam, 600 W | Ecoray, 800 W |
| Lamp arrangement | Vertically inclined at 45°, lamp length 1.4 m | Flexible module lamp arrangement, based on the Duron 6 concept |
| Best suited to | Small to medium flows and head loss; shallower channels, including retrofit of horizontal UV channels | Lower UV transmittance or high UV dose (stormwater, reuse); deep channels such as chlorine contact chambers |
| Flow per channel | Set by sizing | Higher than Duron 6; fewer channels for the same flow |
| Third-party validation | NWRI and US EPA UVDGM | NWRI and US EPA UVDGM |
| Module lifting | Manual or automatic, no crane | Integral lifting, manual or automatic, no crane |
| Remote access | – | App-based monitoring and troubleshooting on a mobile device |
| Field record | Over 10 years of installations | Launched 2022 |
What we need to size a Duron system
| Design input | Why it matters |
|---|---|
| Peak and average flow | Sets the number of channels, banks and lamps |
| UV transmittance (UVT) of the effluent | Low UVT needs more UV power per unit of flow |
| Required dose or discharge / reuse standard | Fixes the validated dose the design must deliver |
| Channel width, depth and water level range | Decides the module and bank layout, and whether a retrofit fits |
| Effluent type and fouling potential | Decides the sleeve-cleaning option and design margins |
| Power supply and cabinet location | Indoor or outdoor cabinets, cable routing |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO Duron 8 used for?
Duron 8 disinfects wastewater with low UV transmittance or a high dose requirement, such as stormwater and water reuse. It suits deep channels, including chlorine contact basins converted to UV, and is validated to the US EPA UVDGM and NWRI.
Can you supply lamps and spare parts for WEDECO Duron 8 systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for Duron 8 systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply Duron 8 systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service a Duron 8 system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
Related WEDECO series

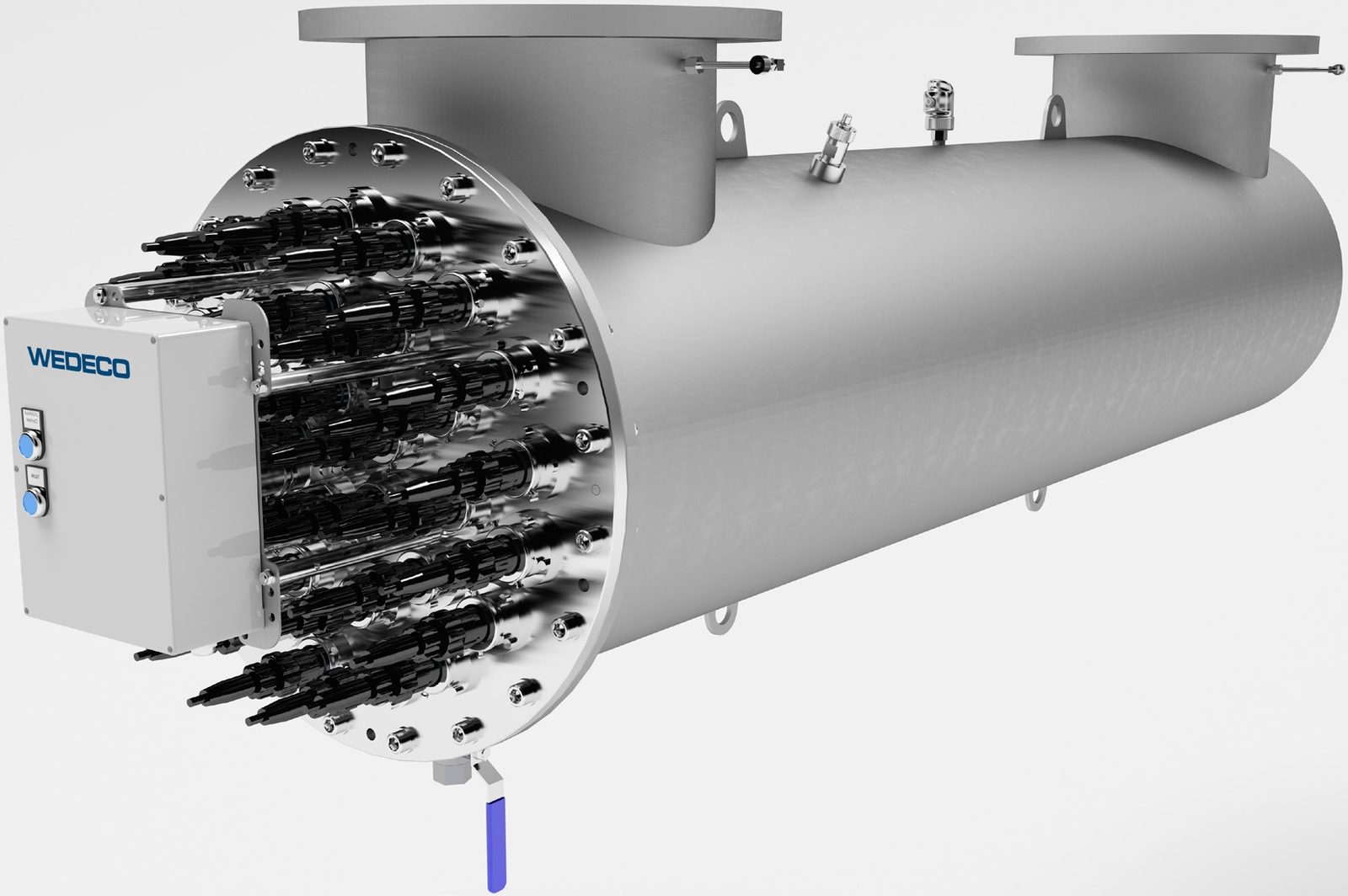

WEDECO LBX Series
Closed-vessel UV systems for pressurised wastewater, reuse water, surface water and other liquids with low UV transmittance.
View series

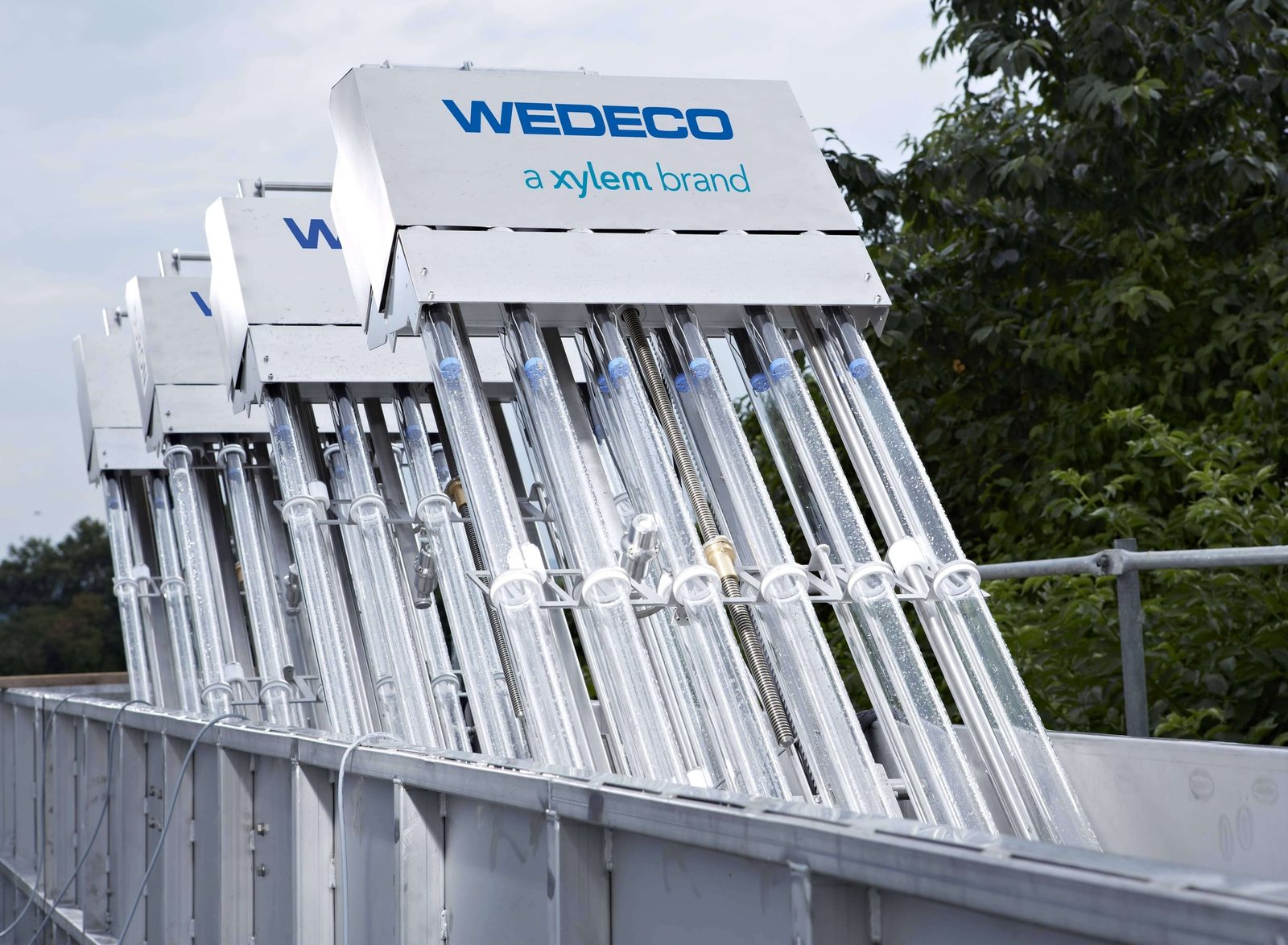

WEDECO Duron 6
Vertically inclined open-channel UV system for mid-size to large wastewater treatment plants, new builds and retrofits of existing chlorine contact channels.
View series

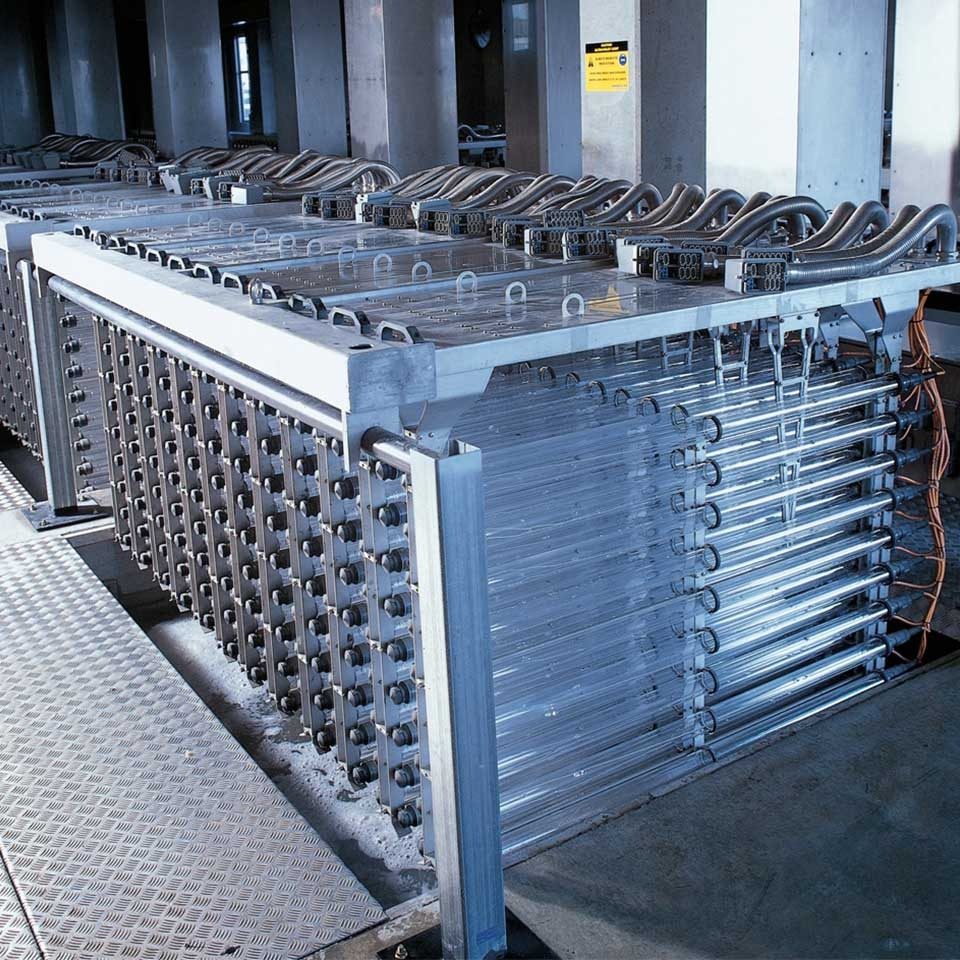

WEDECO TAK 55
Modular open-channel UV system for municipal wastewater and reuse, from 500 m³/h to very large plants with thousands of lamps.
View series

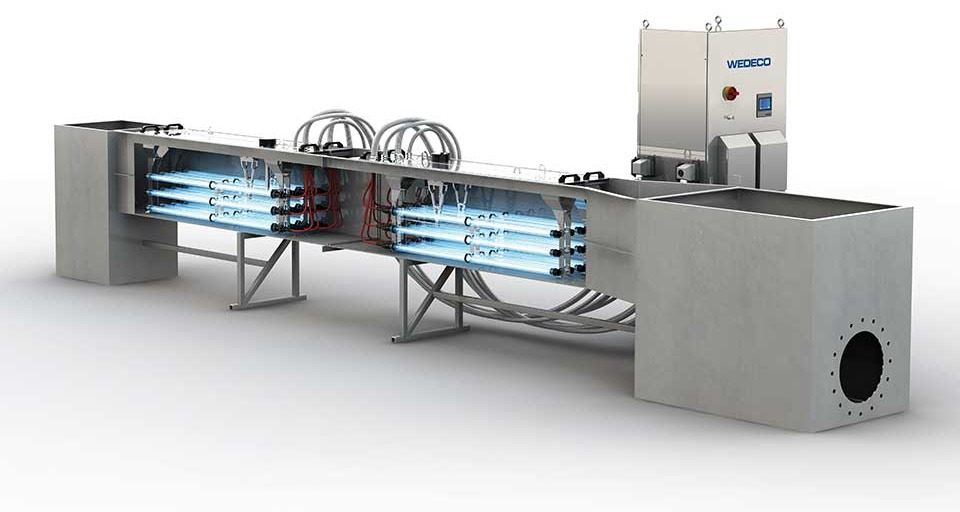

WEDECO TAK Smart
