WEDECO · UV DISINFECTION FOR WASTEWATER, REUSE AND LOW-UVT WATER
WEDECO LBX Series
WEDECO LBX is a closed-vessel UV disinfection system for pressurised wastewater, water reuse, surface water and other low-UVT water, supplied by Ozone UV Solutions in Australia, with worldwide shipping.
Pricing on request.
Overview
WEDECO LBX is a closed-vessel UV range for water that is under pressure and has low UV transmittance: treated wastewater, water for reuse, surface water and industrial process water. It is the choice wherever a pipe-mounted UV system is preferred to an open channel. Bioassay validation to the US EPA UVDGM and NWRI guidelines covers a wide UVT range and target organisms including adenovirus, meeting California Title 22 water reuse requirements.
Ozone UV Solutions supplies LBX systems as an authorised WEDECO reseller and supports them locally: sizing, installation, commissioning, servicing, lamps and spare parts.
Key features
- Performance validated by bioassay to USEPA UVDGM (2006), IUVA protocol (2011) and NWRI guidelines (2003/2012) on validated models
- Suitable for water with UV transmittance from 20 to 98%
- Ecoray low-pressure high-output amalgam lamps, 315 W, with a rated lamp life of 14,000 hours
- OptiDose closed-loop dose pacing with an ÖNORM-compliant UV intensity sensor [variable power]
- Chemical-free automatic mechanical wiping [optional]

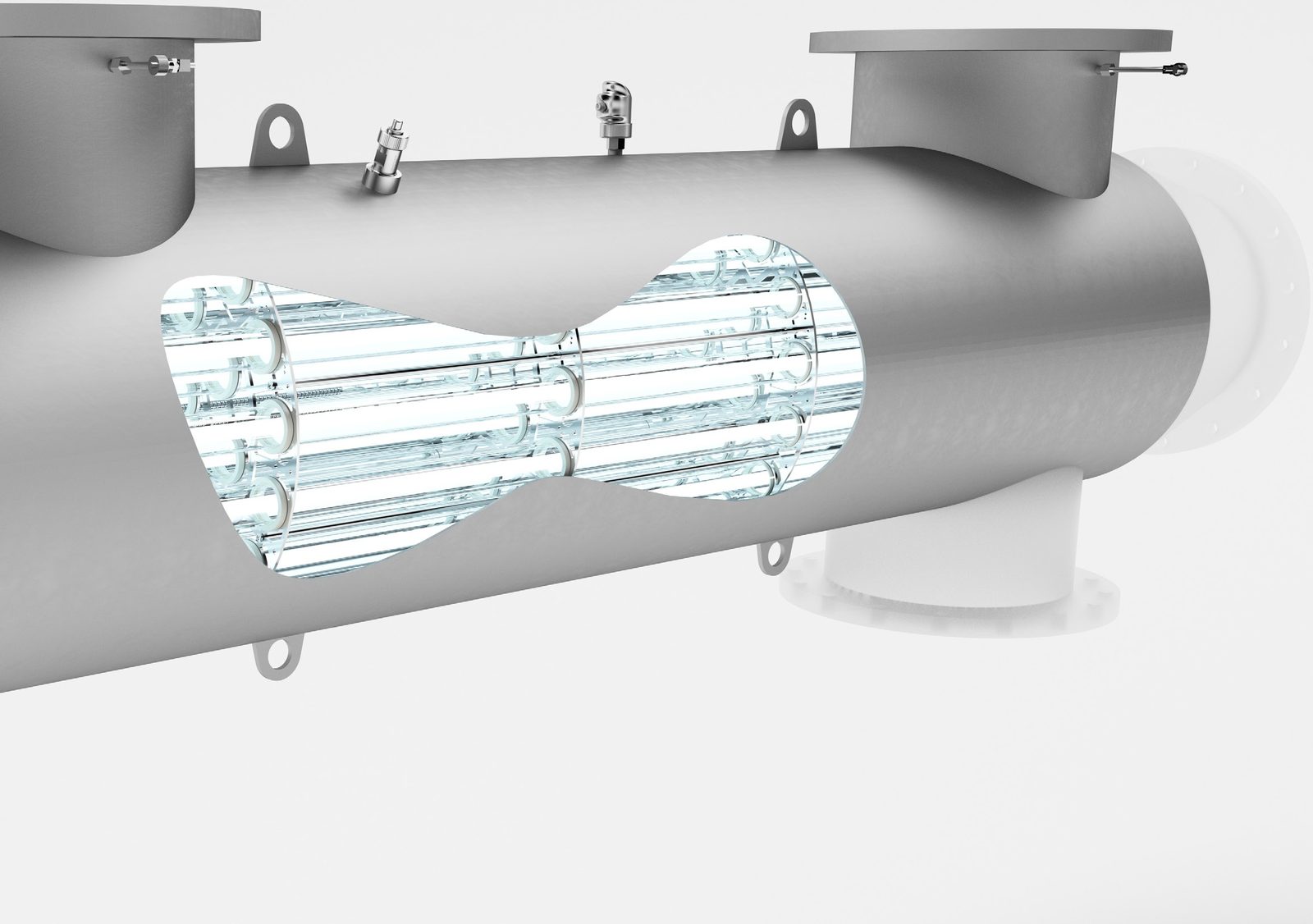

- U, Z or L-shaped reactors with DN or ANSI flanges; patented OptiCone flow diverter on L-shaped units
Typical applications

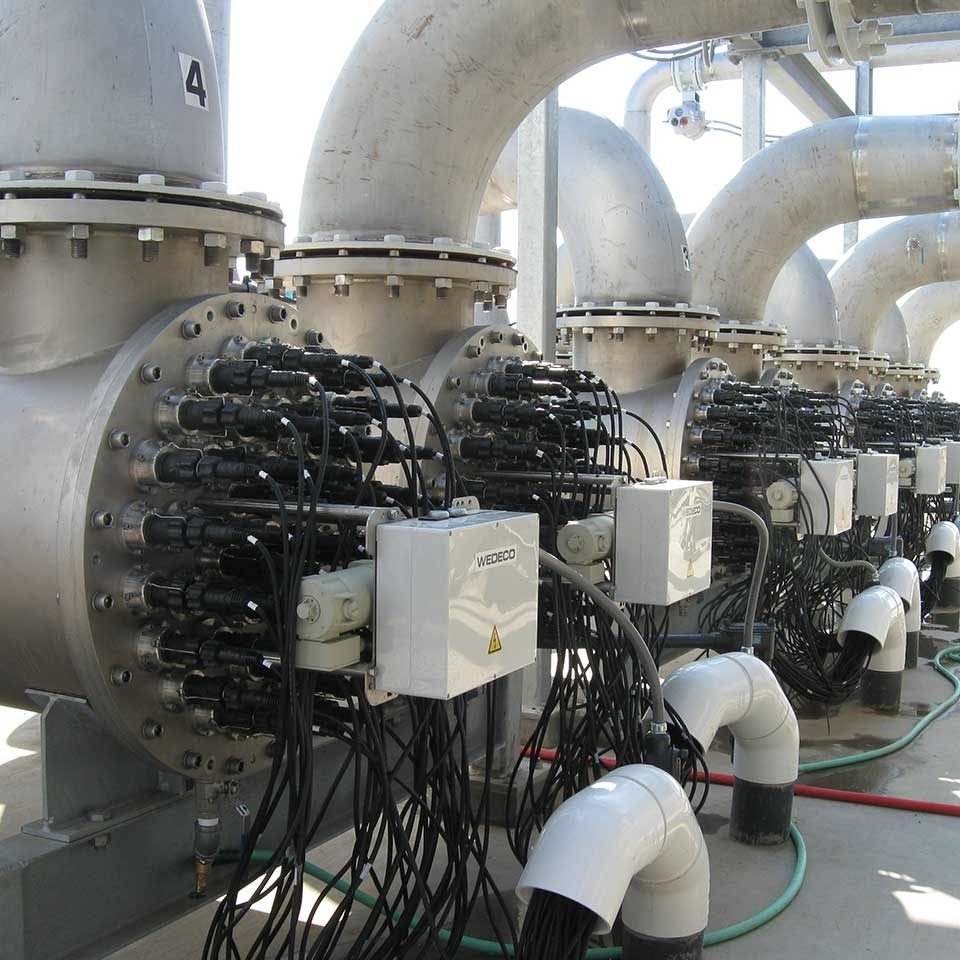

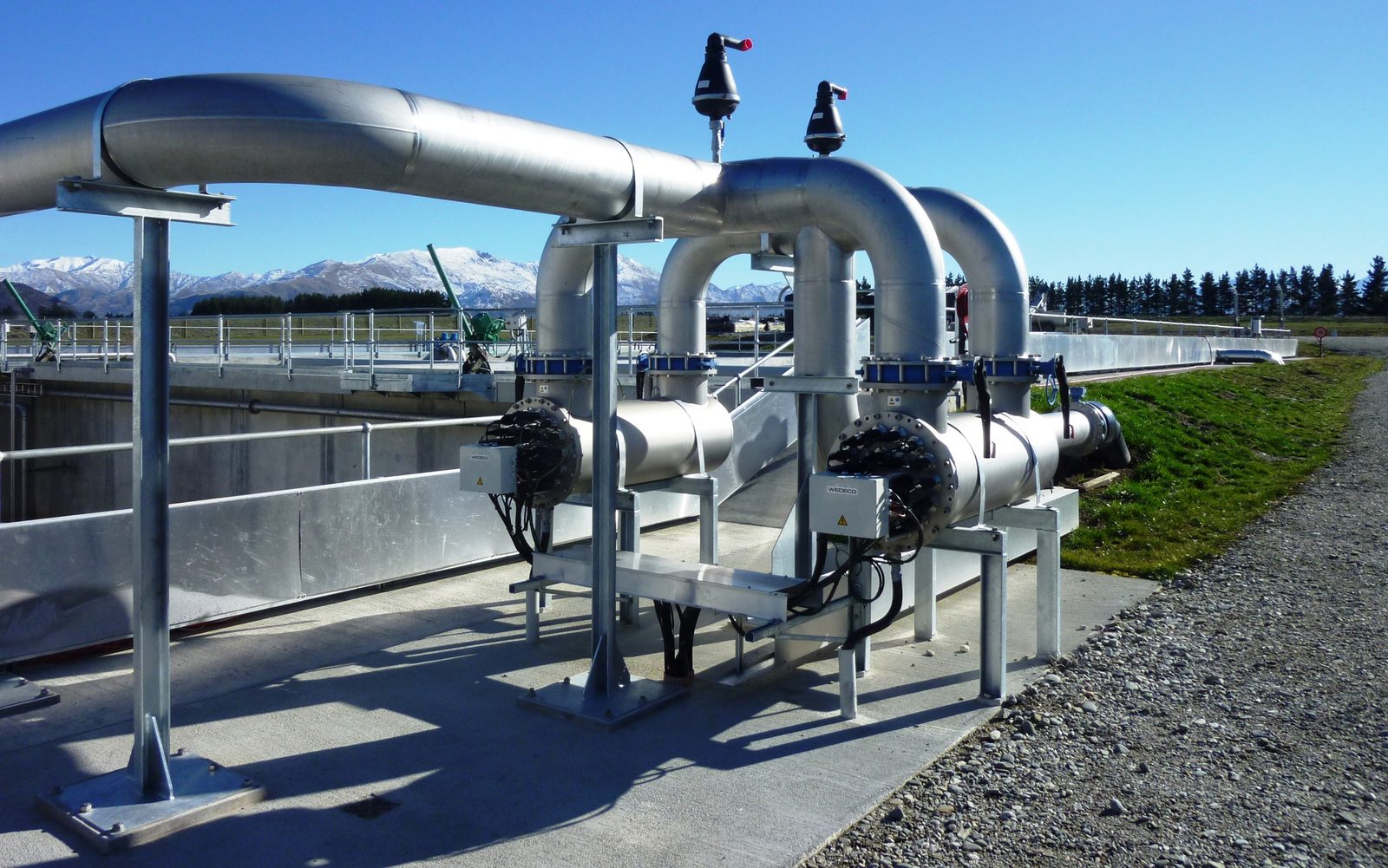

- Disinfection of municipal and industrial wastewater in pressurised lines
- Water reuse, including California Title 22 applications
- Surface water, drinking water and industrial process water with low UV transmittance
Models and specifications
Models: LBX 10, LBX 20, LBX 33, LBX 90e, LBX 120e, LBX 200e, LBX 400e, LBX 550e, LBX 850e, LBX 1000e, LBX 1500e
LBX models
| Model | Max. flow (m³/h)* | UV lamps | Power per lamp | Flange | Reactor shape | Reactor length (mm) | Max. pressure | Power (approx.) | Bioassay validated** |
|---|---|---|---|---|---|---|---|---|---|
| LBX 10 | 10.2 | 3 | 80 W | DN50 | U or Z | 930 | 16 bar | 0.34 kW | – |
| LBX 20 | 21.7 | 6 | 80 W | DN80 | U or Z | 930 | 16 bar | 0.60 kW | – |
| LBX 33 | 29.3 | 8 | 80 W | DN80 | U or Z | 930 | 16 bar | 0.76 kW | – |
| LBX 90e | 83 | 4 | 315 W | DN150 / 6″ | U or Z | 1,530 | 16 bar | 1.72 kW | Yes |
| LBX 120e | 127 | 6 | 315 W | DN150 / 6″ | U or Z | 1,530 | 10 bar | 2.38 kW | – |
| LBX 200e | 216 | 10 | 315 W | DN200 / 8″ | U or Z | 1,540 | 10 bar | 3.70 kW | – |
| LBX 400e | 347 | 16 | 315 W | DN250 / 10″ | U or Z | 1,540 | 10 bar | 5.69 kW | Yes |
| LBX 550e | 536 | 24 | 315 W | DN300 / 12″ | U or Z | 1,540 | 10 bar | 8.33 kW | – |
| LBX 850e | 717 | 32 | 315 W | DN400 / 16″ | L | 2,400 | 10 bar | 11.19 kW | Yes |
| LBX 1000e | 911 | 40 | 315 W | DN400 / 16″ | U or Z | 2,400 | 10 bar | 13.84 kW | Yes |
| LBX 1500e | 1,346 | 60 | 315 W | DN500 / 20″ | L | 2,400 | 10 bar | 20.57 kW | Yes |
Genuine WEDECO lamps & spare parts
Send us your model and system details and we will identify the right genuine parts.
Request a QuoteFrequently asked questions
What is the WEDECO LBX used for?
LBX systems disinfect pressurised wastewater, water for reuse (including California Title 22 applications), surface water and industrial process water with UV transmittance from 20 to 98%.
Can you supply lamps and spare parts for WEDECO LBX systems?
Yes. Ozone UV Solutions supplies genuine WEDECO lamps, spare parts and consumables for LBX systems as an authorised WEDECO reseller. Part numbers are not published, so send us the model and system details and we will identify the right parts.
Do you deliver within Australia and overseas?
Yes. We supply LBX systems and parts across Australia and ship worldwide.
Can Ozone UV Solutions install and service an LBX system?
Yes. We handle sizing, installation, commissioning, servicing, lamp changes and spare parts, backed by a 24/7 technical support line on +61 422 081 913.
Pricing on request.
Request a quote
Tell us about your water, flow and disinfection targets, or call our 24/7 technical support line.
Replaces WEDECO BX – we also service and supply parts for existing BX systems
